Toyota Ist

2002-04 → 2007-07 · chassis NCP6# · catalogue 117110 · Japan

Supported model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

3 part groups · 2 illustrations

Illustrations

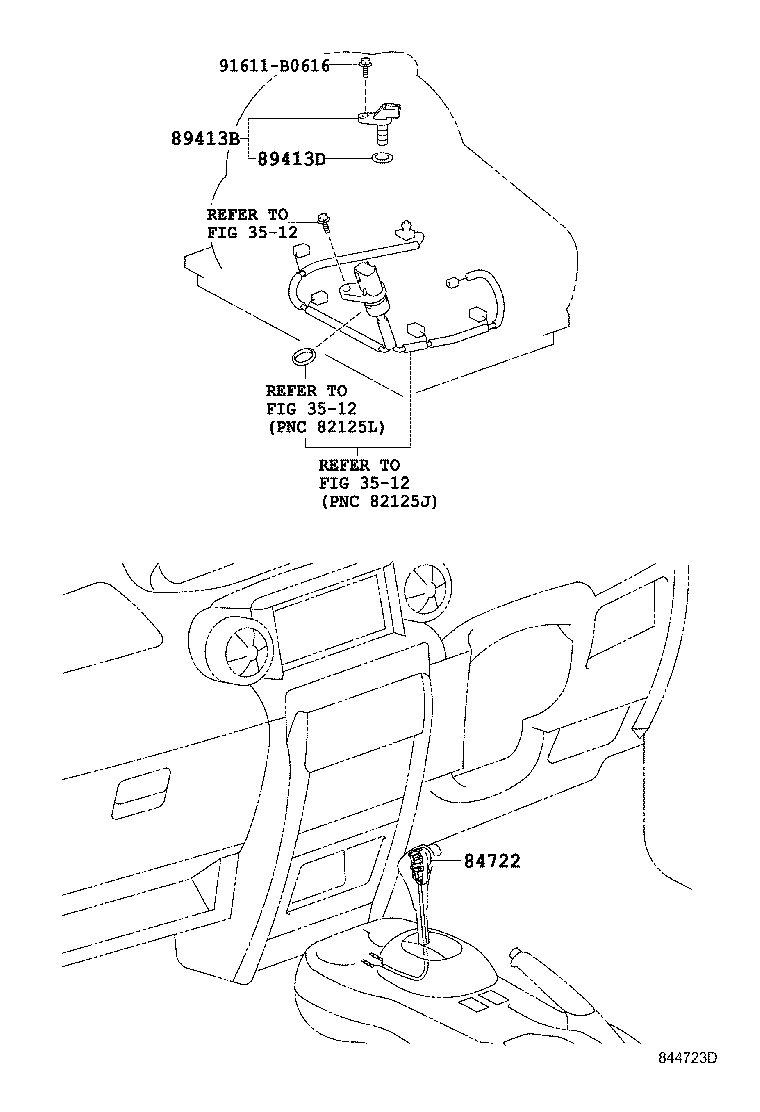

Figure 844722C 844722C 2002-04 → — Figure 844723D 844723D 2002-04 → —

Part groups

PNCDescription
84722 Switch, Transmission Control
89413B Sensor, Transmission Revolution
89413D Ring, O(FOR TRANSMISSION REVOLUTION SENSOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
