Toyota Ist
2002-04 → 2007-07 · chassis NCP6# · catalogue 117110 · Japan
Supported model
Data version 2008-01
Wireless Door Lock

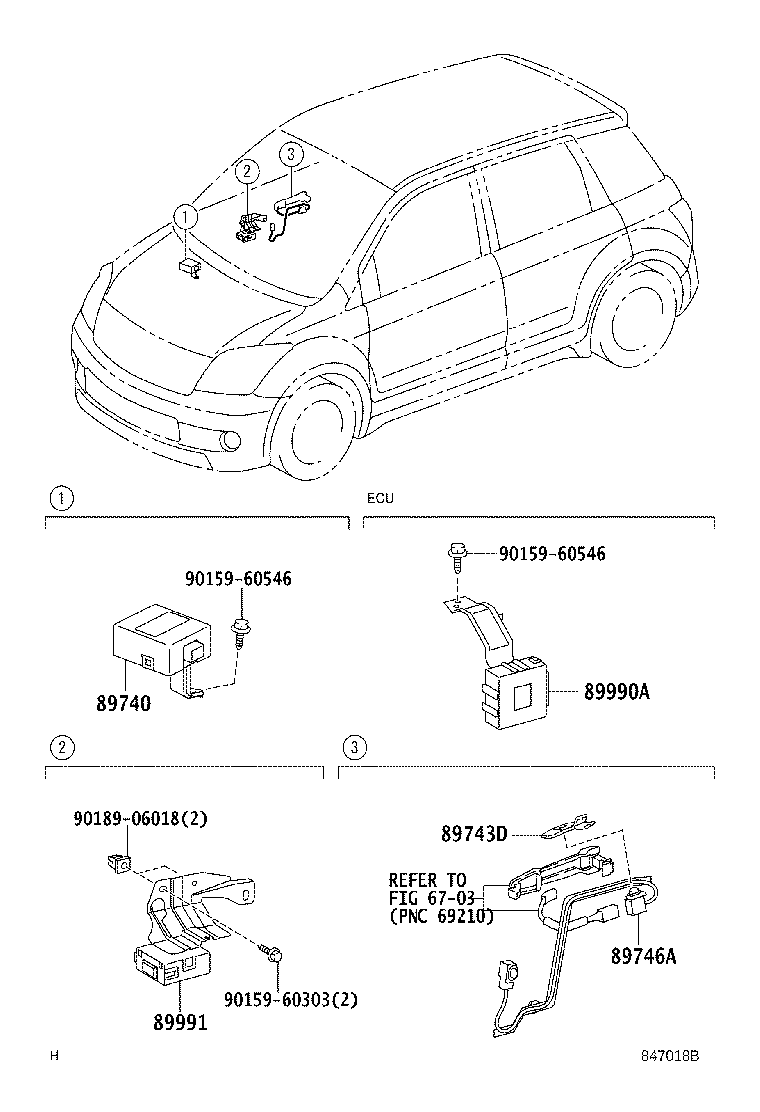

6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 89740 | Computer Assy, Door Control W/Receiver |
| 89741 | Receiver, Door Control |
| 89743D | Bracket, Electrical Key Wire Harness |
| 89746A | Harness, Electrical Key Wire |
| 89990A | Computer Assy, Smart Key |
| 89991 | Oscillator, Door Electrical Key |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
