Toyota Ist

2002-04 → 2007-07 · chassis NCP6# · catalogue 117110 · Japan

Supported model Data version 2008-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Wiper

7 part groups · 2 illustrations

Illustrations

Figure 851038F

851038F 2002-04 → 2003-04

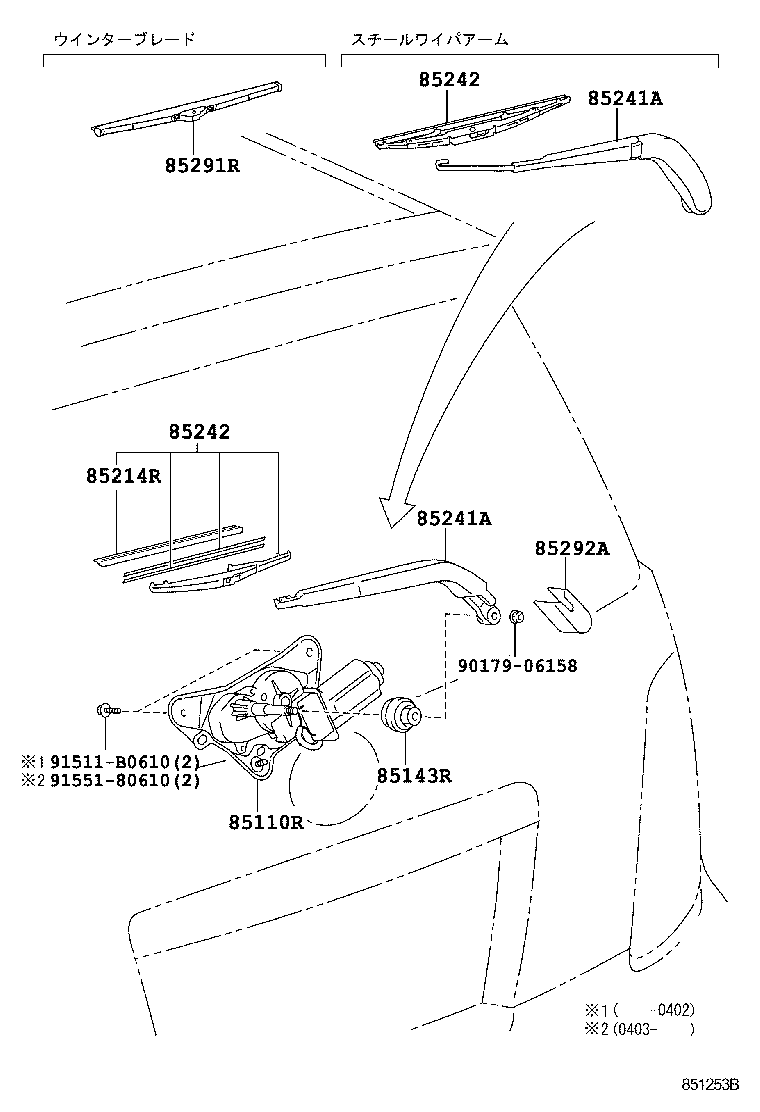

Figure 851253B

851253B 2003-04 → —

Part groups

PNC	Description
85110R	Motor Assy, Rear Wiper
85143R	Grommet, Rear Wiper Motor
85214R	Rubber, Rear Wiper
85241A	Arm, Rear Wiper
85242	Blade, RR Wiper
85291R	Blade,Rear Wiper, Winter
85292A	Cap, Rear Wiper Arm Head

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
