Toyota Ist

2002-04 → 2007-07 · chassis NCP6# · catalogue 117110 · Japan

Supported model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

33 part groups · 4 illustrations

Illustrations

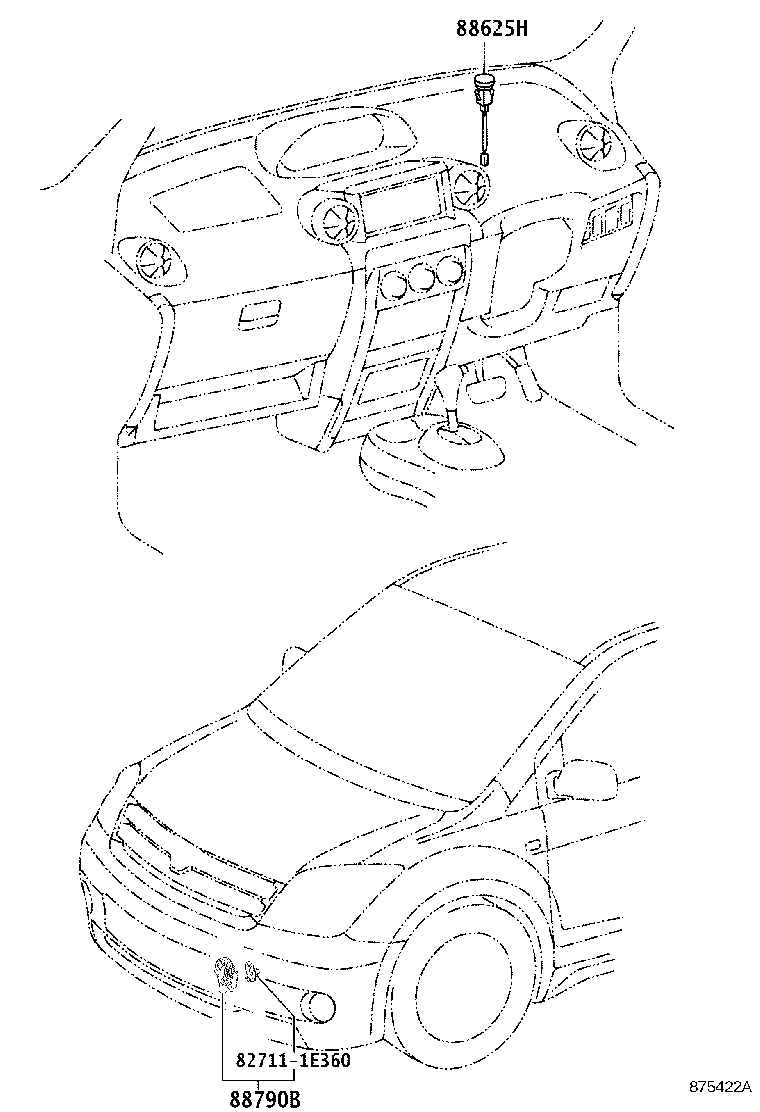

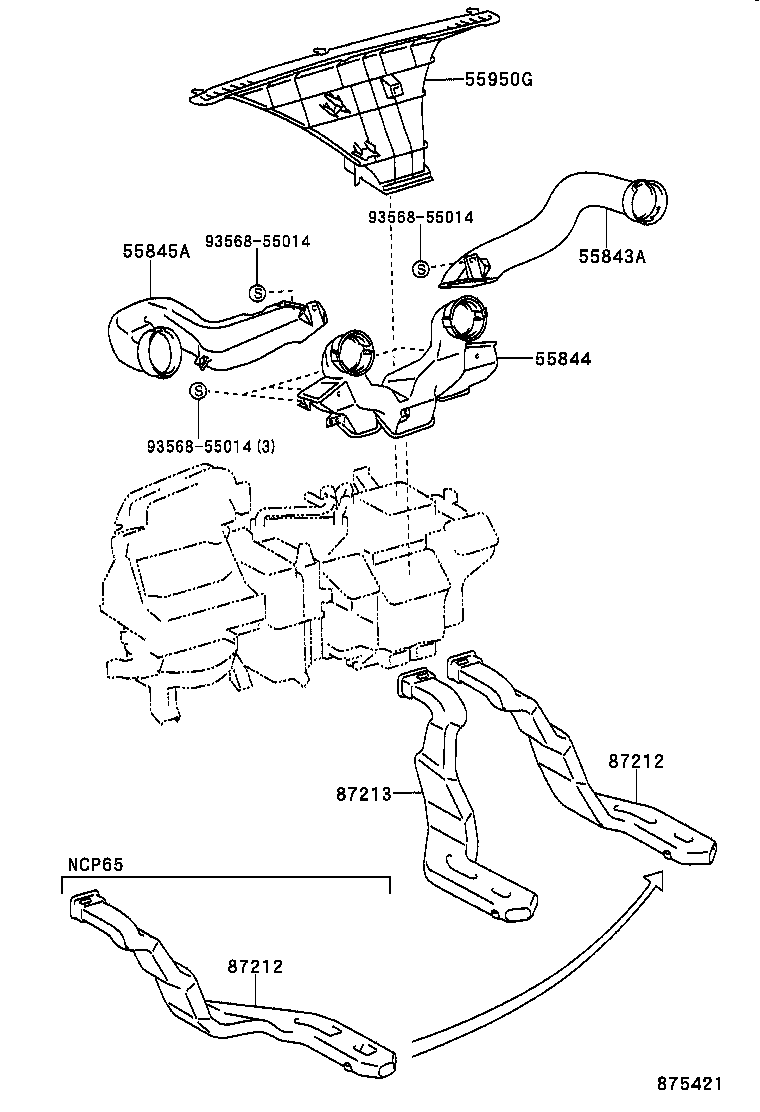

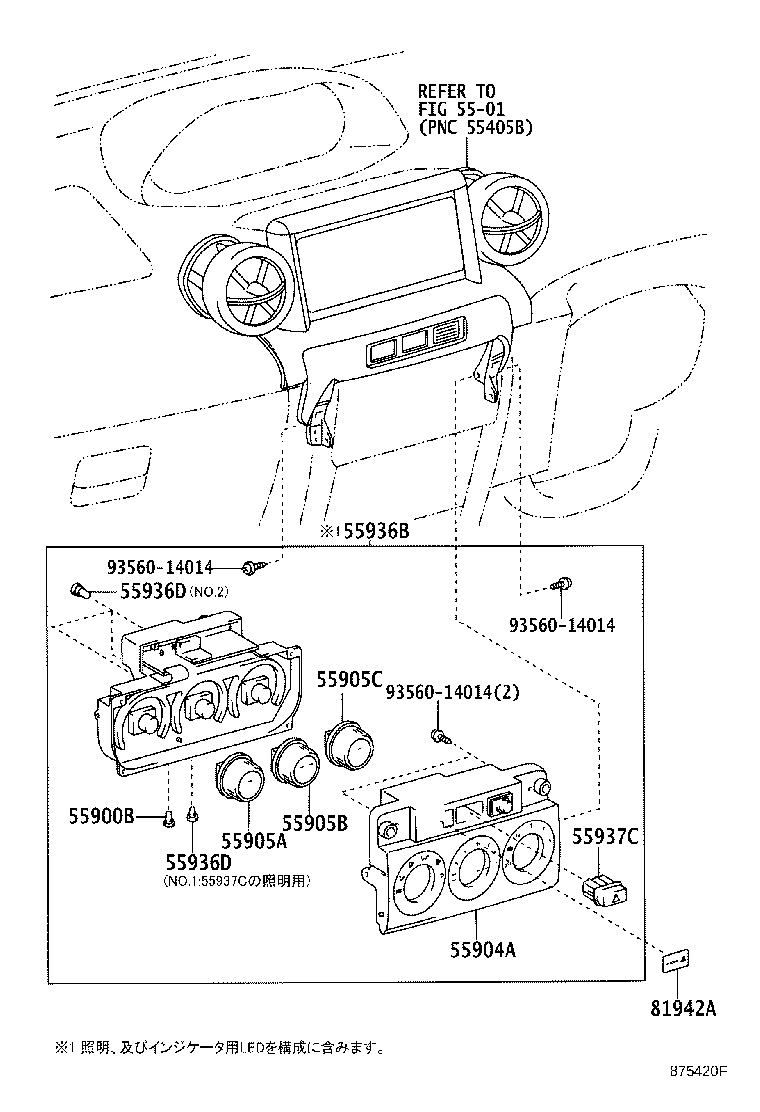

Figure 875419F 875419F 2002-04 → — Figure 875420F 875420F 2002-04 → — Figure 875421 875421 2002-04 → — Figure 875422A 875422A 2002-04 → —

Part groups

PNCDescription
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55900B Bulb, Air Conditioner Control
55904A Housing Sub-assy, Heater Control
55905A Knob, Heater Control
55905B Knob, Heater Control, NO.2
55905C Knob, Heater Control, NO.3
55906A Cable Sub-assy, Defroster Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55918A Lever, Air Inlet Damper Control
55936B Switch, Center Cluster Module
55936D Blub, Center Cluster Module Switch
55937C Knob, Center Cluster Module
55937H Knob, Center Cluster Module, NO.5
55937J Knob, Center Cluster Module, NO.6
55937K Knob, Center Cluster Module, NO.7
55950G Nozzle Assy, Defroster
81940D Lens Assy, Heater Control
81942A Sheet, Heater Control Name, NO.1
81942B Sheet, Heater Control Name, NO.2
81942H Sheet, Heater Control Name, NO.3
81942J Sheet, Heater Control Name, NO.4
81942K Sheet, Heater Control Name, NO.5
81950C Lens Assy, Center Cluster Module Indicator
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87290E Switch Assy, Heater
88601H Bulb, Indicator Lamp
88625H Thermistor, Cooler (SOLAR SENSOR)
88790B Thermistor Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
