Toyota Ist

2007-07 → 2016-04 · chassis NCP11#,ZSP110 · catalogue 117120 · Japan

Supported model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

16 part groups · 3 illustrations

Illustrations

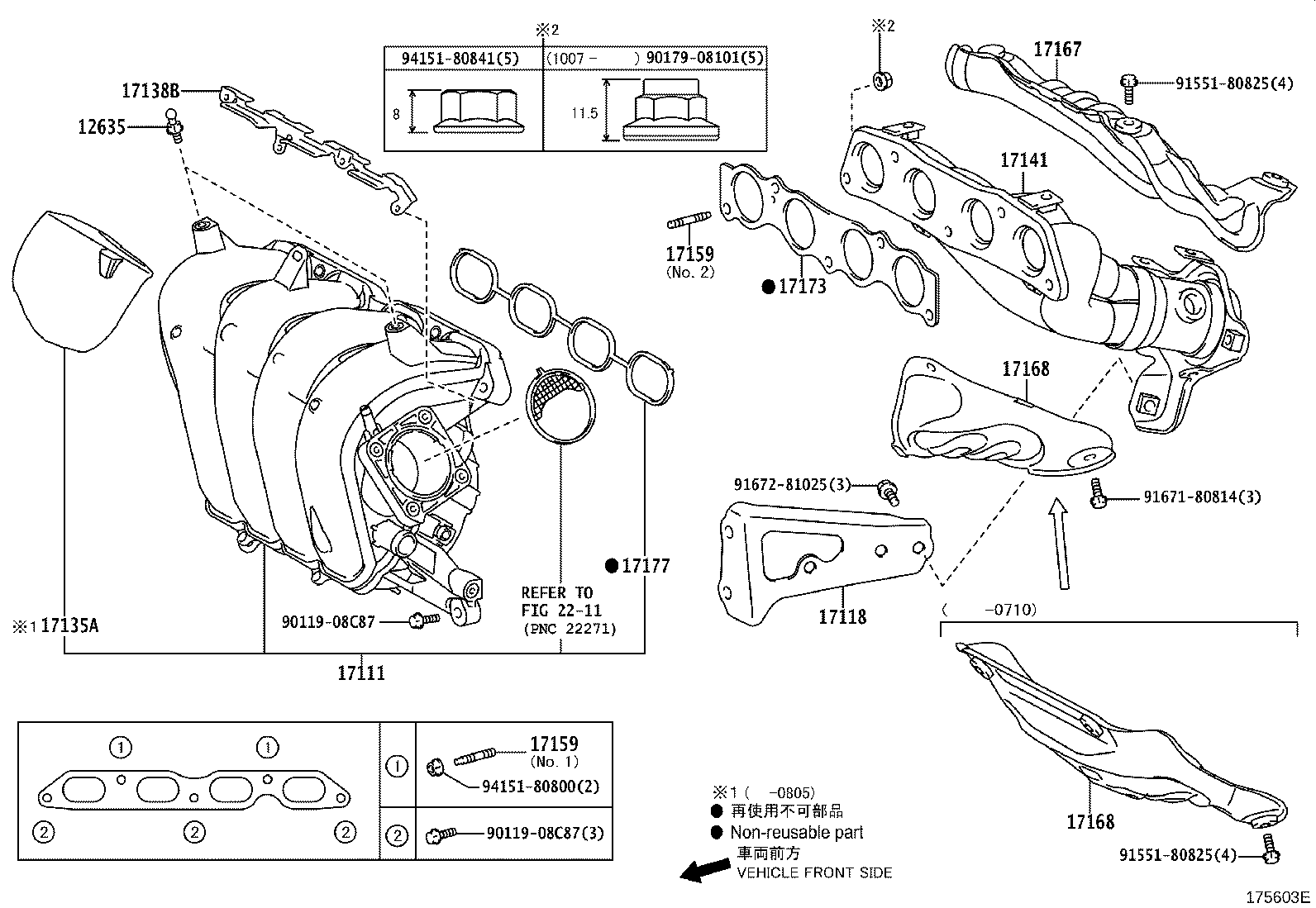

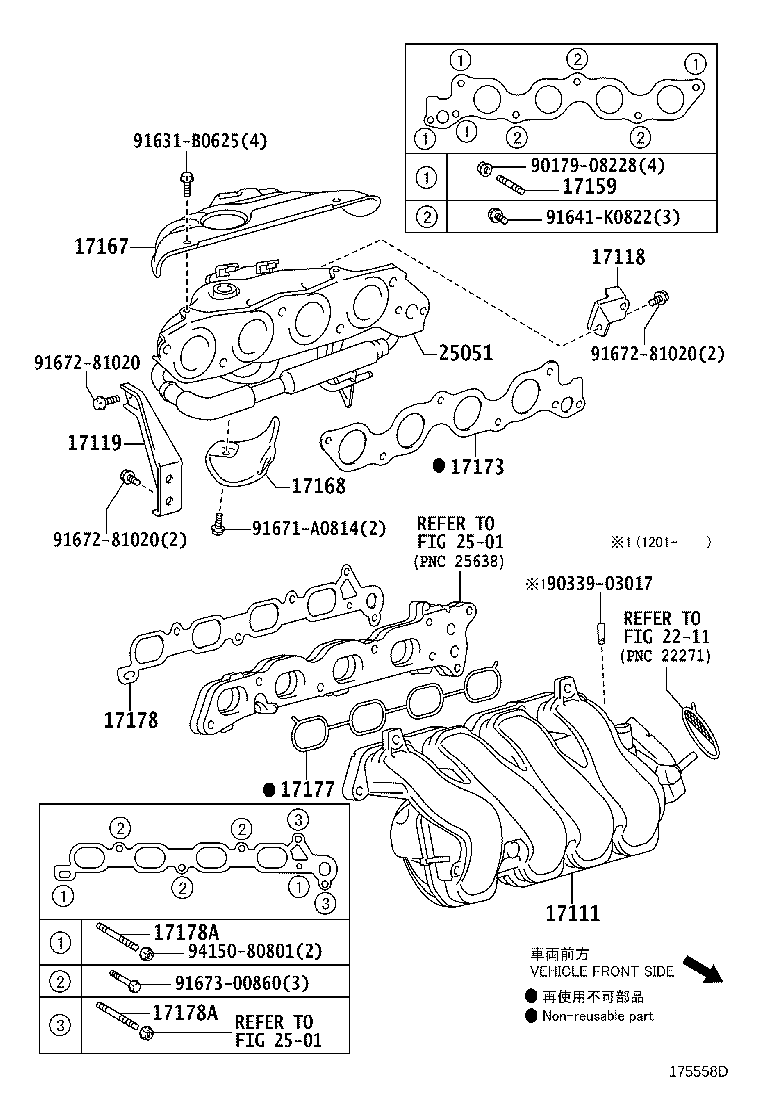

Figure 175557D 175557D 2007-07 → — Figure 175558D 175558D 2007-07 → — Figure 175603E 175603E 2007-07 → —

Part groups

PNCDescription
12635 Joint, Engine Cover
17111 Manifold, Intake
17118 Stay, Manifold
17119 Stay, Manifold, NO.2
17135A Insulator, Intake Manifold, NO.1
17138B Stay, Intake Manifold
17141 Manifold, Exhaust
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17178 Gasket, Intake Manifold TO Head, NO.2
17178A Stud, Hex Lobular(INTAKE MANIFOLD TO HEAD GASKET)
25051 Converter Sub-assy, Exhaust Manifold
25591 Bracket, Manifold Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
