Brake Master Cylinder

13 part groups · 2 illustrations

Illustrations

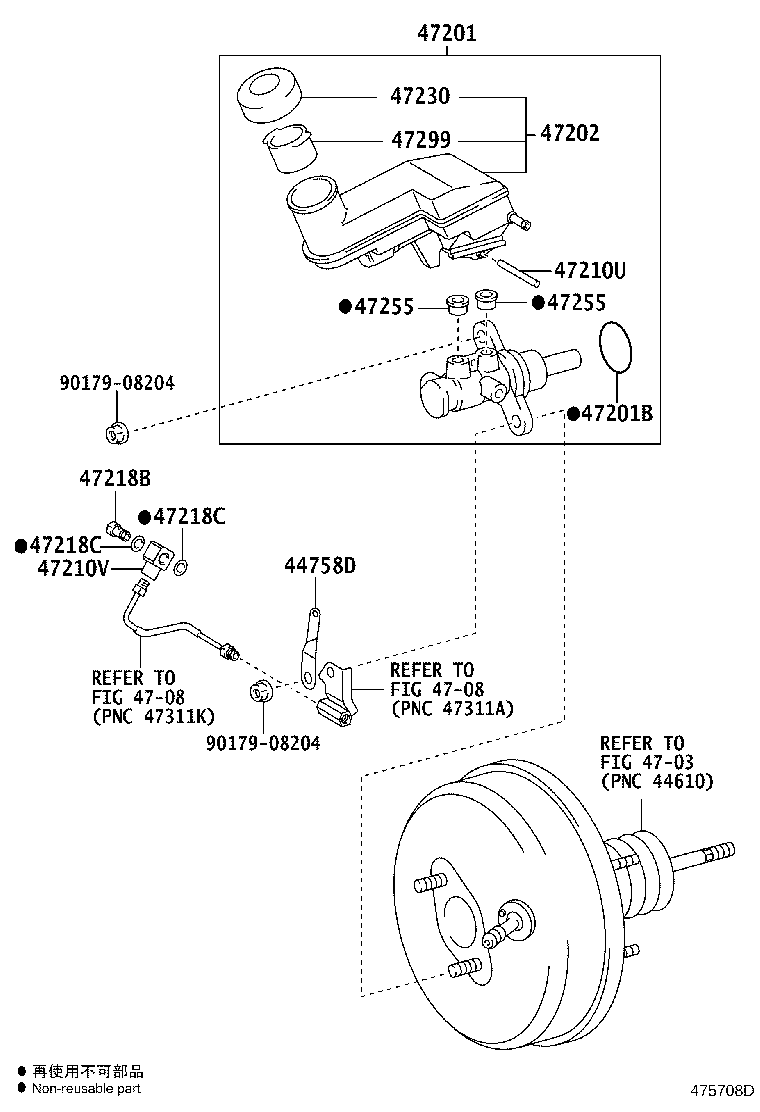

Figure 476027B 476027B 2007-07 → — Figure 475708D 475708D 2007-07 → 2010-08

Part groups

PNCDescription
44758D Bracket, Vacuum Check Valve
47201 Cylinder Sub-assy, Brake Master
47201B Ring, O(FOR BRAKE MASTER CYLINDER)
47201C Ring Pin, Brake Master Cylinder
47202 Reservoir Sub-assy, Brake Master Cylinder
47210U Pin, Straight(FOR BRAKE MASTER CYLINDER)
47210V Union(FOR BRAKE MASTER CYLINDER)
47218B Bolt, Union(FOR MASTER CYLINDER FLUID OUTLET)
47218C Gasket(FOR MASTER CYLINDER FLUID OUTLET)
47230 Cap Assy, Brake Master Cylinder Reservoir Filler
47255 Grommet, Master Cylinder Reservoir
47287 Label, Brake Fluid Information
47299 Strainer, Brake Master Cylinder Reservoir
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
