Toyota Ist

2007-07 → 2016-04 · chassis NCP11#,ZSP110 · catalogue 117120 · Japan

Supported model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

14 part groups · 2 illustrations

Illustrations

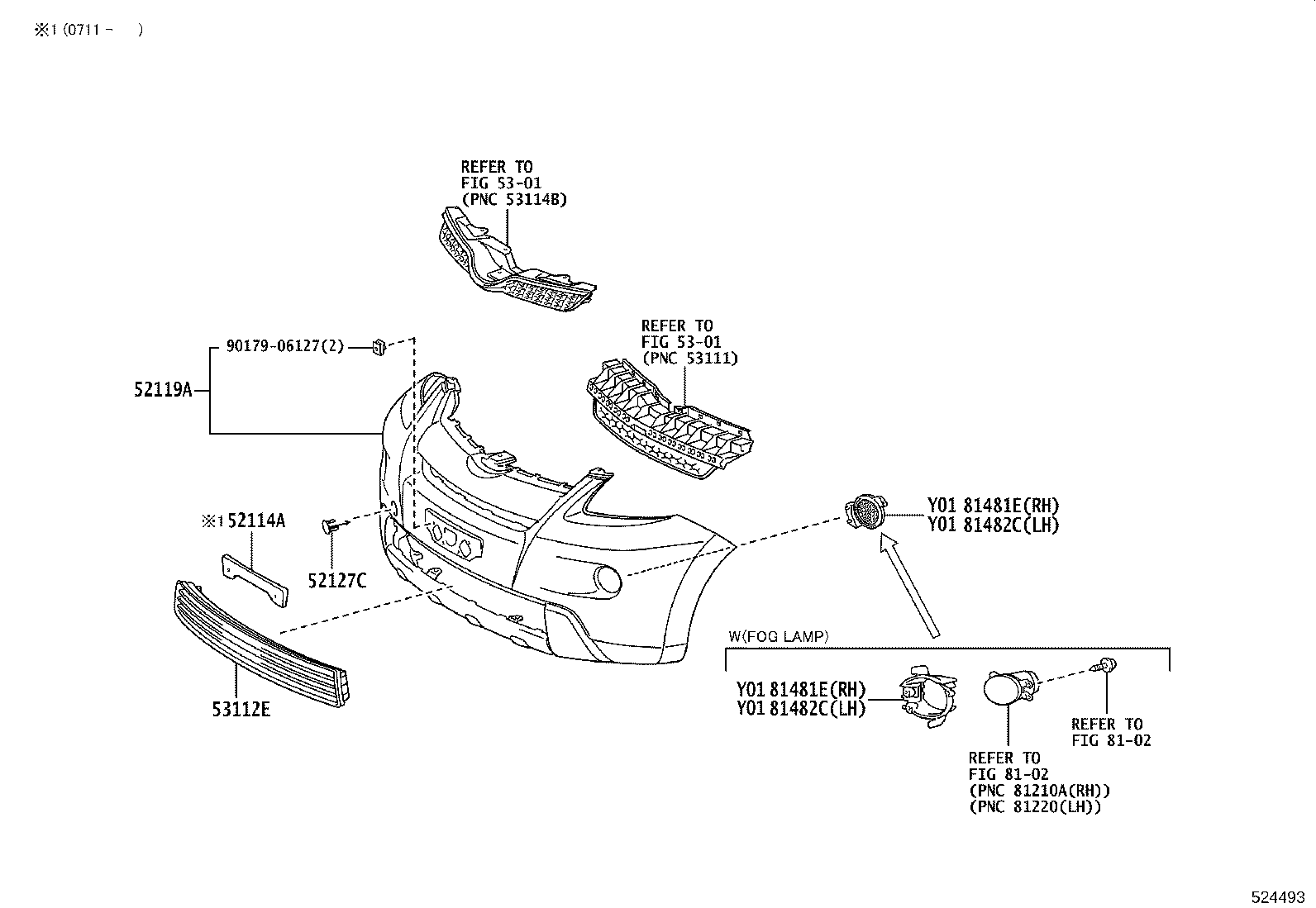

Figure 521765K 521765K 2007-07 → — Figure 524493 524493 2007-07 → —

Part groups

PNCDescription
52114A Bracket, Front Bumper Extension Mounting
52119A Cover, Front Bumper
52127C Cover, Front Bumper Hole
52131A Reinforcement, Front Bumper
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
52618 Absorber, Front Bumper, Lower
53112E Grille, Radiator, Lower NO.1
53165A Bracket, Front Bumper Stone Deflector, NO.1
57013C Bracket Sub-assy, Front Side Member, RH
57014A Bracket Sub-assy, Front Side Member, LH
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
