Toyota Ist
2007-07 → 2016-04 · chassis NCP11#,ZSP110 · catalogue 117120 · Japan
Supported model
Data version 2016-10

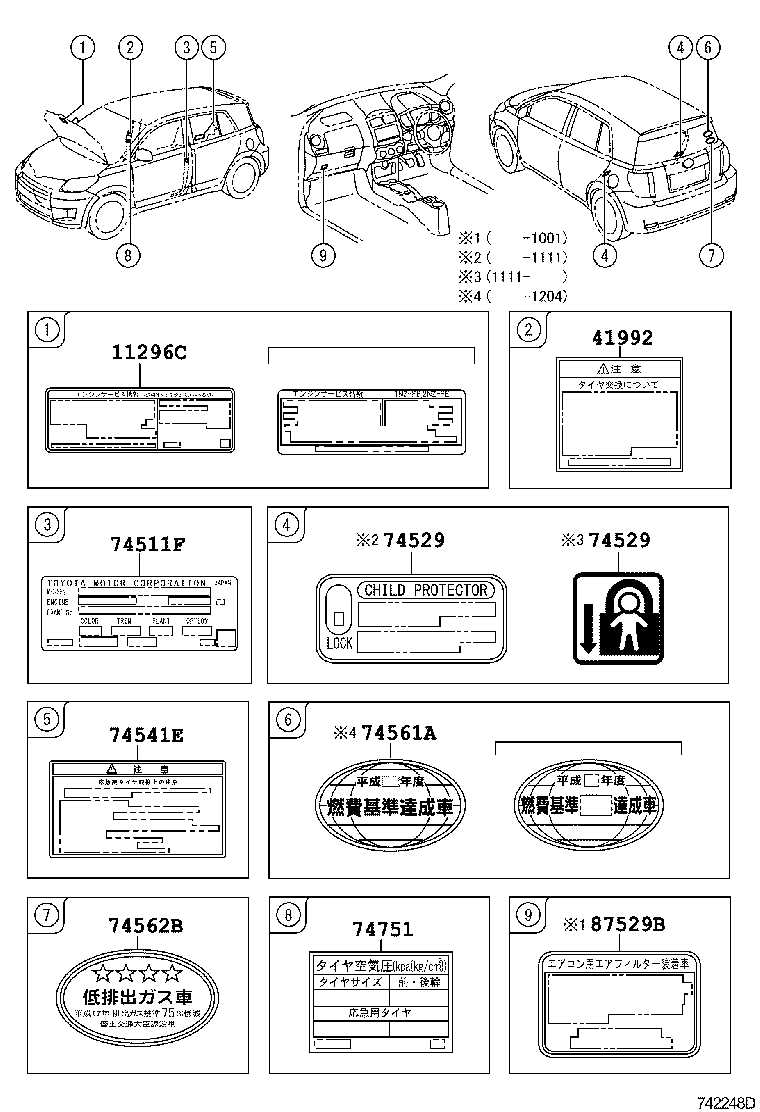

Caution Plate (EXTERIOR & INTERIOR)
15 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 11296C | Label, Engine Service Information |
| 41992 | Label, Differential Notice |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74529 | Plate, Child Proof OR Child Protector Lock Caution |
| 74541E | Plate, Compact Spare Tire Caution |
| 74561A | Label, Fuel Consumption Information |
| 74562B | Label, Emission Information |
| 74598A | Label, Passenger Airbag Caution |
| 74751 | Label, Tire Pressure Information |
| 86995B | Plate, Caution |
| 86995E | Label, Caution |
| 87529B | Label, A/C Filter Information |
| 88723J | Label, Cooler Service Caution, NO.2 |
| 89176A | Label, Airbag Deployment Information |
| 89616 | Label, Push Start Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
