Toyota Ist

2007-07 → 2016-04 · chassis NCP11#,ZSP110 · catalogue 117120 · Japan

Supported model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

81 part groups · 14 illustrations

Illustrations

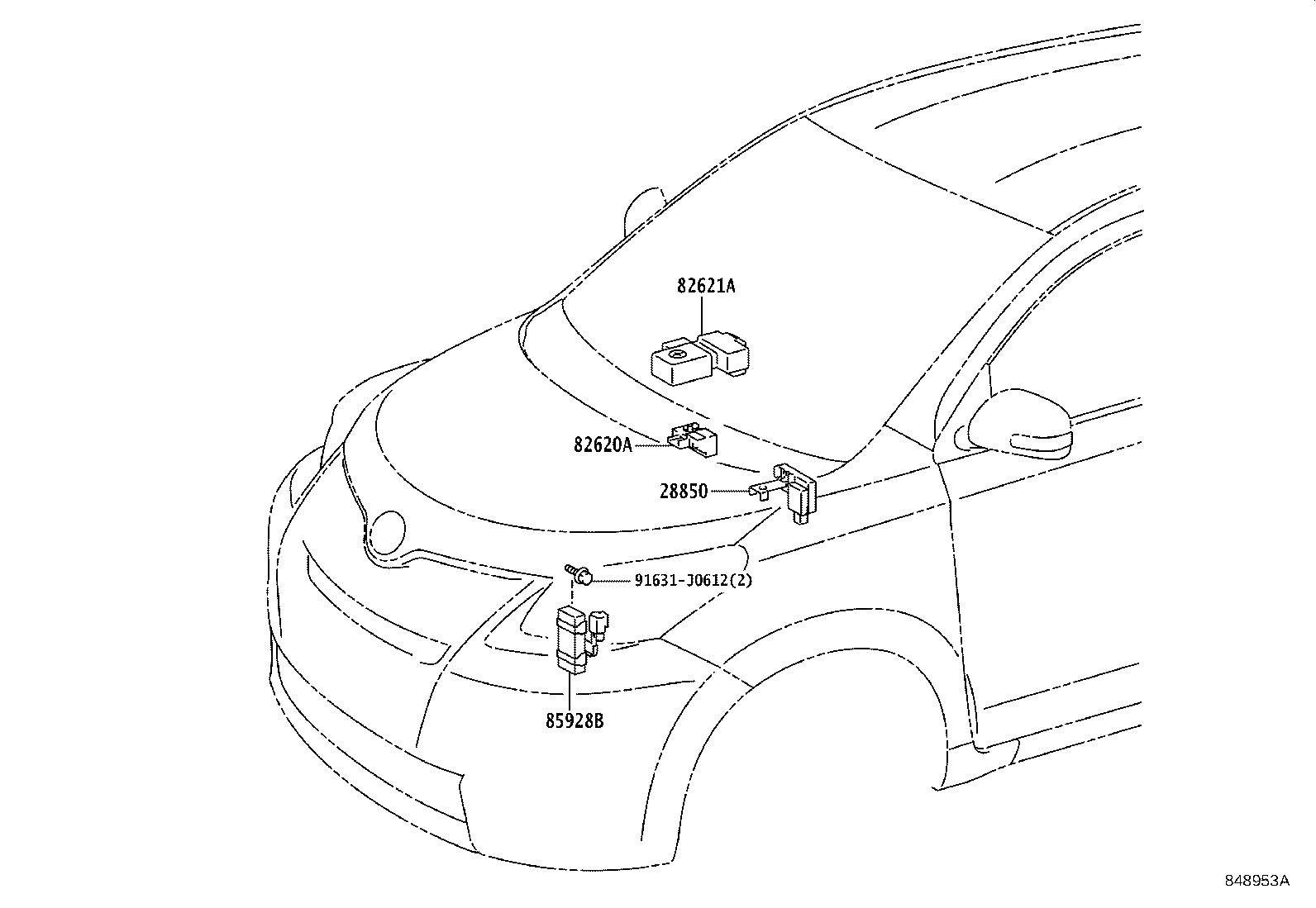

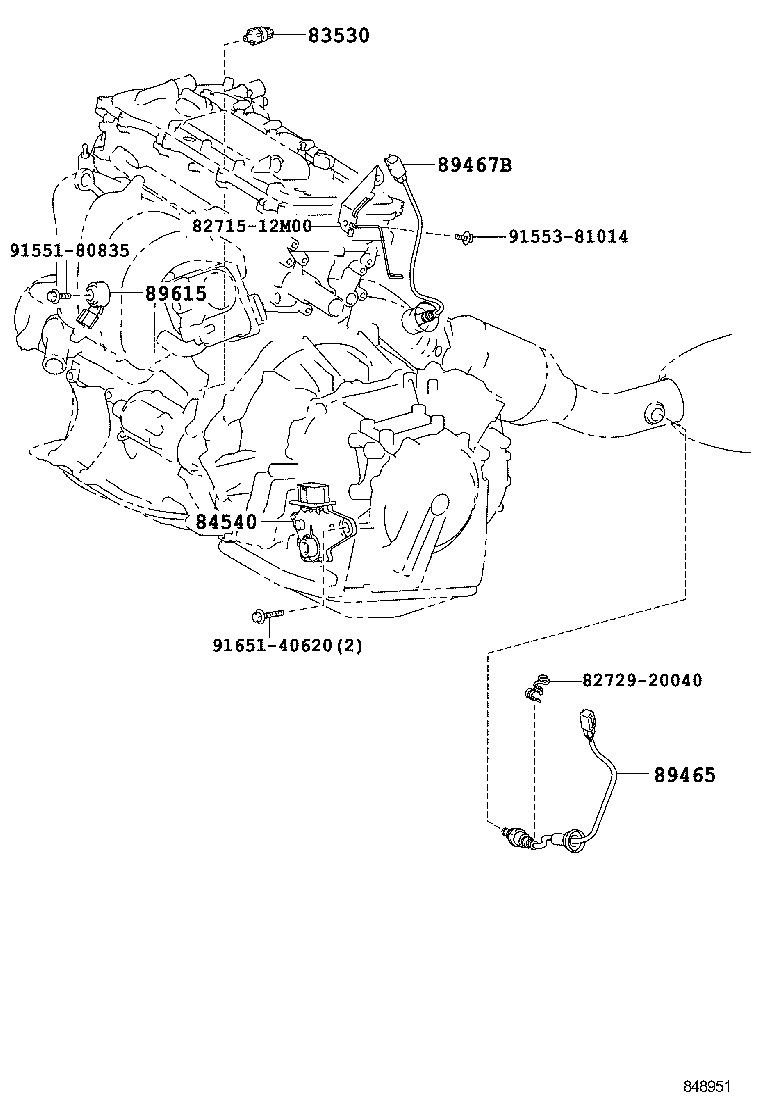

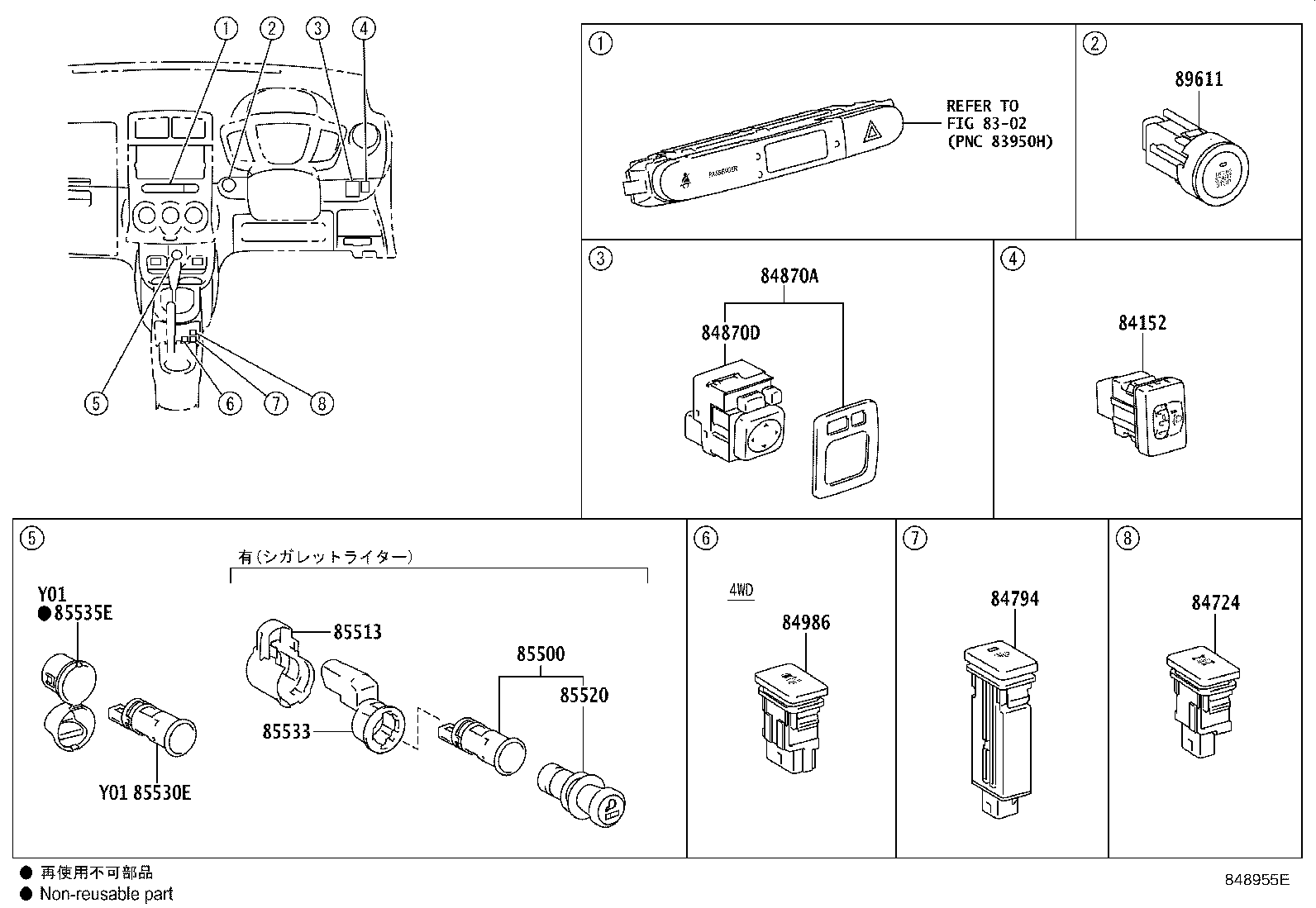

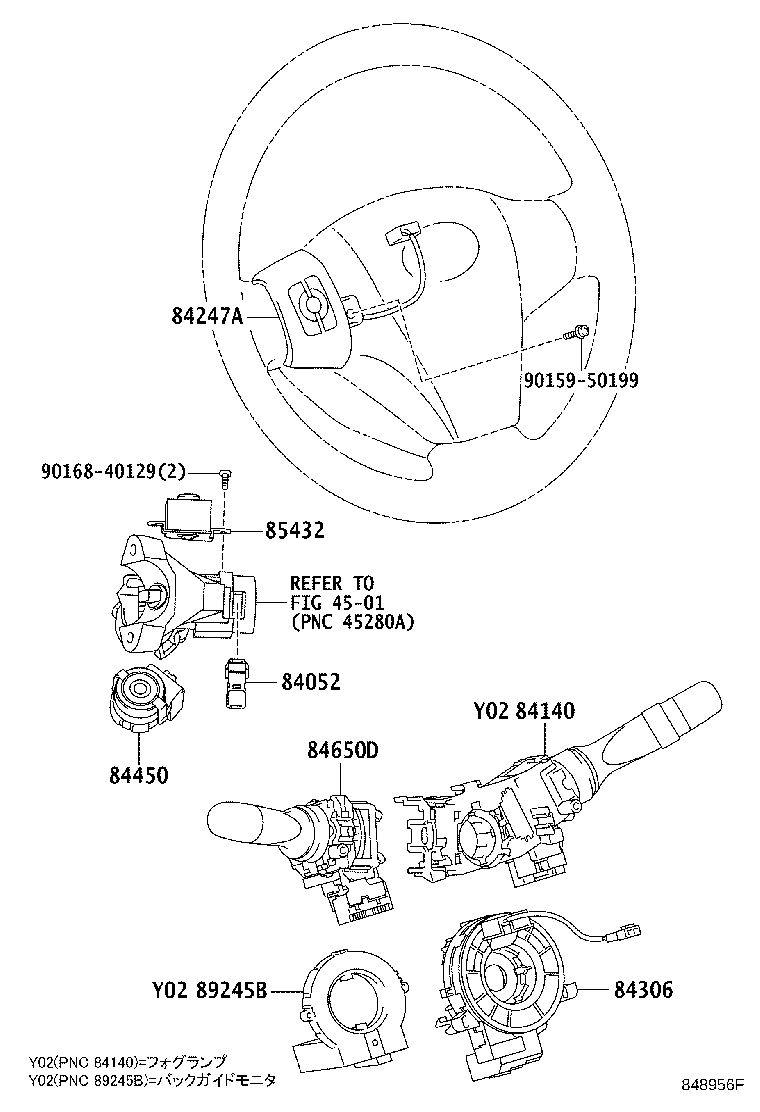

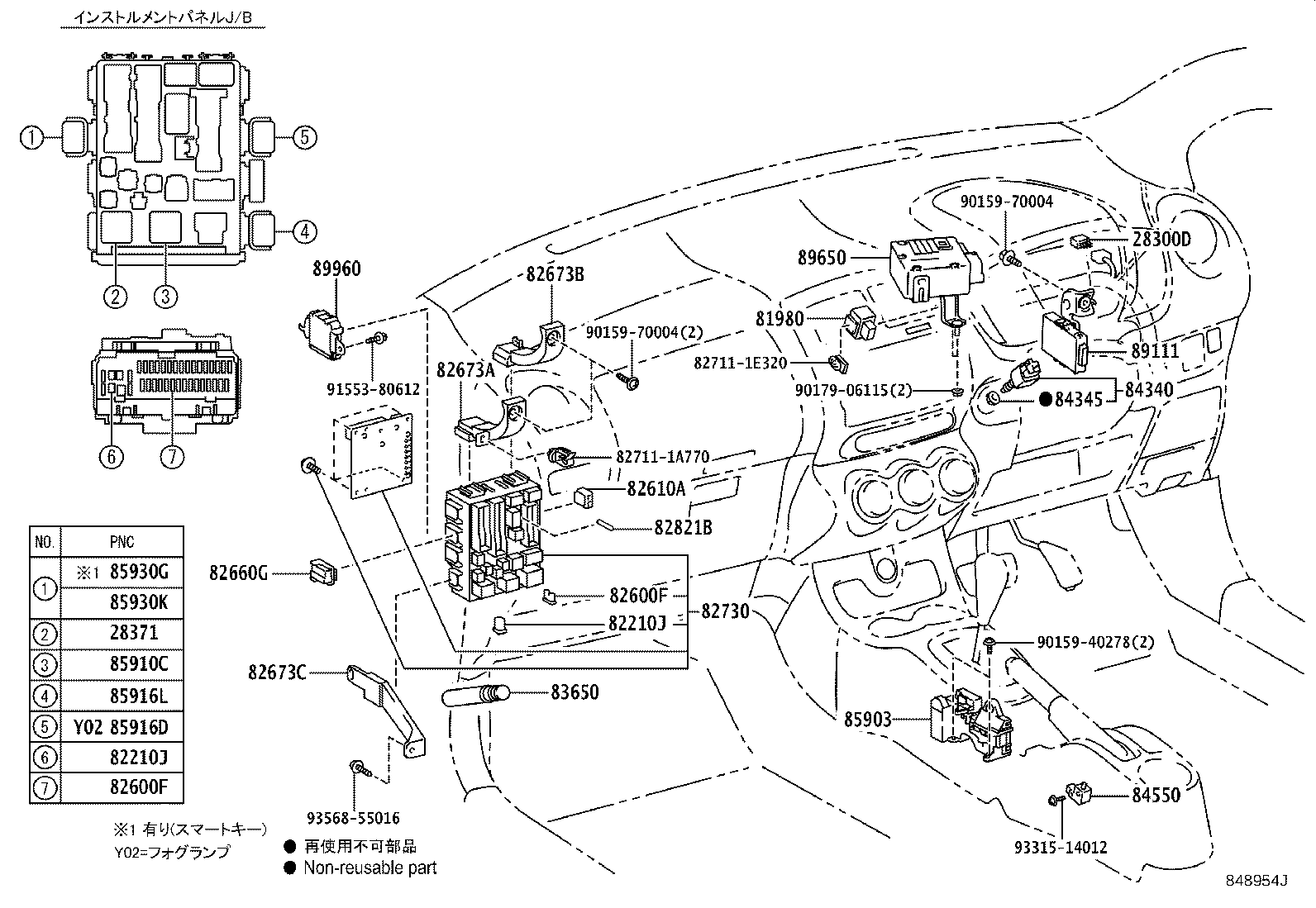

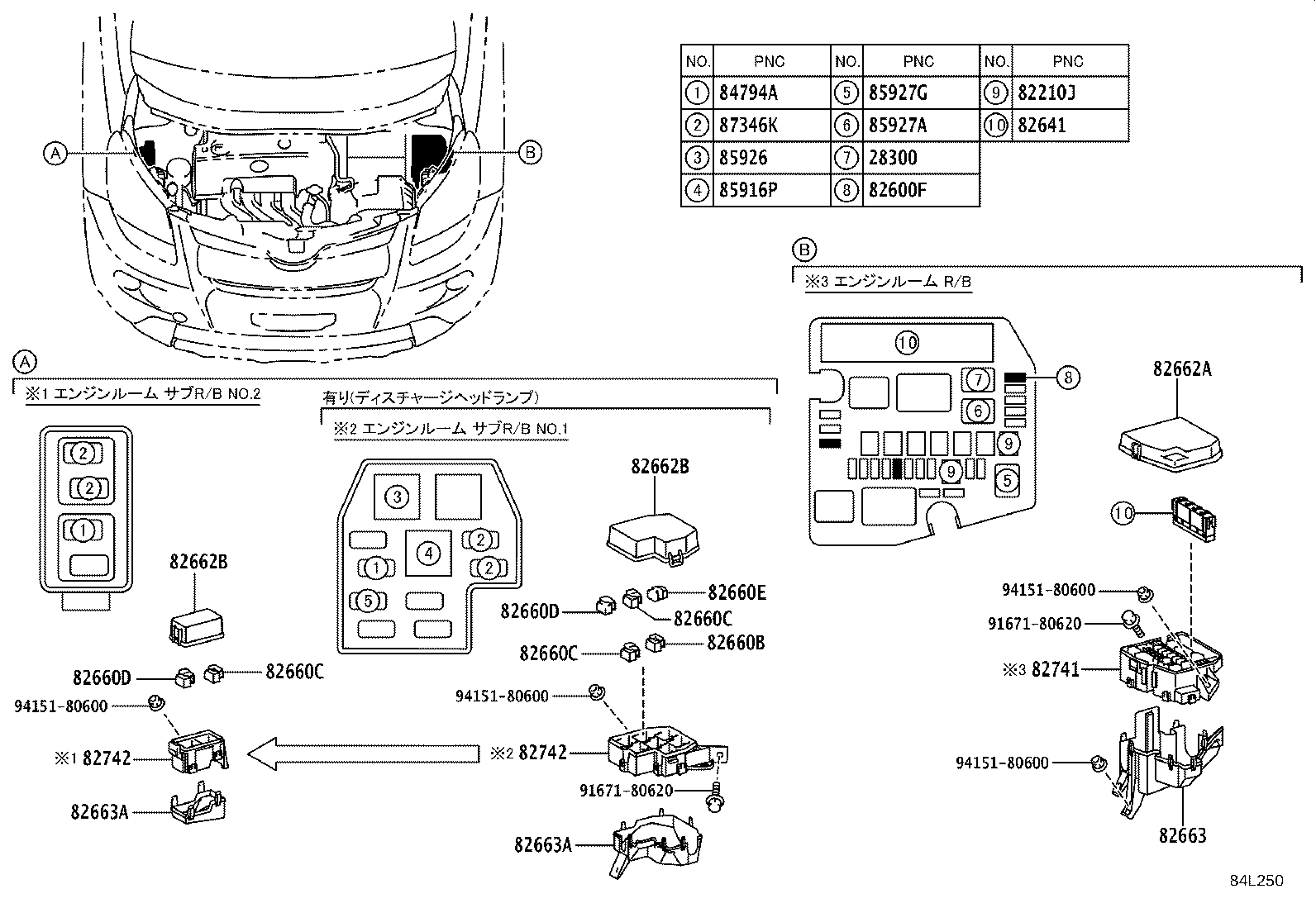

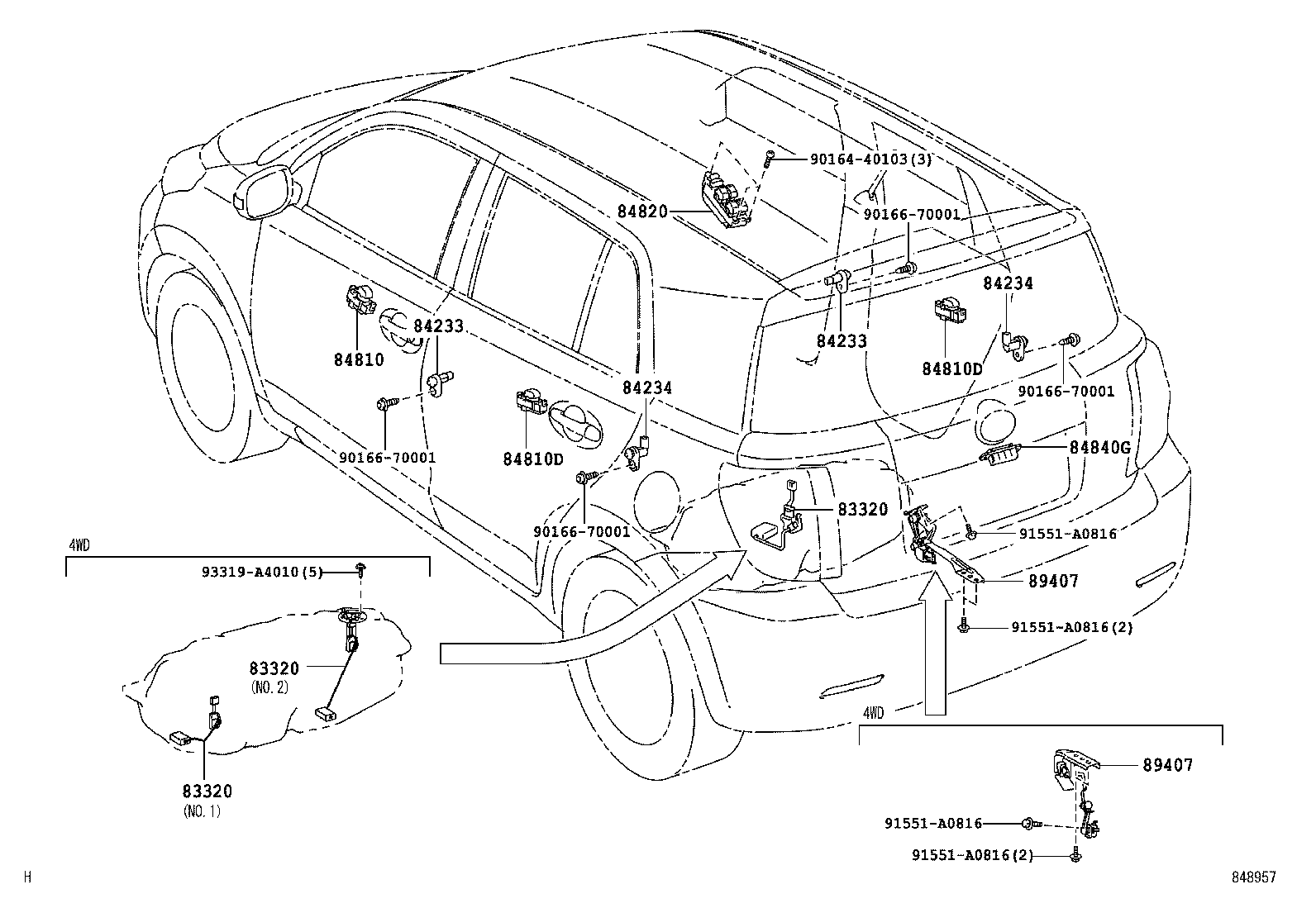

Figure 848952 848952 2007-07 → — Figure 848951 848951 2007-07 → — Figure 848953A 848953A 2007-07 → 2010-08 Figure 848953A 848953A 2007-07 → — Figure 84L250 84L250 2007-07 → 2010-08 Figure 84L250 84L250 2007-07 → — Figure 848954J 848954J 2007-07 → 2010-08 Figure 848954J 848954J 2007-07 → — Figure 848955E 848955E 2007-07 → 2010-08 Figure 848955E 848955E 2007-07 → — Figure 848956F 848956F 2007-07 → 2010-08 Figure 848956F 848956F 2007-07 → — Figure 848957 848957 2007-07 → 2010-08 Figure 848957 848957 2007-07 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28300D Relay, Starter Cut
28371 Relay, Ignition, NO.1
28850 Sensor Assy, Battery Current
81980 Flasher Assy, Turn Signal
82210J Fusible Link
82600F Fuse, Fuse Block
82610A Block Assy, Fuse
82620A Block Assy, Fusible Link
82621A Cover, Fusible Link
82641 Relay, Integration NO.1
82660B Block Assy, Relay
82660C Block Assy, Relay
82660D Block Assy, Relay
82660E Block Assy, Relay
82660G Block Assy, Relay
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82673A Bracket, Junction Block, NO.1
82673B Bracket, Junction Block, NO.2
82673C Bracket, Junction Block
82730 Block Assy, Instrument Panel Junction
82741 Block, Engine Room Relay
82742 Block, Engine Room Relay, NO.2
82821B Cover, Connector
83320 Gage Assy, Fuel Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83650 Fusee
84052 Switch Assy, Un-lock Warning
84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84247A Switch, Steering Pad, LH
84306 Cable Sub-assy, Spiral
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84450 Switch Assy, Ignition OR Starter
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84724 Switch, 4 Wheel Drive Control
84794 Switch, FR Wiper Deicer
84794A Relay, FR Wiper Deicer
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84820 Master Switch Assy, Power Window Regulator
84840G Switch Assy, Back Door Opener
84870A Switch Assy, Outer Mirror
84870D Switch Assy, Outer Mirror, NO.2
84986 Switch, Vehicle Stability Control
85432 Solenoid, Key Interlock
85500 Lighter Assy, Cigarette
85513 Cover, Cigarette Lighter
85520 Knob And Element Assy, Cigarette Lighter
85530E Socket Assy, Power Outlet, NO.3
85533 Lens, Cigarette Lighter Indicator
85535E Cover, Power Outlet Socket, NO.2
85903 Computer Sub-assy, Shift Lock Control
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85916D Relay, Fog Lamp
85916L Relay, Rear Fog Lamp
85916P Relay, Headlamp
85926 Relay, Headlamp Dimmer
85927A Relay, Cooling Fan, NO.2
85927G Relay, Air Conditioner Water Pump
85928B Resistor, Cooling Fan
85930G Relay, Acc
85930K Relay, Acc, NO.2
87346K Relay, Ptc Heater
89111 Computer, Network Gateway
89245B Sensor, Steering
89407 Sensor Sub-assy, Height Control, Rear RH
89465 Sensor, Oxygen
89467B Sensor, Air Fuel Ratio
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89960 Computer Assy, Headlamp Leveling
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
