Toyota Will Cypha

2002-09 → 2005-07 · chassis NCP7# · catalogue 118110 · Japan

Supported model Data version 2006-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

8 part groups · 2 illustrations

Illustrations

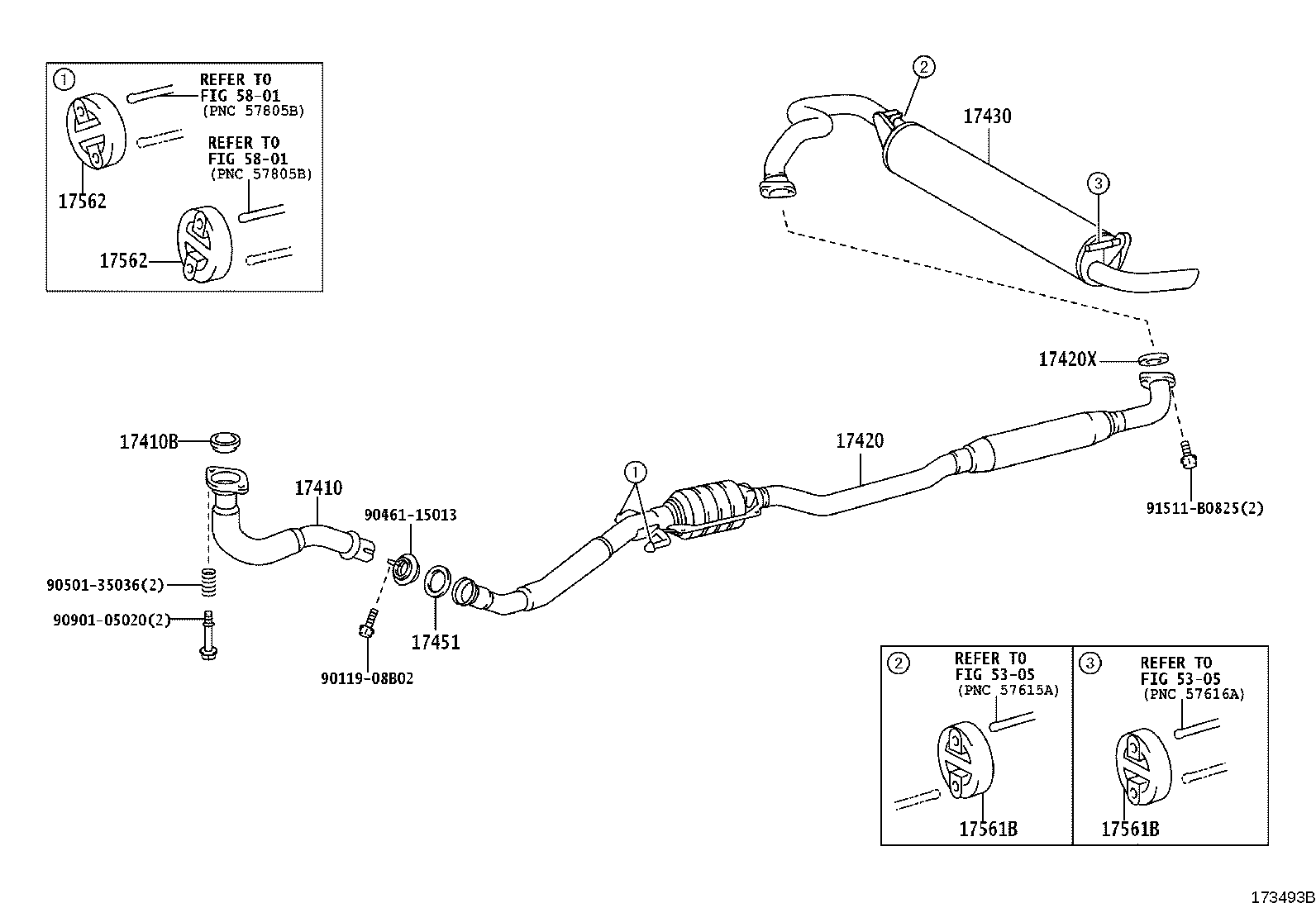

Figure 173492B 173492B 2002-09 → — Figure 173493B 173493B 2002-09 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17561B Support, Exhaust Pipe, NO.1
17562 Support, Exhaust Pipe, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
