Toyota Will Cypha

2002-09 → 2005-07 · chassis NCP7# · catalogue 118110 · Japan

Supported model Data version 2006-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

22 part groups · 2 illustrations

Illustrations

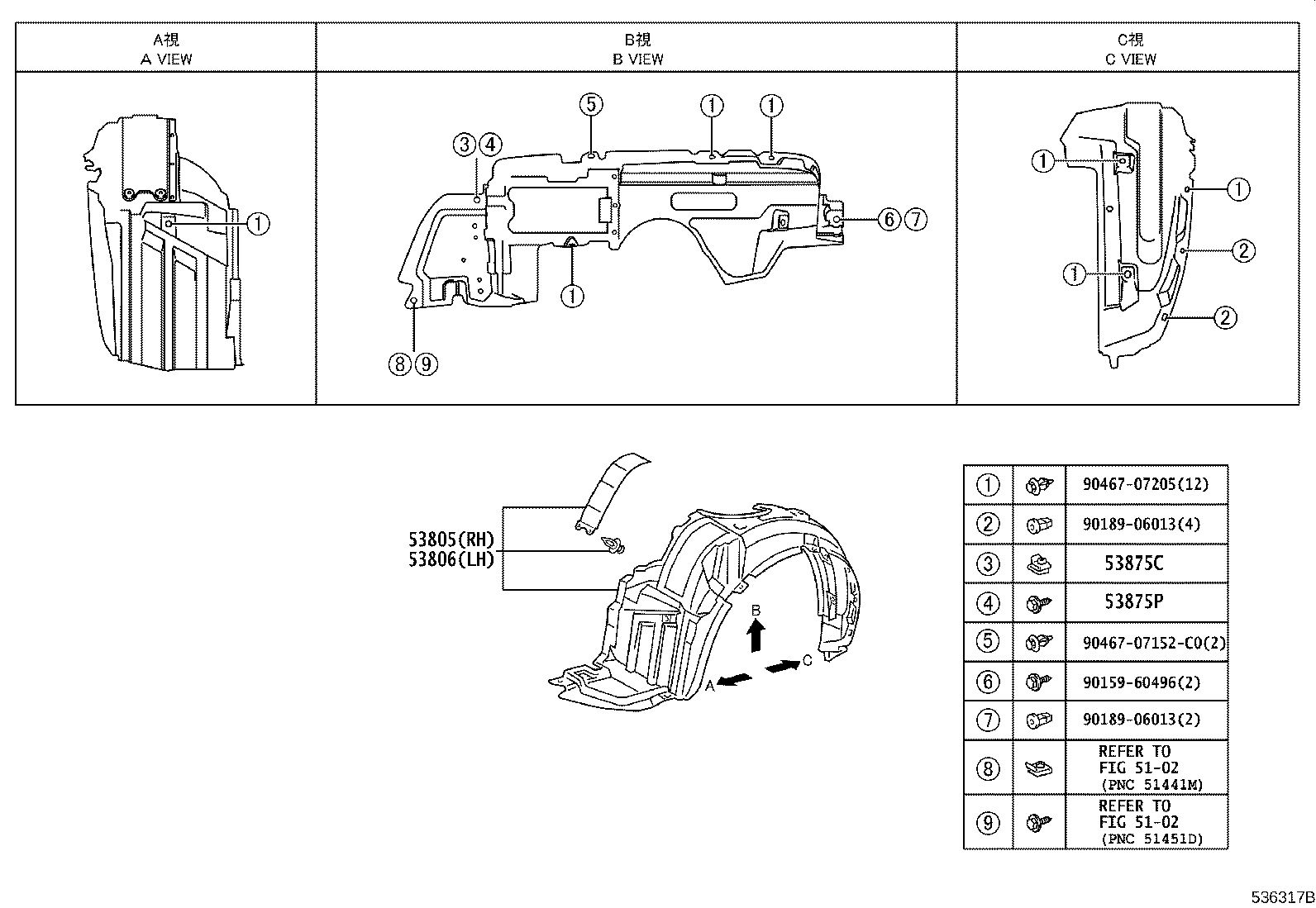

Figure 536316 536316 2002-09 → — Figure 536317B 536317B 2002-09 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53381 Seal, Hood TO Radiator Support
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53805 Shield Sub-assy, Front Fender Splash, RH
53806 Shield Sub-assy, Front Fender Splash, LH
53825A Protector, Front Fender, Upper RH
53826A Protector, Front Fender, Upper LH
53827L Protector, Front Fender Side Panel, RH
53828B Protector, Front Fender Side Panel, LH
53831A Panel, Front Fender Side, Upper RH
53832A Panel, Front Fender Side, Upper LH
53833A Panel, Front Fender Side, Lower RH
53834 Panel, Front Fender Side, Lower LH
53835 Brace, Front Fender TO Extension, RH
53836 Brace, Front Fender TO Extension, LH
53837A Bracket, Front Side Panel, NO.2
53838C Bracket, Front Side Panel, NO.2 LH
53875C Clip, Front Fender Liner
53875P Screw, NO.1
53882F Seal, Front Fender
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
