Toyota Will Cypha
2002-09 → 2005-07 · chassis NCP7# · catalogue 118110 · Japan
Supported model
Data version 2006-01

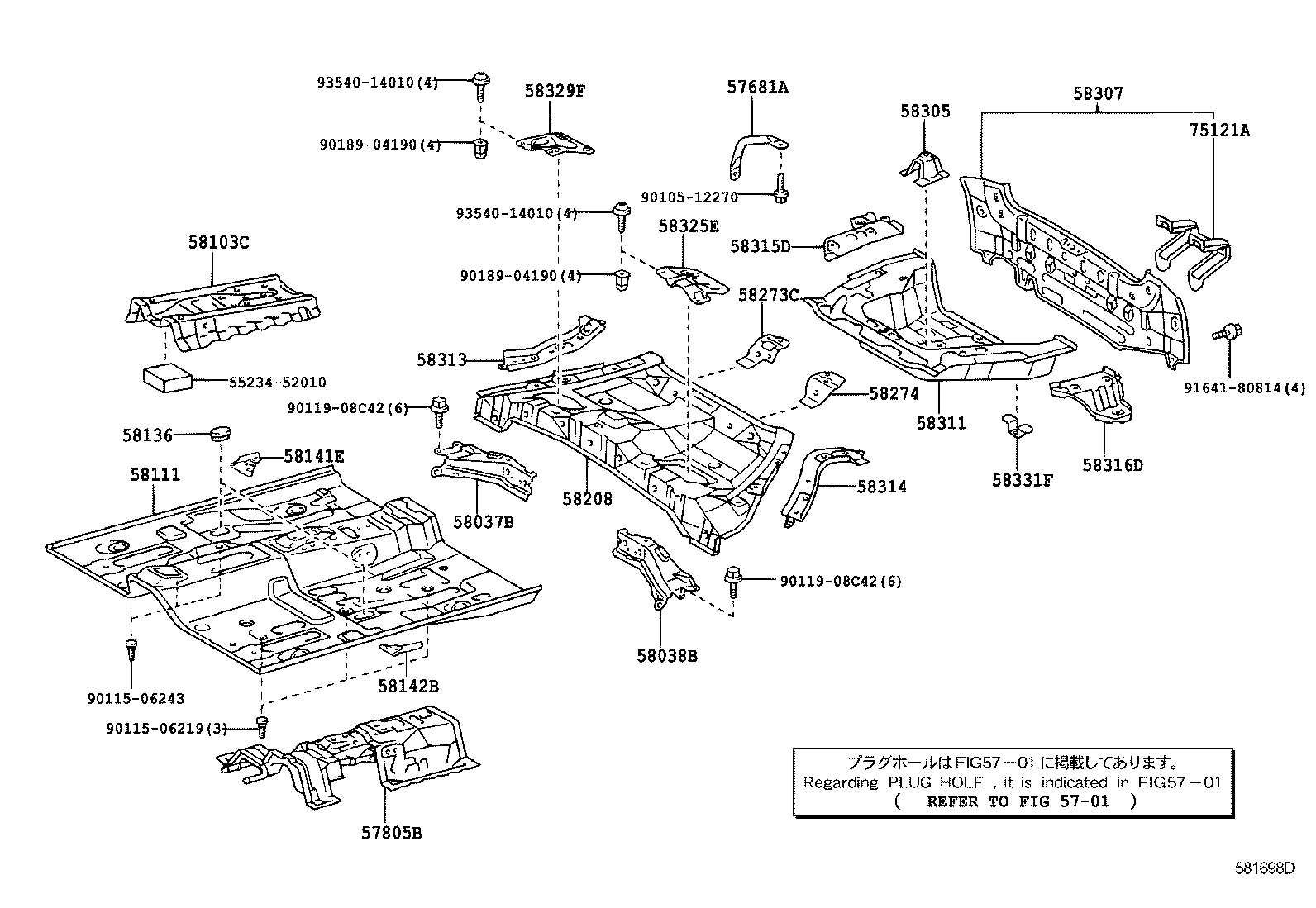

Floor Pan & Lower Back Panel
29 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 57681A | Brace, Rear Floor NO.2 Crossmember, Outer |
| 57805B | Reinforcement Sub-assy, Belt Anchor, RH |
| 58037B | Reinforce, Center Pillar TO Floor, RH |
| 58038B | Reinforce, Center Pillar TO Floor, LH |
| 58103C | Reinforcement Sub-assy, Front Floor, Front |
| 58111 | Pan, Front Floor |
| 58136 | Cover, Front Floor Hole |
| 58141E | Reinforcement, Front Side Member TO Floor Pan, RH |
| 58142B | Reinforcemnet, Front Side Member TO Floor Pan, LH |
| 58161B | Reinforcement, Belt Anchor TO Floor Pan |
| 58179C | Bracket, Clamp Floor |
| 58208 | Pan, Center Floor |
| 58214E | Bracket, Jack Support |
| 58251B | Brace, Floor Panel, Front |
| 58273C | Reinforcement, Belt Anchor TO Center Floor |
| 58274 | Reinforcement, Belt Anchor TO Center Floor, NO.1 |
| 58305 | Bracket Sub-assy, Spare Wheel Clamp |
| 58307 | Panel Sub-assy, Body Lower Back |
| 58311 | Pan, Rear Floor |
| 58313 | Panel, Rear Floor Side, RH |
| 58314 | Panel, Rear Floor Side, LH |
| 58315D | Extension, Rear Floor Pan, RH |
| 58316D | Extension, Rear Floor Pan, LH |
| 58325E | Cover, Rear Floor Service Hole |
| 58329F | Cover, Rear Floor Service Hole, NO.2 |
| 58331F | Bracket, Rear Floor Heat Insulator, NO.3 |
| 58378B | Reinforcement, Body Lower Back Panel |
| 71316 | Bracket, Rear Seat Support |
| 75121A | Bracket, Rear License Plate |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
