Toyota Will Cypha
2002-09 → 2005-07 · chassis NCP7# · catalogue 118110 · Japan
Supported model
Data version 2006-01

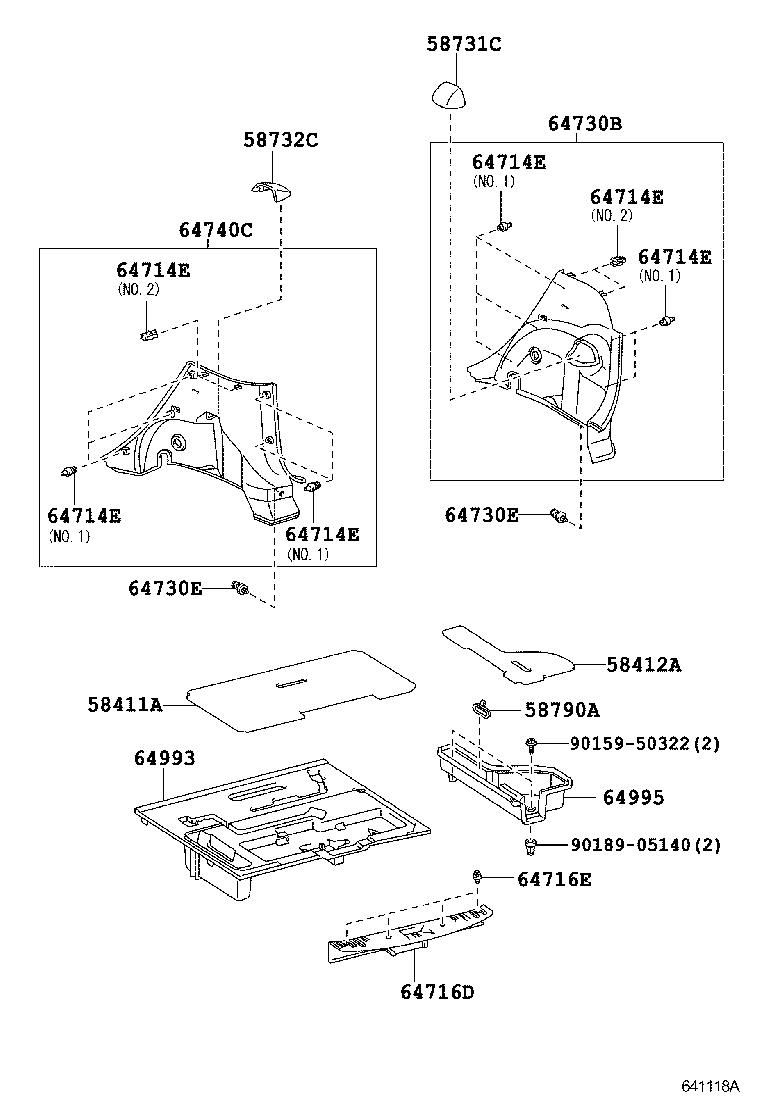

Deck Board & Deck Trim Cover
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58411A | Board, Deck, NO.1 |
| 58412A | Board, Deck, NO.2 |
| 58731C | Cap, Rear Absorber |
| 58732C | Cap, Rear Absorber |
| 58790A | Carrier Assy, Jack |
| 64714E | Clip(FOR DECK TRIM SIDE COVER) |
| 64716D | Cover, Deck Trim, Rear |
| 64716E | Clip(FOR DECK TRIM REAR COVER) |
| 64730B | Panel Assy, Deck Trim Side, RH |
| 64730E | Clip(FOR DECK TRIM SIDE BOARD) |
| 64740C | Panel Assy, Deck Trim Side, LH |
| 64770D | Cover Assy, Spare Wheel |
| 64772 | Pad, Spare Wheel Cover |
| 64993 | Box, Deck Floor, Rear |
| 64995 | Box, Deck Floor, RH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
