Toyota Will Cypha
2002-09 → 2005-07 · chassis NCP7# · catalogue 118110 · Japan
Supported model
Data version 2006-01

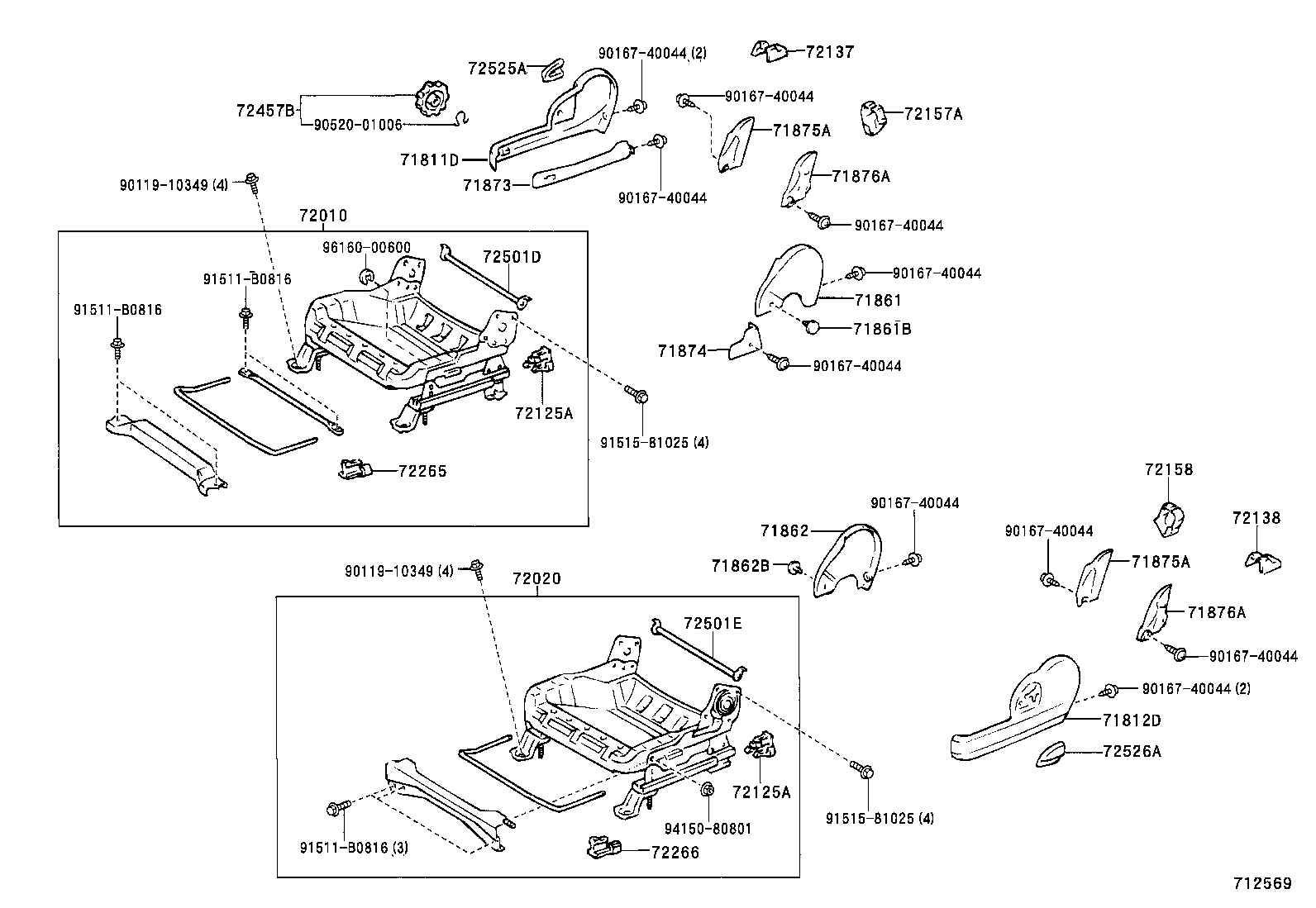

Front Seat & Seat Track
34 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 71052 | Pad Sub-assy, Front Seat Cushion Sensor, LH |
| 71518B | Pad, Front Seat Cushion W/Cover, RH |
| 71528 | Pad, Front Seat Cushion W/Cover, LH |
| 71558B | Pad, Front Seatback W/Cover, RH |
| 71568A | Pad, Front Seatback W/Cover, LH |
| 71630S | Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71640S | Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71753 | Tray, Front Seat Under |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71861B | Clip(FOR FRONT SEAT SHIELD, RH) |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71862B | Clip(FOR FRONT SEAT SHIELD, LH) |
| 71873 | Shield, Front Seat Cushion, Lower RH |
| 71874 | Shield, Front Seat Cushion, Lower LH |
| 71875A | Cover, Reclining Adjuster Inside, RH |
| 71876A | Cover, Reclining Adjuster Inside, LH |
| 71910A | Headrest Assy, Front Seat |
| 71931 | Support, Front Seat Headrest |
| 72010 | Adjuster Assy, Front Seat, RH |
| 72020 | Adjuster Assy, Front Seat, LH |
| 72125A | Cover, Seat Track, Upper Rear |
| 72137 | Cover, Seat Track, Outer RH |
| 72138 | Cover, Seat Track, Outer LH |
| 72157A | Cover, Seat Track Bracket, Inner RH |
| 72158 | Cover, Seat Track Bracket, Inner LH |
| 72265 | Cover, Seat Track Upper Rail, RH |
| 72266 | Cover, Seat Track Upper Rail, LH |
| 72457B | Knob, Vertical Seat Adjuster, RH |
| 72501D | Pipe Sub-assy, Reclining Connecting, RH |
| 72501E | Pipe Sub-assy, Reclining Connecting, LH |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72526A | Handle, Reclining Adjuster Release, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
