Toyota Will Cypha
2002-09 → 2005-07 · chassis NCP7# · catalogue 118110 · Japan
Supported model
Data version 2006-01

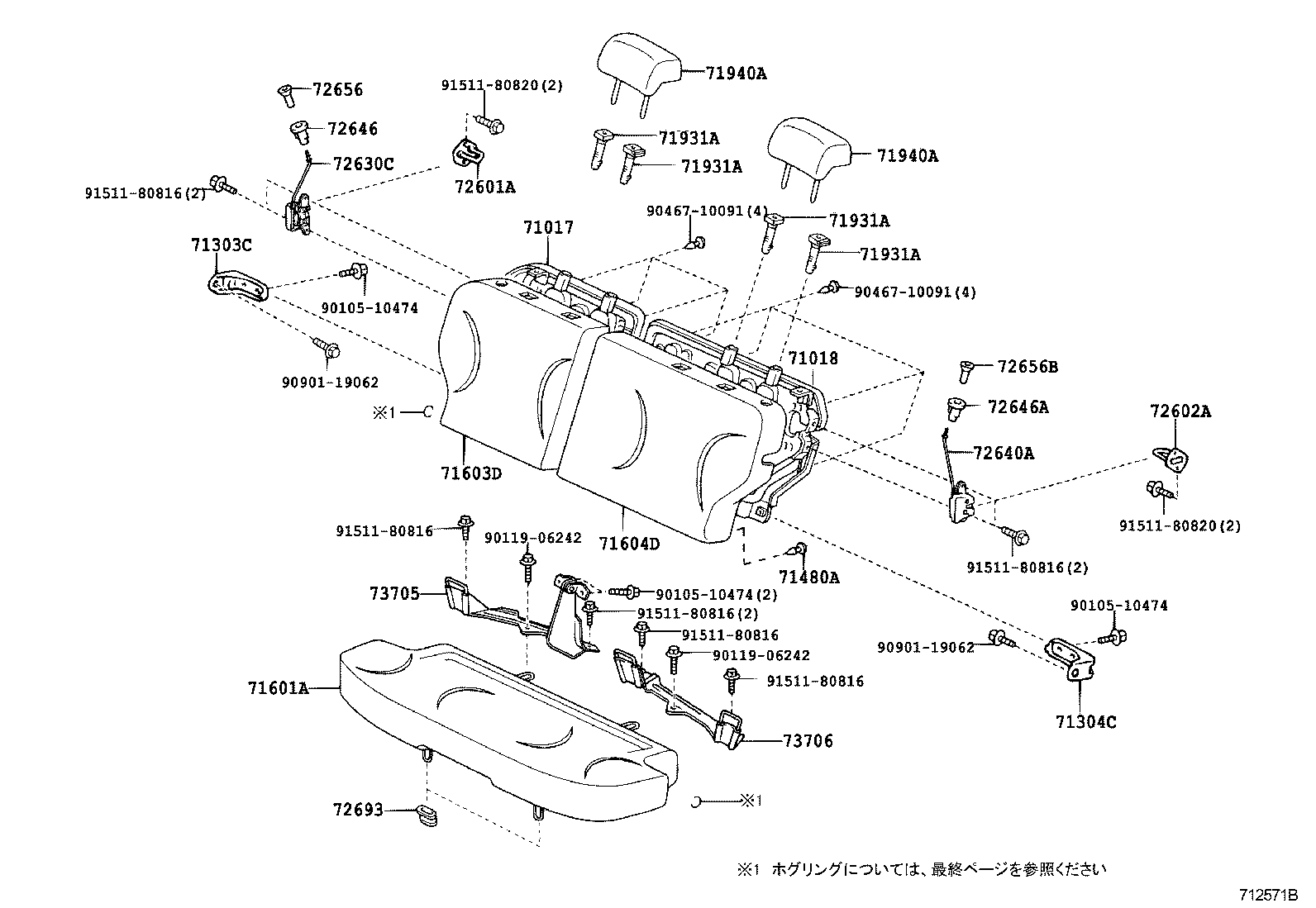

Rear Seat & Seat Track
21 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 71017 | Frame Sub-assy, Rear Seatback, RH |
| 71018 | Frame Sub-assy, Rear Seatback, LH |
| 71303C | Hinge Sub-assy, Rear Seatback, RH |
| 71304C | Hinge Sub-assy, Rear Seatback, LH |
| 71480A | Clip (FOR REAR SEATBACK) |
| 71601A | Pad Sub-assy, Rear Seat Cushion W/Cover |
| 71603D | Pad Sub-assy, Rear Seatback W/Cover, RH |
| 71604D | Pad Sub-assy, Rear Seatback W/Cover, LH |
| 71931A | Support, Rear Seat Headrest |
| 71940A | Headrest Assy, Rear Seat |
| 72601A | Striker Sub-assy, Rear Seatback Look, RH |
| 72602A | Striker Sub-assy, Rear Seatback Lock, LH |
| 72630C | Lock Assy, Rear Seatback, RH |
| 72640A | Lock Assy, Rear Seatback, LH |
| 72646 | Grommet, Rear Seatback Stop Button |
| 72646A | Grommet, Rear Seatback Stop Button |
| 72656 | Button, Rear Seatback Stop Release |
| 72656B | Button, Rear Seatback Stop Release |
| 72693 | Hook, Rear Seat Cushion Lock |
| 73705 | Bracket Sub-assy, Child Restraint Seat Anchor, RH |
| 73706 | Bracket Sub-assy, Child Restraint Seat Anchor, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
