Toyota Will Cypha

2002-09 → 2005-07 · chassis NCP7# · catalogue 118110 · Japan

Supported model Data version 2006-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

13 part groups · 2 illustrations

Illustrations

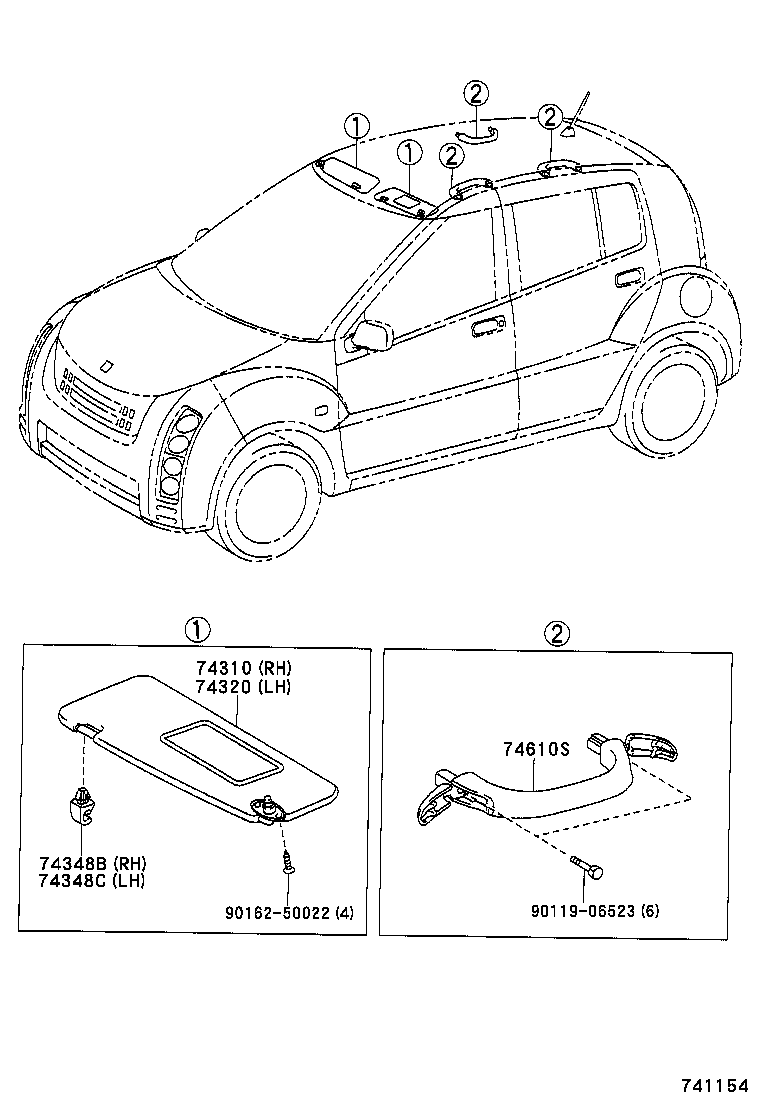

Figure 741153A 741153A 2002-09 → 2005-07 Figure 741154 741154 2002-09 → 2005-07

Part groups

PNCDescription
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74271A Panel, Rear Door Armrest Base, Upper RH
74272A Panel, Rear Door Armrest Base, Upper LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74348B Holder, Visor, RH
74348C Holder, Visor, LH
74610S Grip Assy, Assist
74630C Grip Assy, Door Assist, RH
74630G Grip Assy, Rear Door Assist RH
74640C Grip Assy, Door Assist, LH
74640D Grip Assy, Rear Door Assist LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
