Toyota Will Cypha

2002-09 → 2005-07 · chassis NCP7# · catalogue 118110 · Japan

Supported model Data version 2006-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

16 part groups · 7 illustrations

Illustrations

Figure 823264F 823264F 2002-09 → — Figure 823265D 823265D 2002-09 → — Figure 823266G 823266G 2002-09 → — Figure 823267C 823267C 2002-09 → — Figure 823268D 823268D 2002-09 → — Figure 823269C 823269C 2002-09 → — Figure 823654A 823654A 2002-09 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main

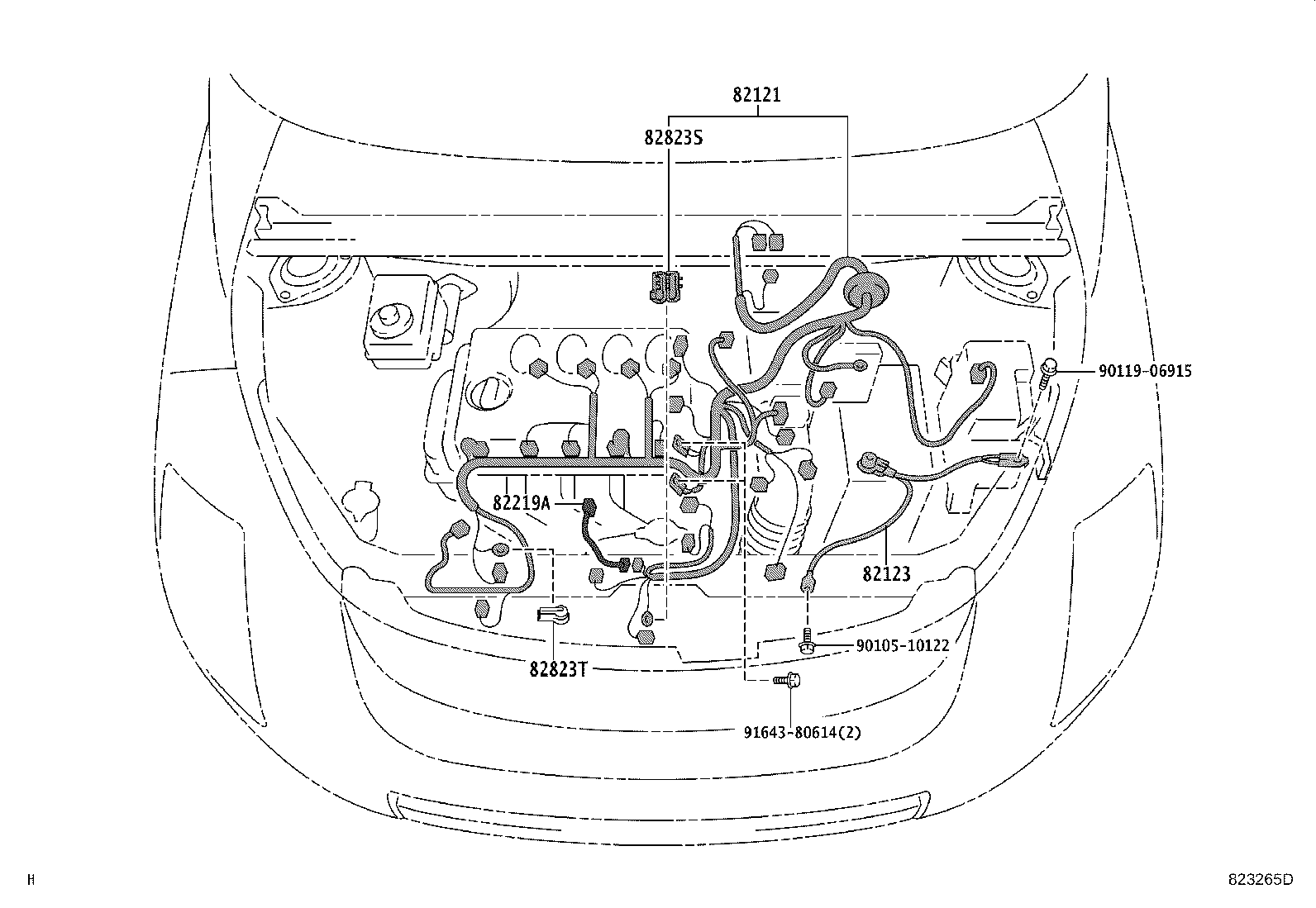

82121 Wire, Engine
82123 Wire, Engine, NO.3

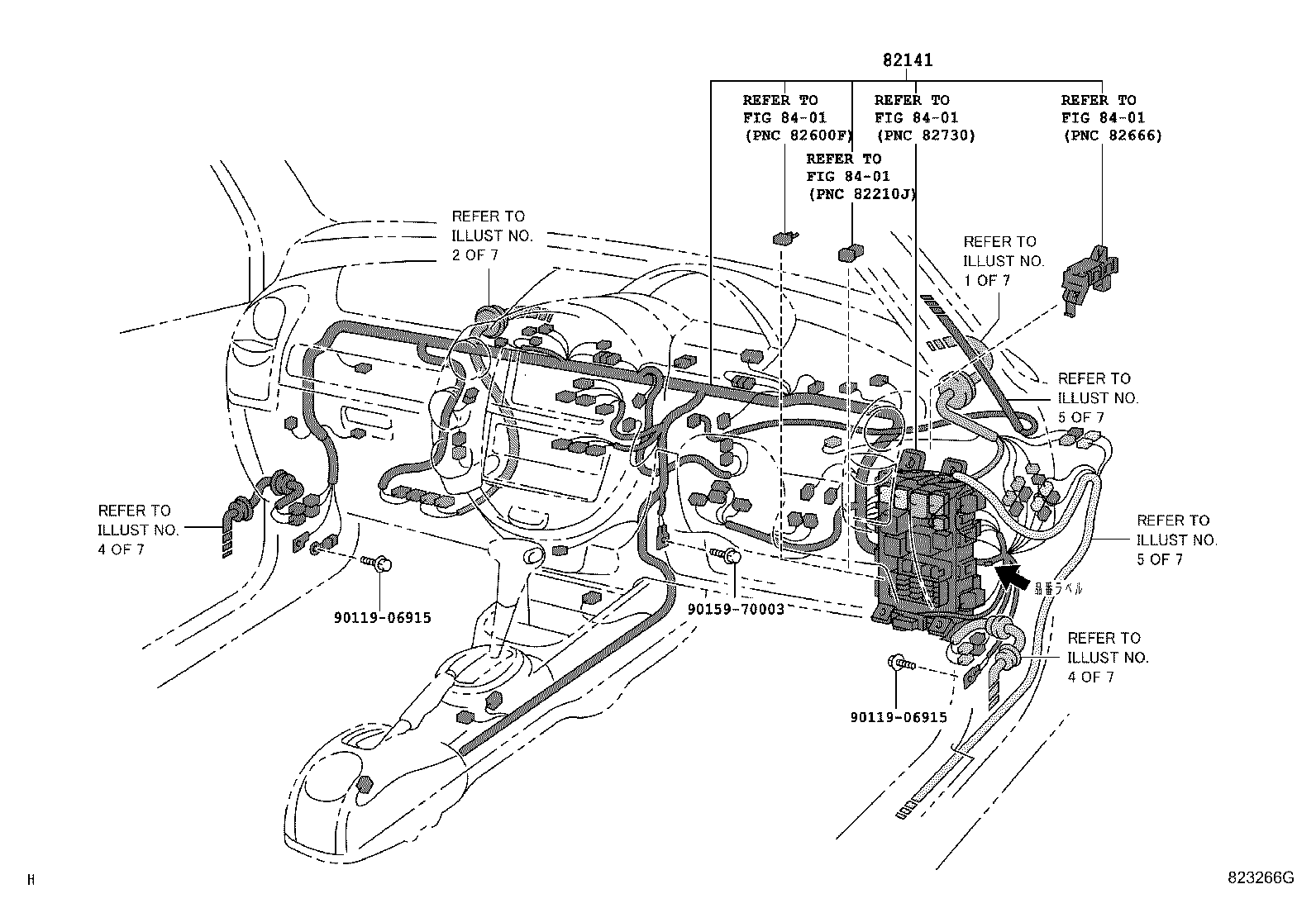

82141 Wire, Instrument Panel

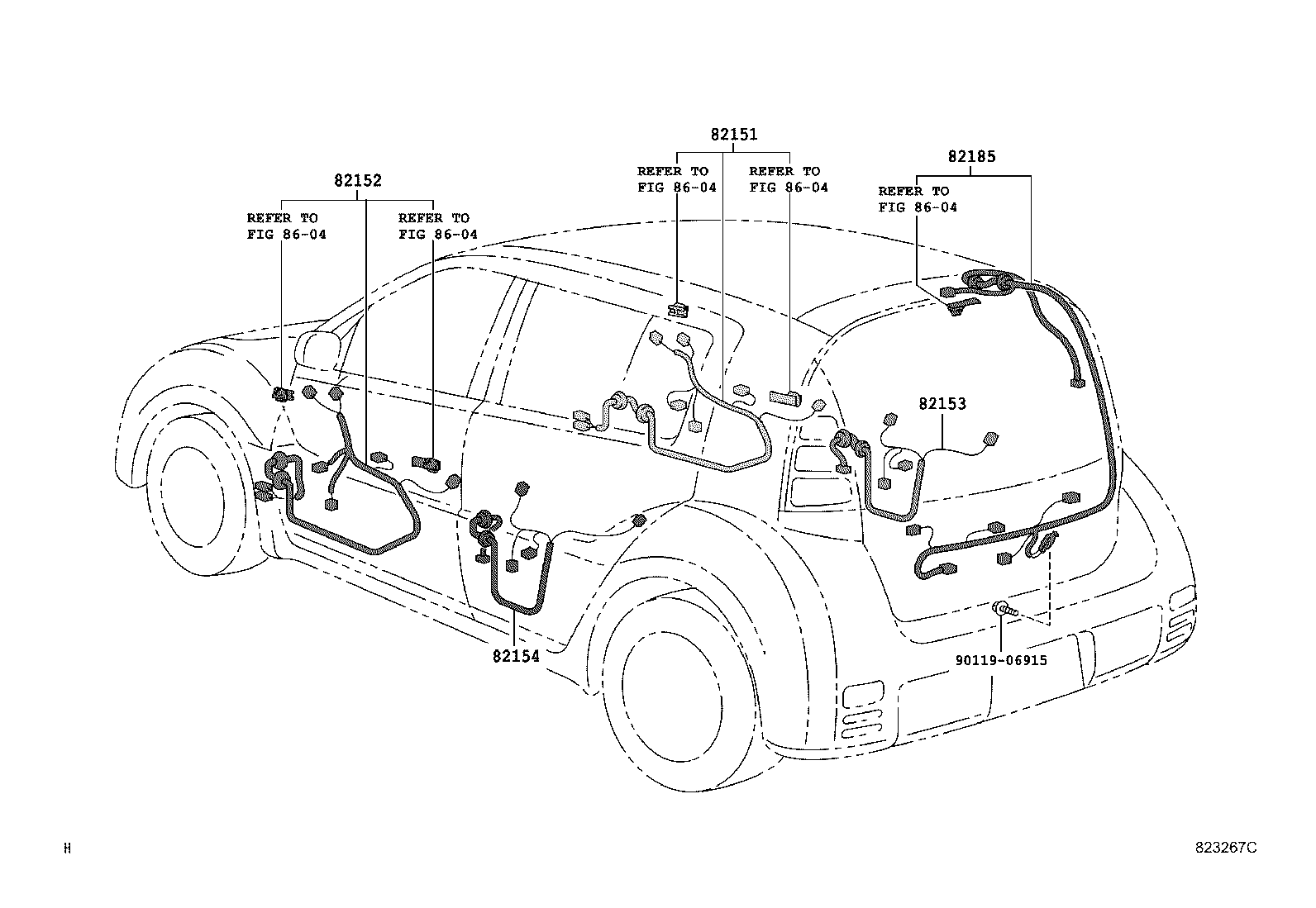

82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2

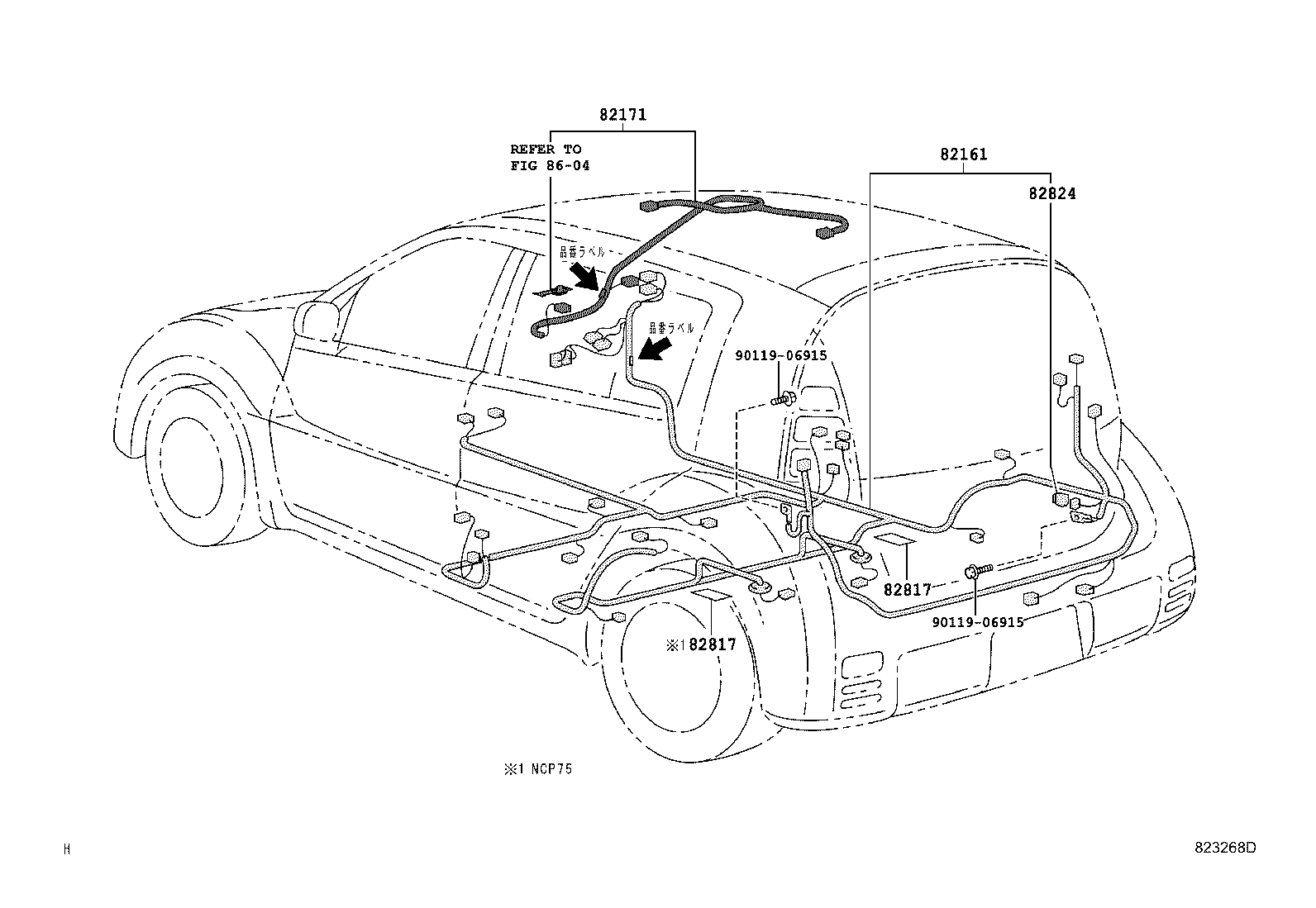

82161 Wire, Floor
82171 Wire, Roof, NO.1
82185 Wire, Back Door, NO.2
82219A Wire, Sensor
82817 Protector, Wiring Harness, NO.1
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal

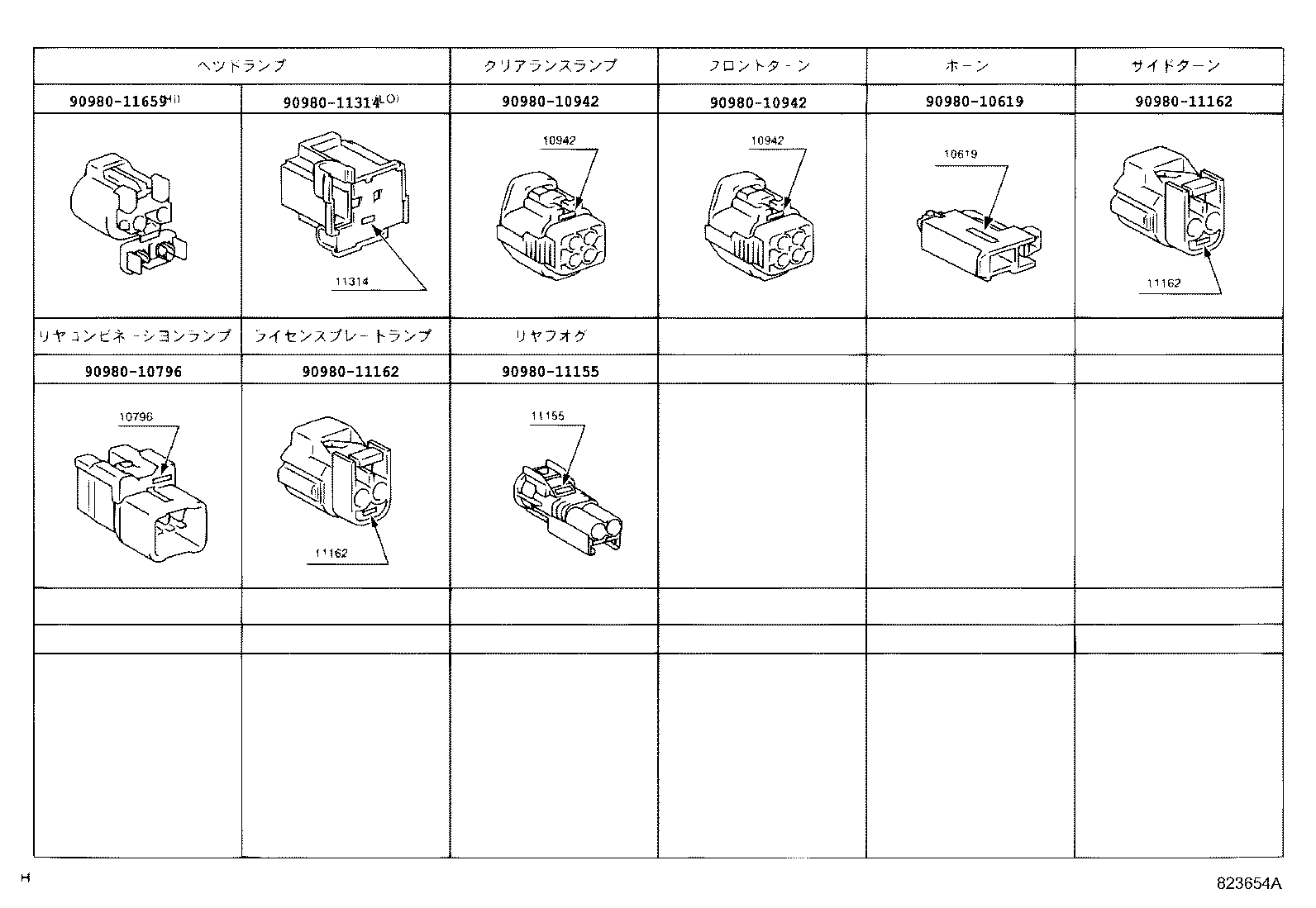

82824 Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
