Toyota Will Cypha

2002-09 → 2005-07 · chassis NCP7# · catalogue 118110 · Japan

Supported model Data version 2006-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

5 part groups · 2 illustrations

Illustrations

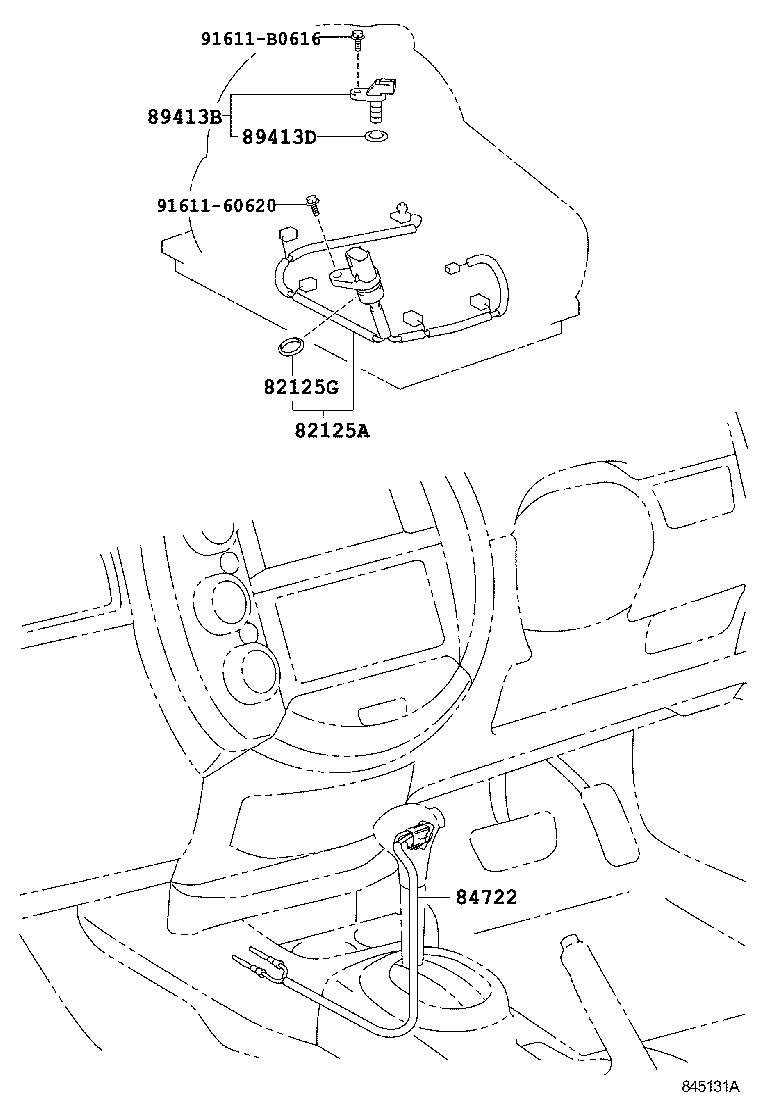

Figure 845130B 845130B 2002-09 → 2005-07 Figure 845131A 845131A 2002-09 → 2005-07

Part groups

PNCDescription
82125A Wire, Transmission
82125G Ring, O(FOR TRANSMISSION WIRE)
84722 Switch, Transmission Control
89413B Sensor, Transmission Revolution
89413D Ring, O(FOR TRANSMISSION REVOLUTION SENSOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
