Toyota Will Cypha

2002-09 → 2005-07 · chassis NCP7# · catalogue 118110 · Japan

Supported model Data version 2006-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

14 part groups · 2 illustrations

Illustrations

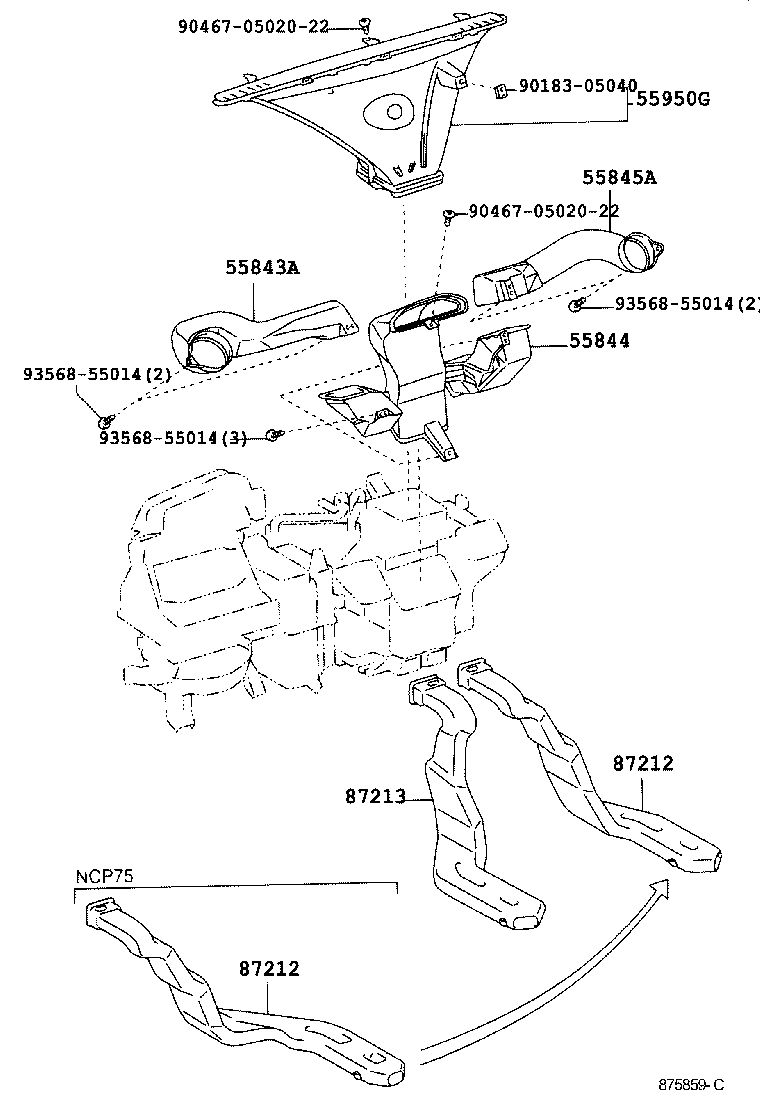

Figure 875858A 875858A 2002-09 → — Figure 875859C 875859C 2002-09 → —

Part groups

PNCDescription
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55901 Base Sub-assy, Heater Control
55912C Housing, Heater Control
55936B Switch, Center Cluster Module
55950G Nozzle Assy, Defroster
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
88625H Thermistor, Cooler (SOLAR SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88650B Amplifier Assy, Airconditioner
88669A Hose (FOR COOLER THERMISTOR)
88790B Thermistor Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
