Toyota Sienta
2003-09 → 2015-06 · chassis NCP8# · catalogue 119110 · Japan
Supported model
Data version 2013-07

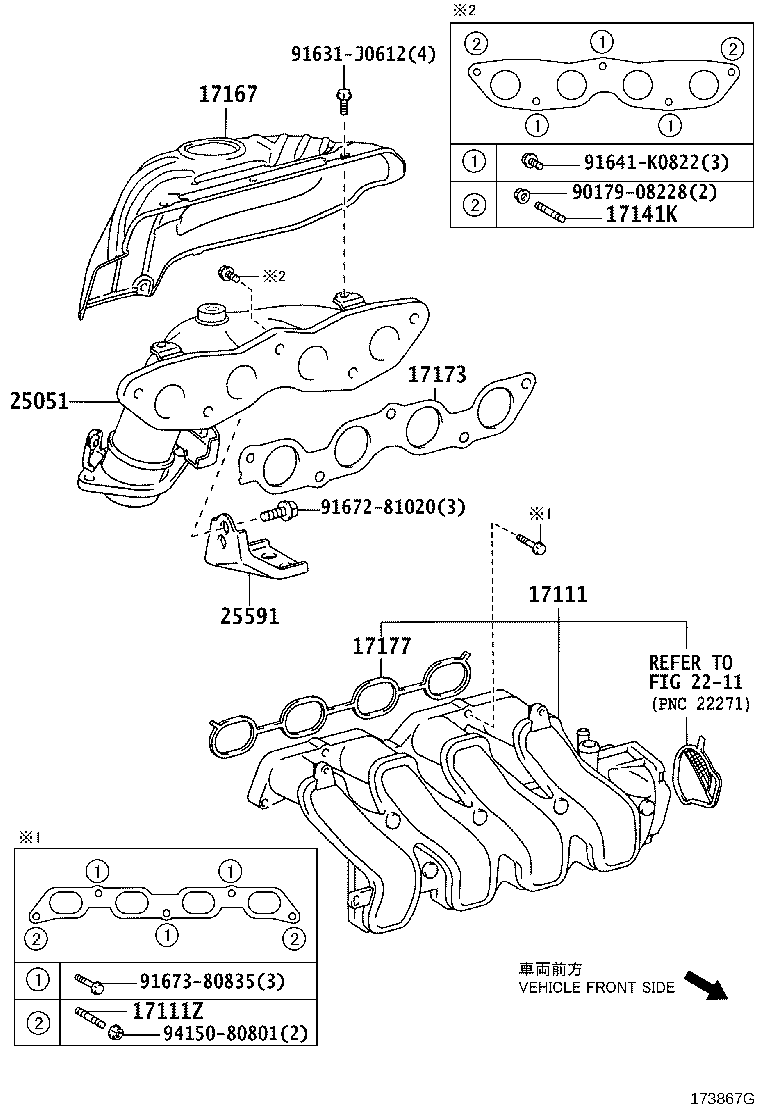

Manifold
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17111 | Manifold, Intake |
| 17111Z | Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD) |
| 17141 | Manifold, Exhaust |
| 17141K | Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) |
| 17167 | Insulator, Exhaust Manifold Heat, NO.1 |
| 17173 | Gasket, Exhaust Manifold TO Head |
| 17177 | Gasket, Intake Manifold TO Head, NO.1 |
| 17178 | Gasket, Intake Manifold TO Head, NO.2 |
| 25051 | Converter Sub-assy, Exhaust Manifold |
| 25591 | Bracket, Manifold Support |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
