Toyota Sienta

2003-09 → 2015-06 · chassis NCP8# · catalogue 119110 · Japan

Supported model Data version 2013-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

8 part groups · 2 illustrations

Illustrations

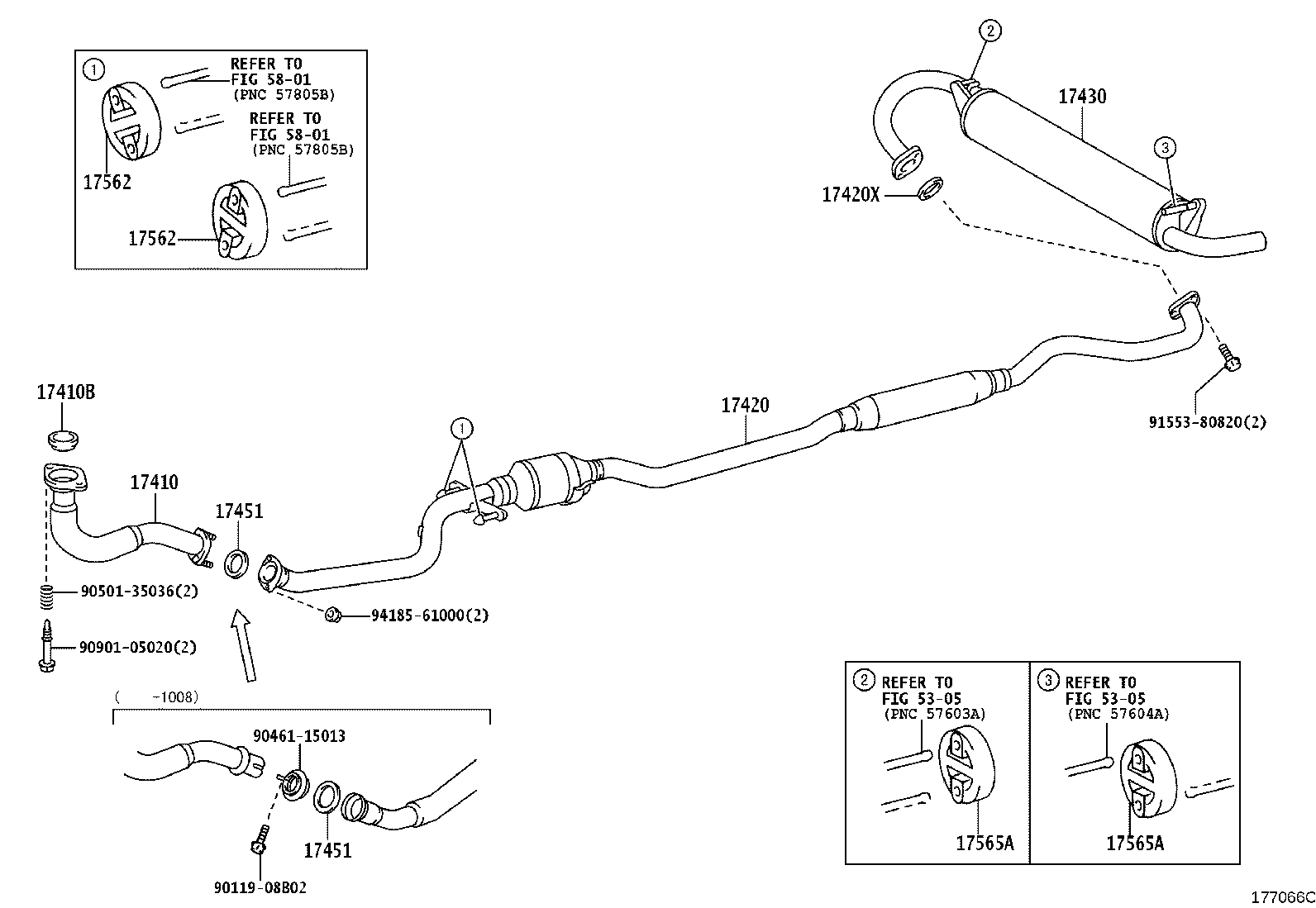

Figure 173873B 173873B 2003-09 → — Figure 177066C 177066C 2003-09 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17562 Support, Exhaust Pipe, NO.2
17565A Support, Exhaust Pipe, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
