Toyota Sienta

2003-09 → 2015-06 · chassis NCP8# · catalogue 119110 · Japan

Supported model Data version 2013-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

11 part groups · 2 illustrations

Illustrations

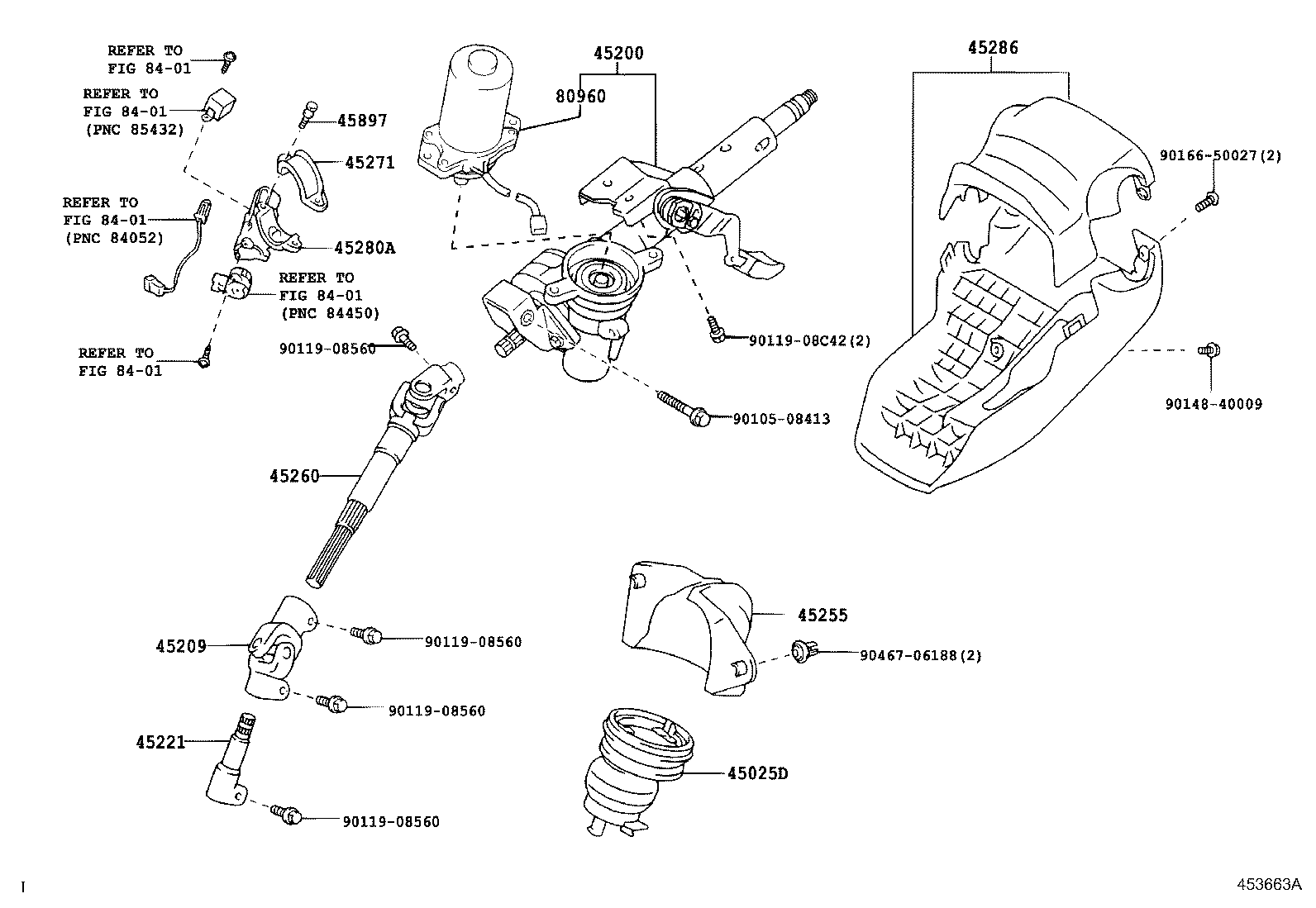

Figure 453662A 453662A 2003-09 → — Figure 453663A 453663A 2003-09 → —

Part groups

PNCDescription
45025D Cover Sub-assy, Steering Column Hole, NO.1
45200 Post Assy, Steering
45209 Yoke Sub-assy, Steering Sliding
45221 Shaft, Steering Intermediate
45255 Plate, Steering Column Hole Cover
45260 Shaft Assy, Steering Intermediate, NO.2
45271 Clamp, Steering Column, Upper
45280A Bracket Assy, Steering Column, Upper
45286 Cover, Steering Column
45897 Bolt, Steering Lock Set
80960 Motor Assy, Power Steering
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
