Toyota Sienta

2003-09 → 2015-06 · chassis NCP8# · catalogue 119110 · Japan

Supported model Data version 2013-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Parking Brake & Cable

13 part groups · 4 illustrations

Illustrations

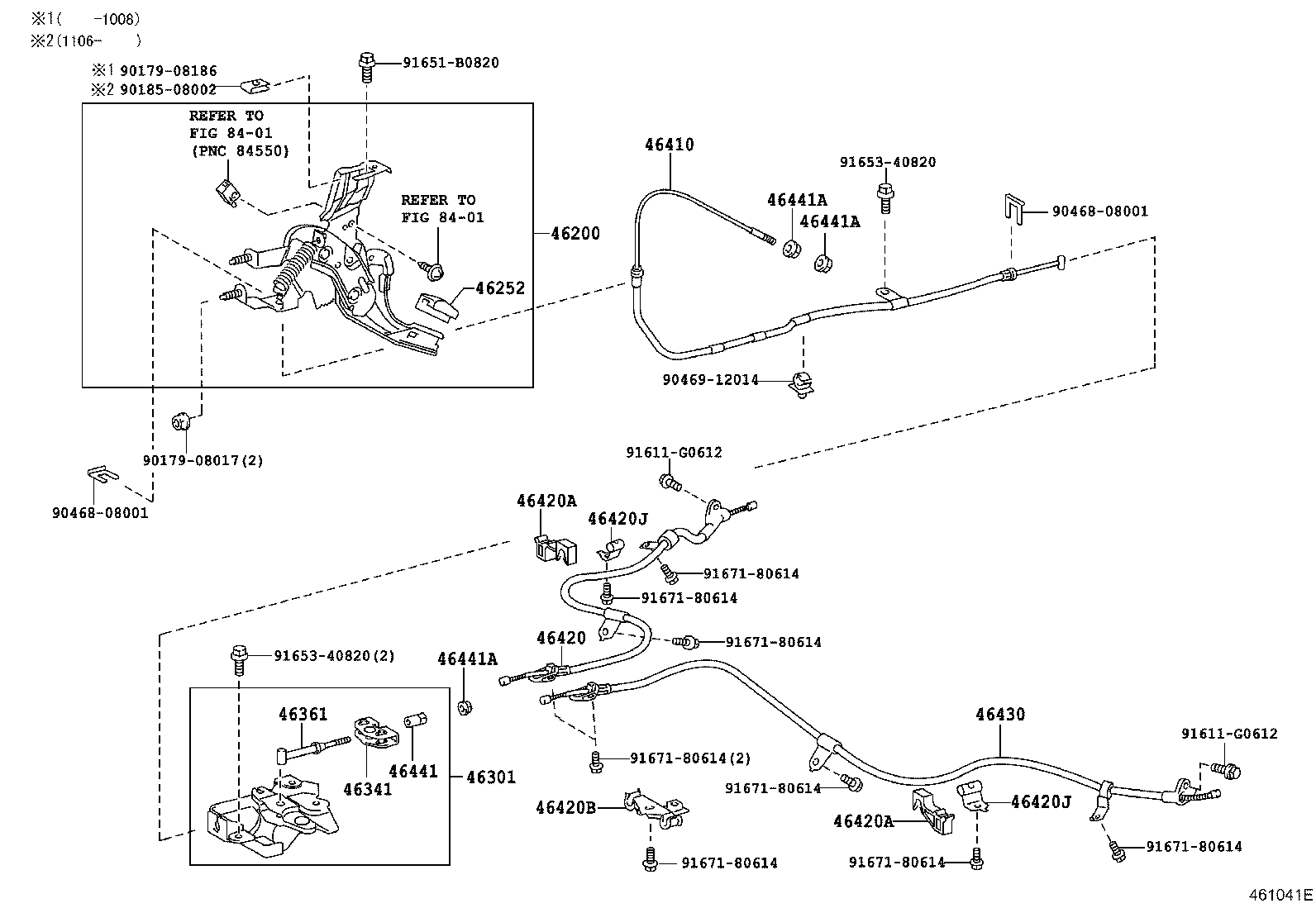

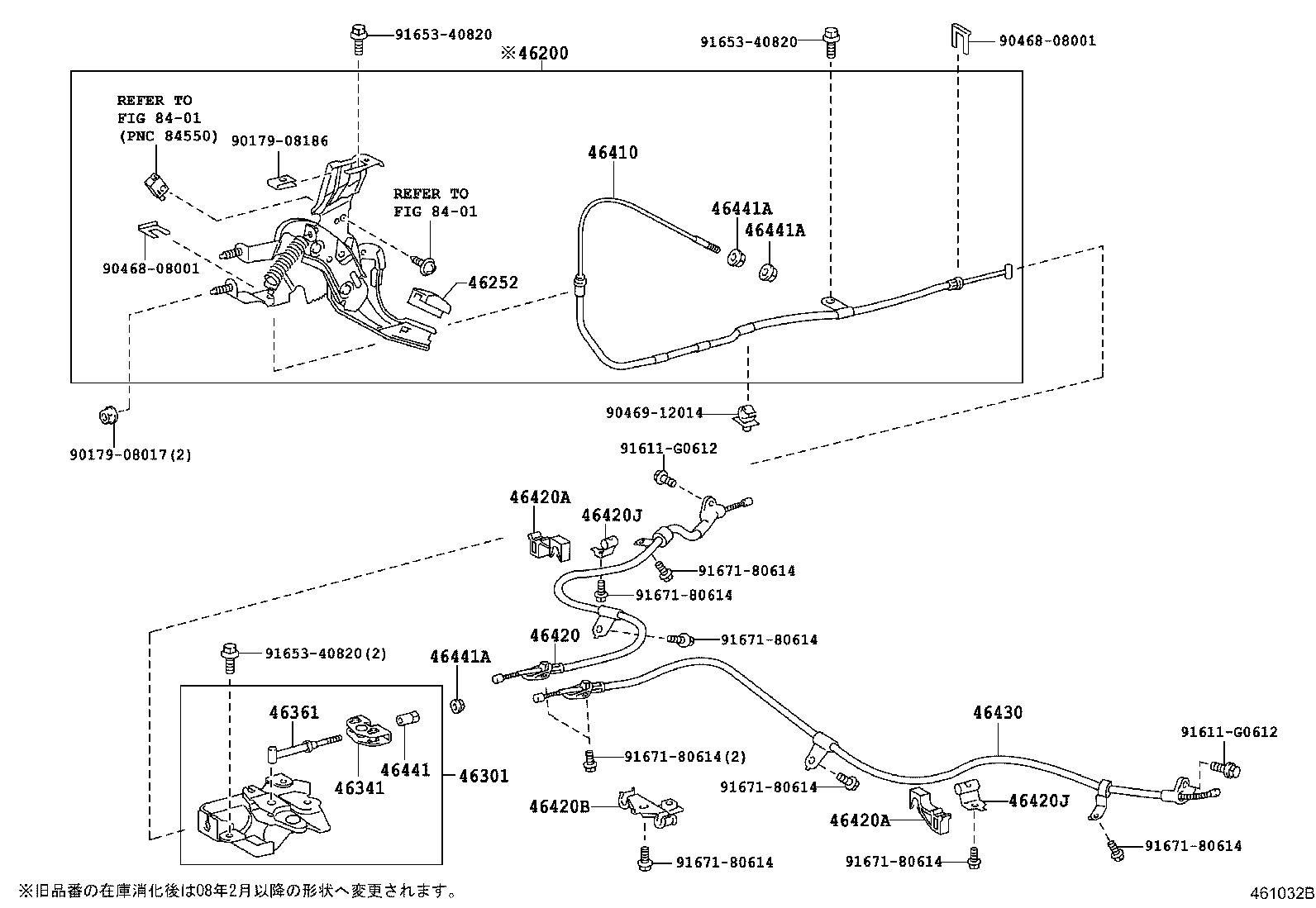

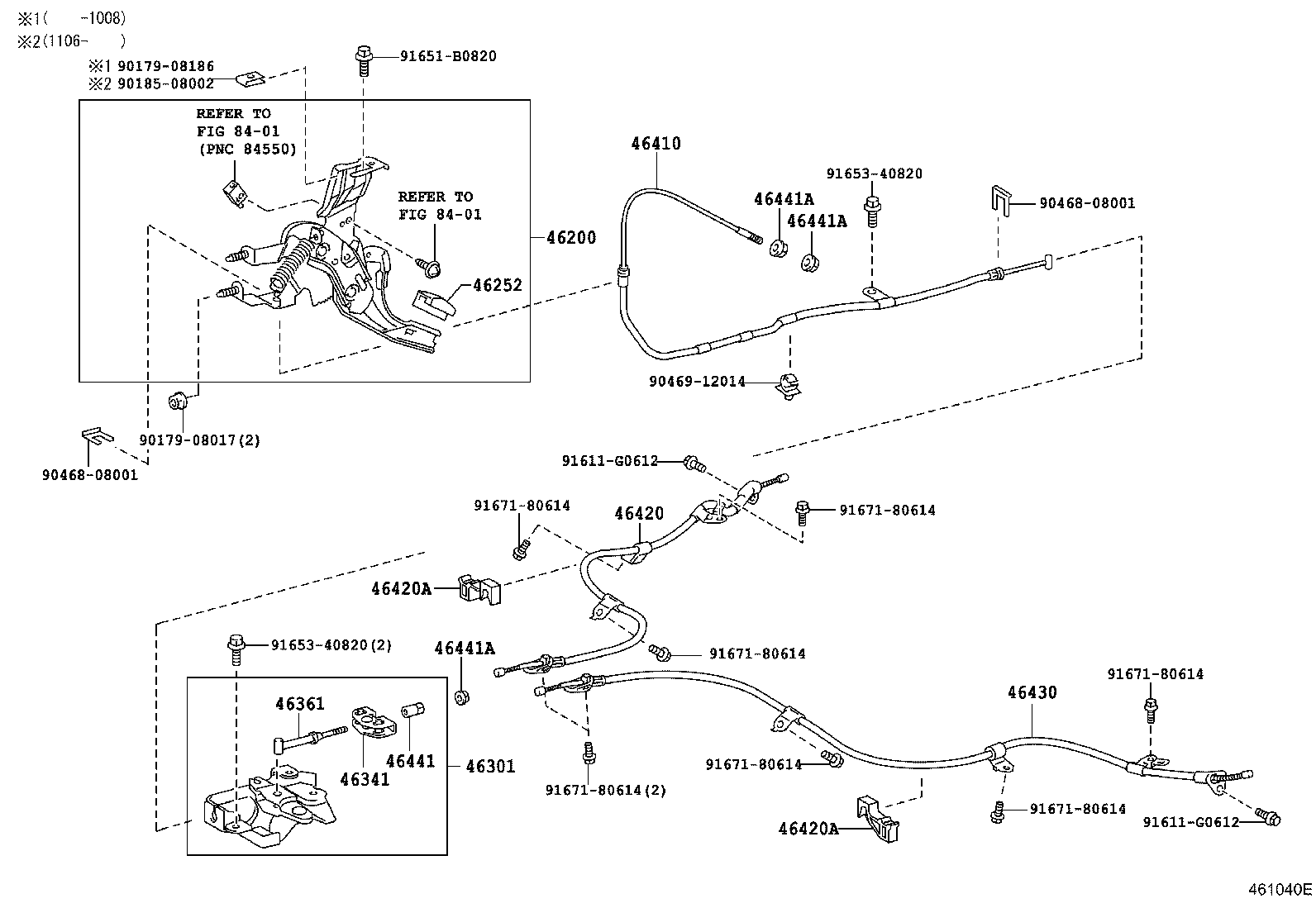

Figure 461031B 461031B 2003-09 → 2008-02 Figure 461040E 461040E 2008-02 → — Figure 461032B 461032B 2003-09 → 2008-02 Figure 461041E 461041E 2008-02 → —

Part groups

PNCDescription
46200 Pedal Assy, Parking Brake Control
46252 Pad, Parking Pedal
46301 Lever Sub-assy, Parking Brake Intermediate
46341 Equalizer, Parking Brake
46361 Rod, Parking Brake Pull
46410 Cable Assy, Parking Brake, NO.1
46420 Cable Assy, Parking Brake, NO.2
46420A Clamp, NO.1(FOR PARKING BRAKE CABLE)
46420B Clamp, NO.2(FOR PARKING BRAKE CABLE)
46420J Clamp, NO.3(FOR PARKING BRAKE CABLE)
46430 Cable Assy, Parking Brake, NO.3
46441 Nut, Wire Adjusting, NO.1
46441A Nut, Wire Adjusting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
