Toyota Sienta

2003-09 → 2015-06 · chassis NCP8# · catalogue 119110 · Japan

Supported model Data version 2013-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

14 part groups · 4 illustrations

Illustrations

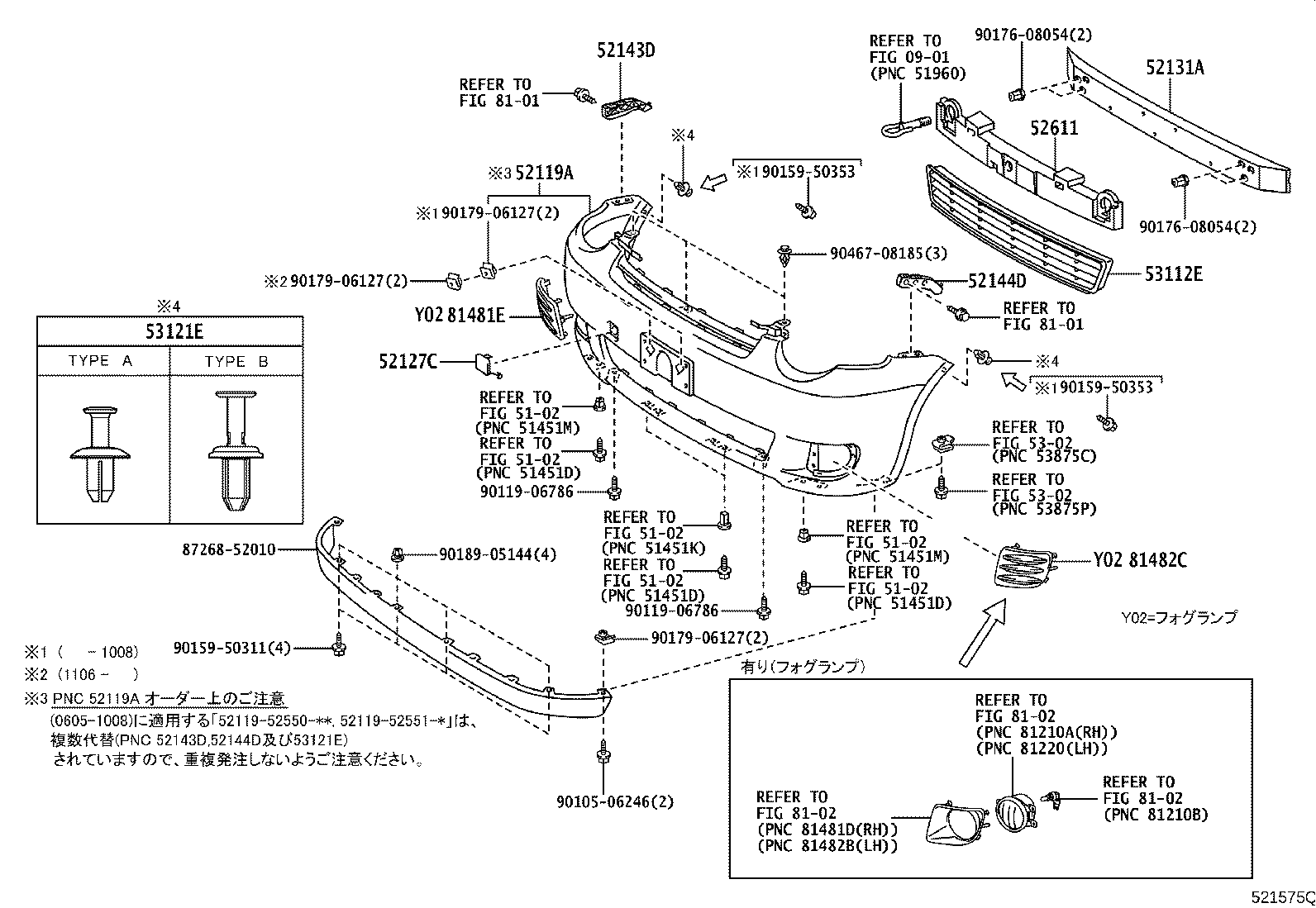

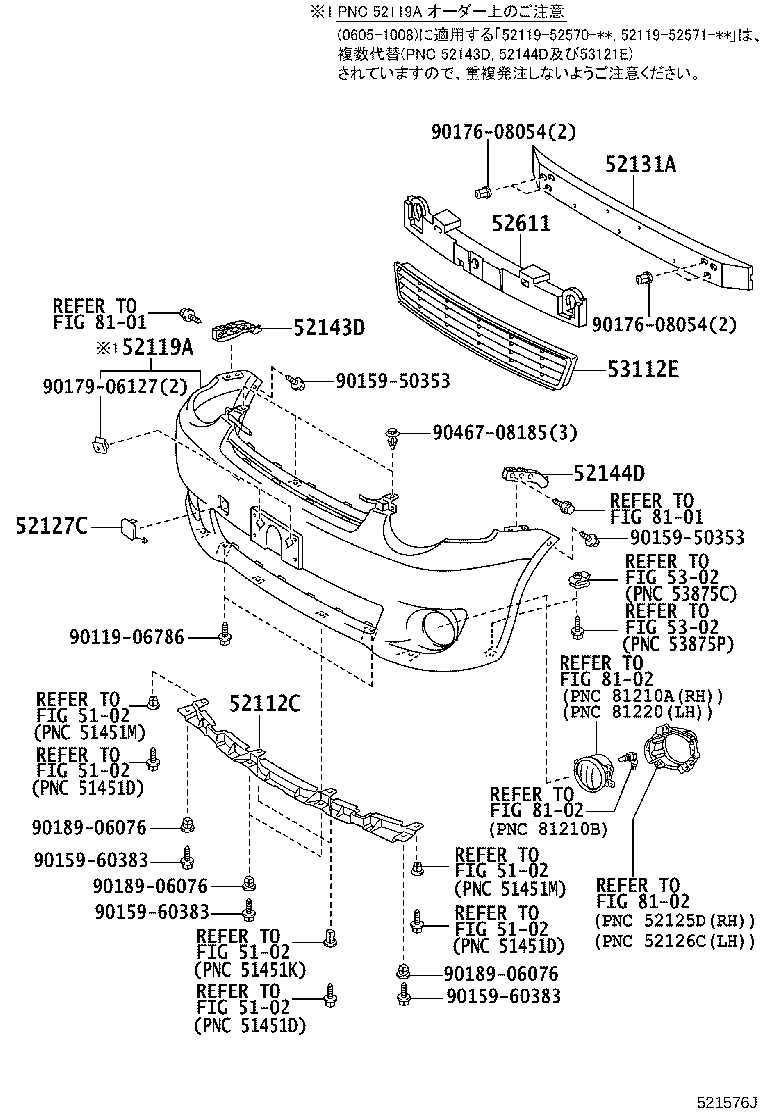

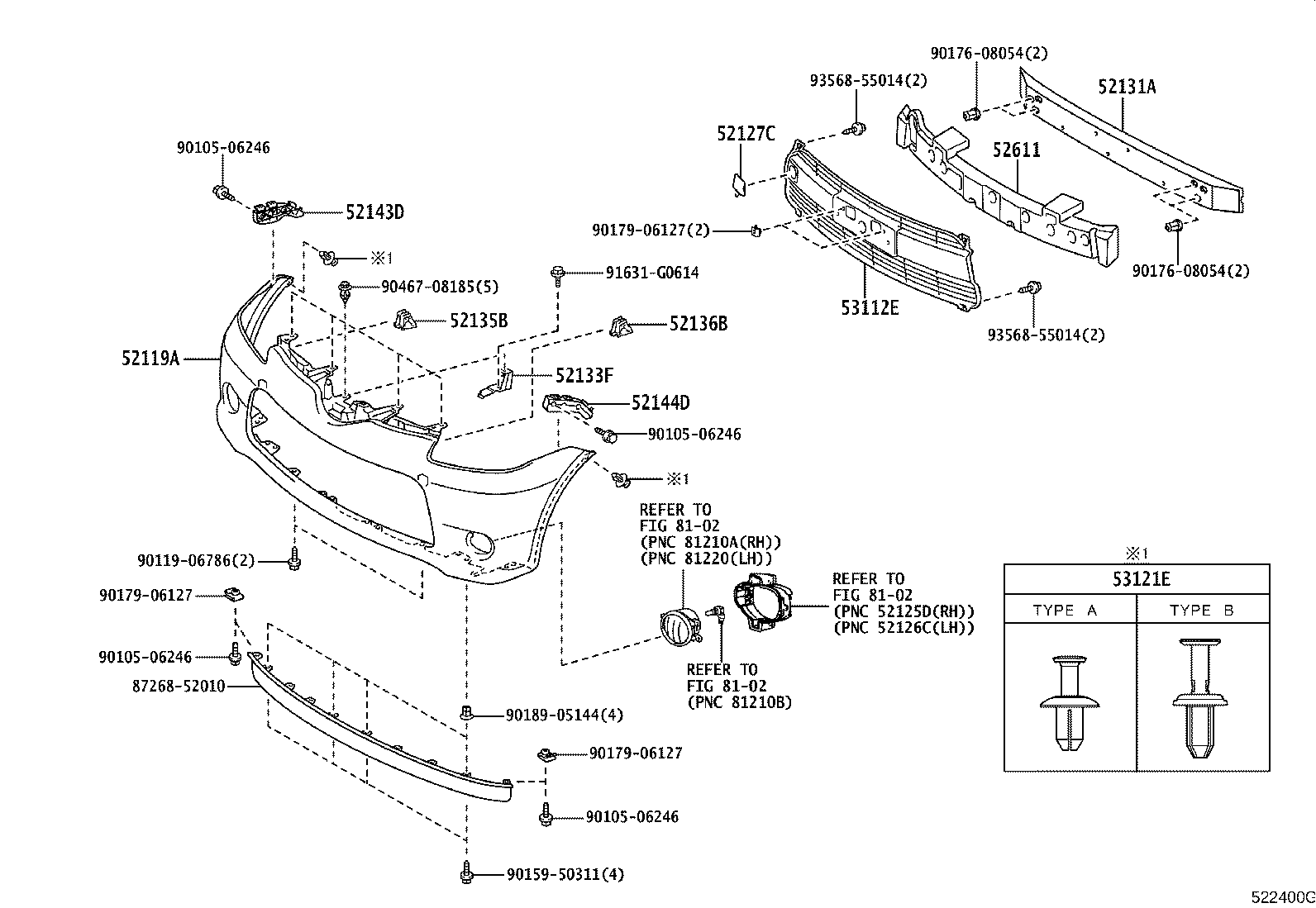

Figure 521050I 521050I 2003-09 → 2006-05 Figure 521575Q 521575Q 2006-05 → — Figure 521576J 521576J 2006-05 → 2010-08 Figure 522400G 522400G 2011-06 → —

Part groups

PNCDescription
52112C Extension, Front Bumper
52119A Cover, Front Bumper
52127C Cover, Front Bumper Hole
52131A Reinforcement, Front Bumper
52133F Bracket, Front Bumper, RH
52135B Bracket, Front Bumper, NO.1 RH
52136B Bracket, Front Bumper, NO.1 LH
52143D Bracket, Front Bumper Side, RH
52144D Bracket, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
53112E Grille, Radiator, Lower NO.1
53121E Clip(FOR FRONT BUMPER), NO.1
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
