Toyota Sienta

2003-09 → 2015-06 · chassis NCP8# · catalogue 119110 · Japan

Supported model Data version 2013-07

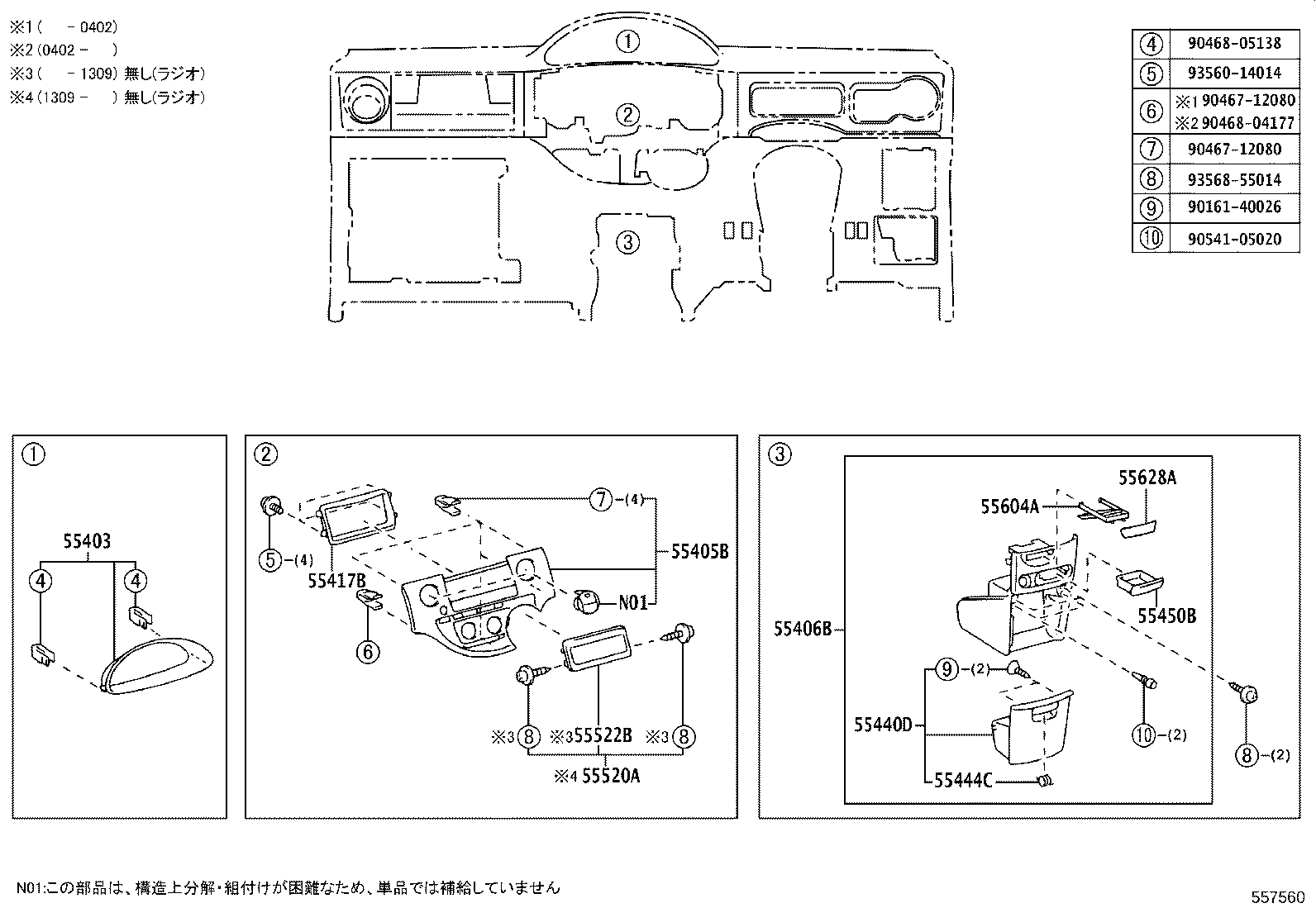

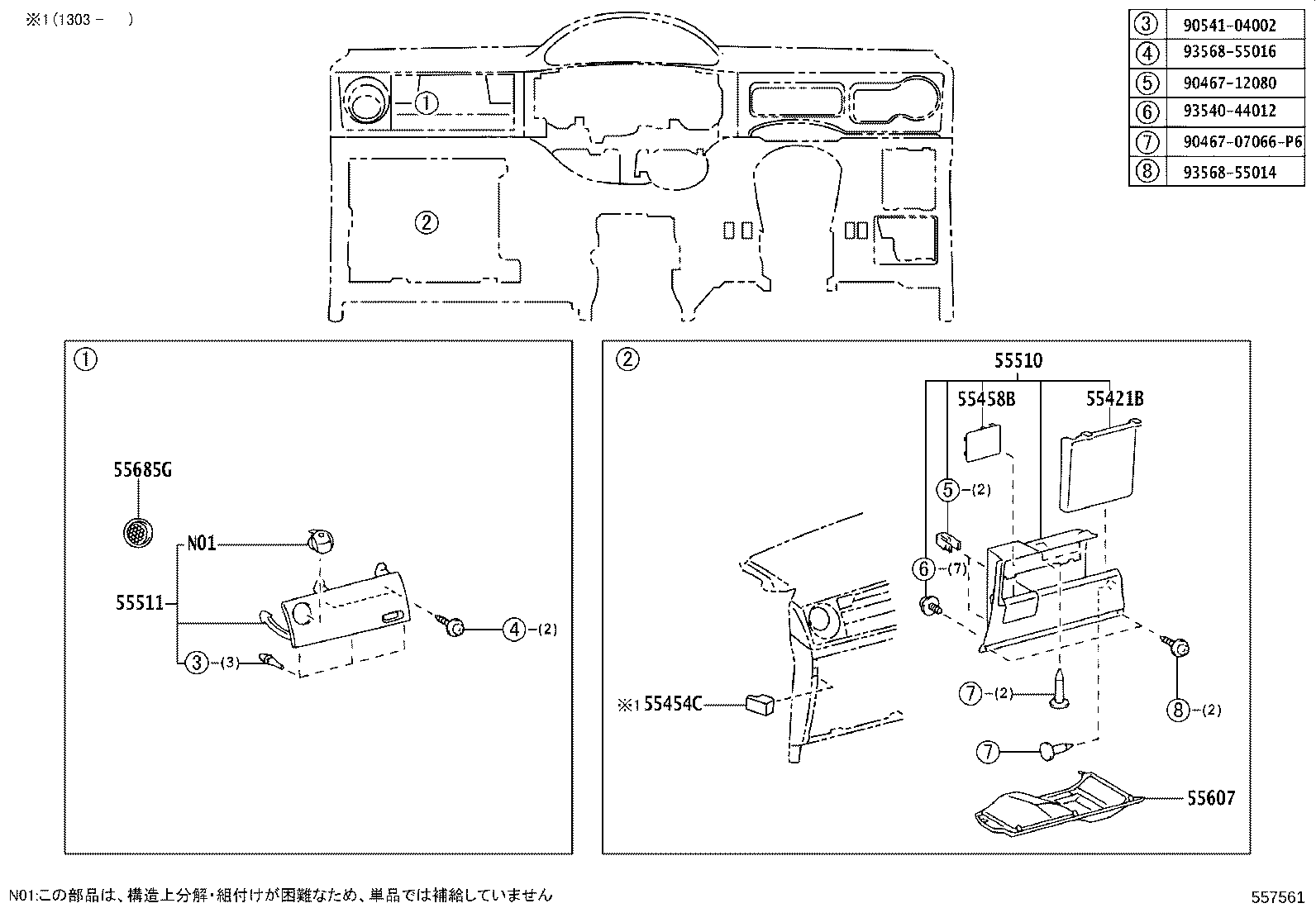

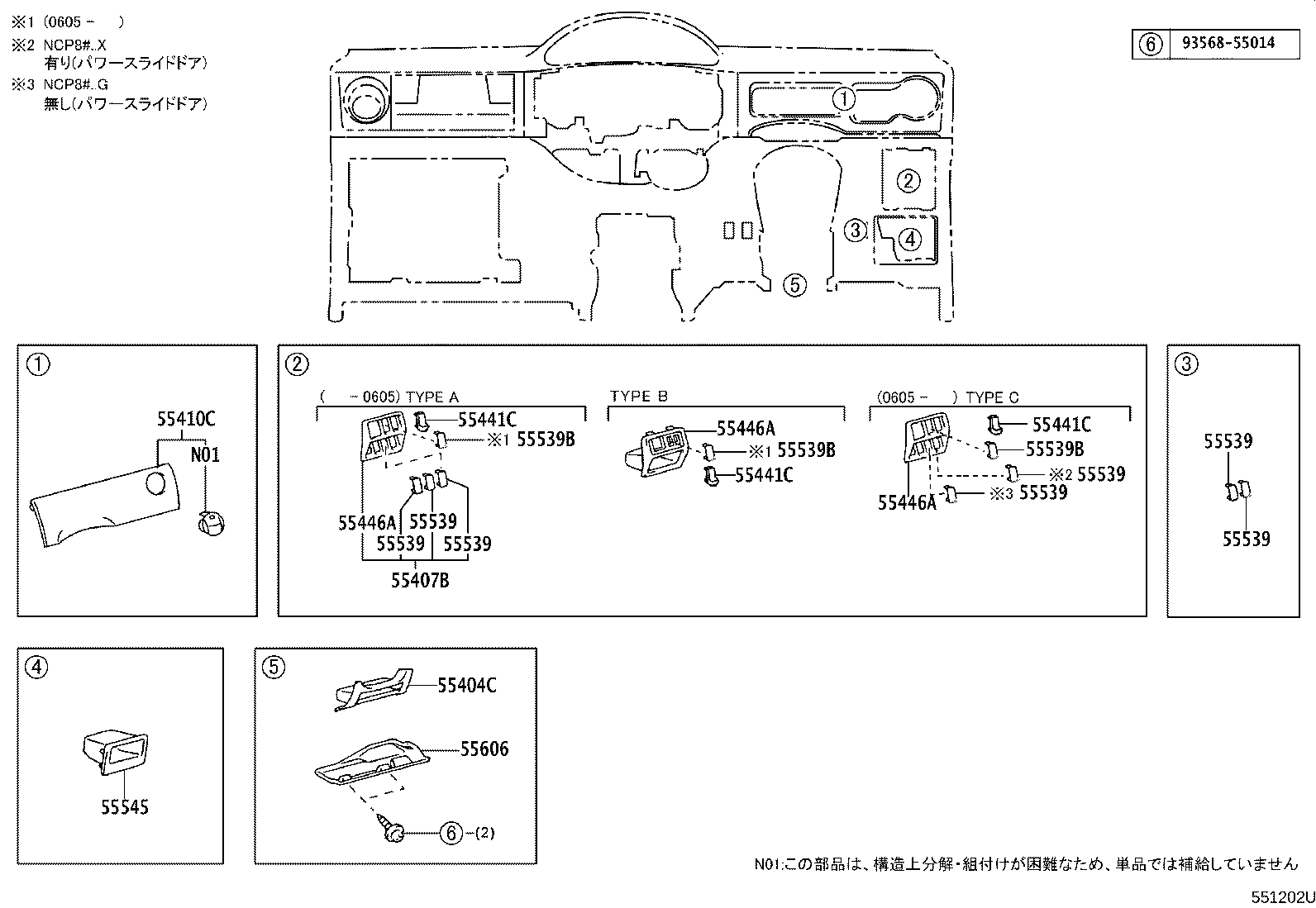

Instrument Panel & Glove Compartment

38 part groups · 4 illustrations

PNC	Description
55301	Panel Sub-assy, Instrument
55306A	Brace Sub-assy, Instrument Panel, NO.1
55307C	Brace Sub-assy, Instrument Panel, NO.2
55310	Panel Assy, Instrument, Lower
55331	Reinforcement, Instrument Panel
55345A	Clip, Instrument Panel, NO.1
55355	Cushion, Instrument Panel, NO.1
55403	Hood Sub-assy, Meter
55404C	Panel Sub-assy, Instrument Cluster Finish, NO.2
55405B	Panel Sub-assy, Instrument Cluster Finish, Center
55406B	Panel Sub-assy, Instrument Cluster Finish, Lower Center
55407B	Base Sub-assy, Switch Hole
55410C	Panel Assy, Instrument Cluster Finish
55417B	Retainer, Radio Tuner Finish
55421B	Panel, Instrument Cluster Finish, Upper
55423E	Cushion, Center Cluster, NO.1
55440D	Box Assy, Instrument Panel
55441C	Box, Instrument Panel Coin
55444C	Spring, Instrument Panel Box
55446A	Base, Switch Hole, NO.1
55450B	Box Assy, Coin
55453D	Pad, Instrument Panel Safety, NO.1
55454B	Pad, Instrument Panel Safety, NO.2
55454C	Pad, Instrument, Lower LH
55458B	Cover, Instrument, Lwr
55510	Door Assy, Glove Compartment
55511	Door, Glove Compartment
55520A	Cover Assy, Stereo Opening
55522B	Cover, Radio Tuner Opening
55539	Cover, Spare Switch Hole
55539B	Cover, Spare Switch Hole, NO.2
55545	Cover, Fuse Box Opening
55604A	Holder Sub-assy, Instrument Panel Cup
55606	Cover Sub-assy, Instrument Panel Under, NO.1
55607	Cover Sub-assy, Instrument Panel Under, NO.2
55628A	Knob, Instrument Panel Cup Holder
55685G	Net, Instrument Panel Register Guard
73960A	Airbag Assy, Instrument Panel Passenger W/O Door

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
