Toyota Sienta

2003-09 → 2015-06 · chassis NCP8# · catalogue 119110 · Japan

Supported model Data version 2013-07

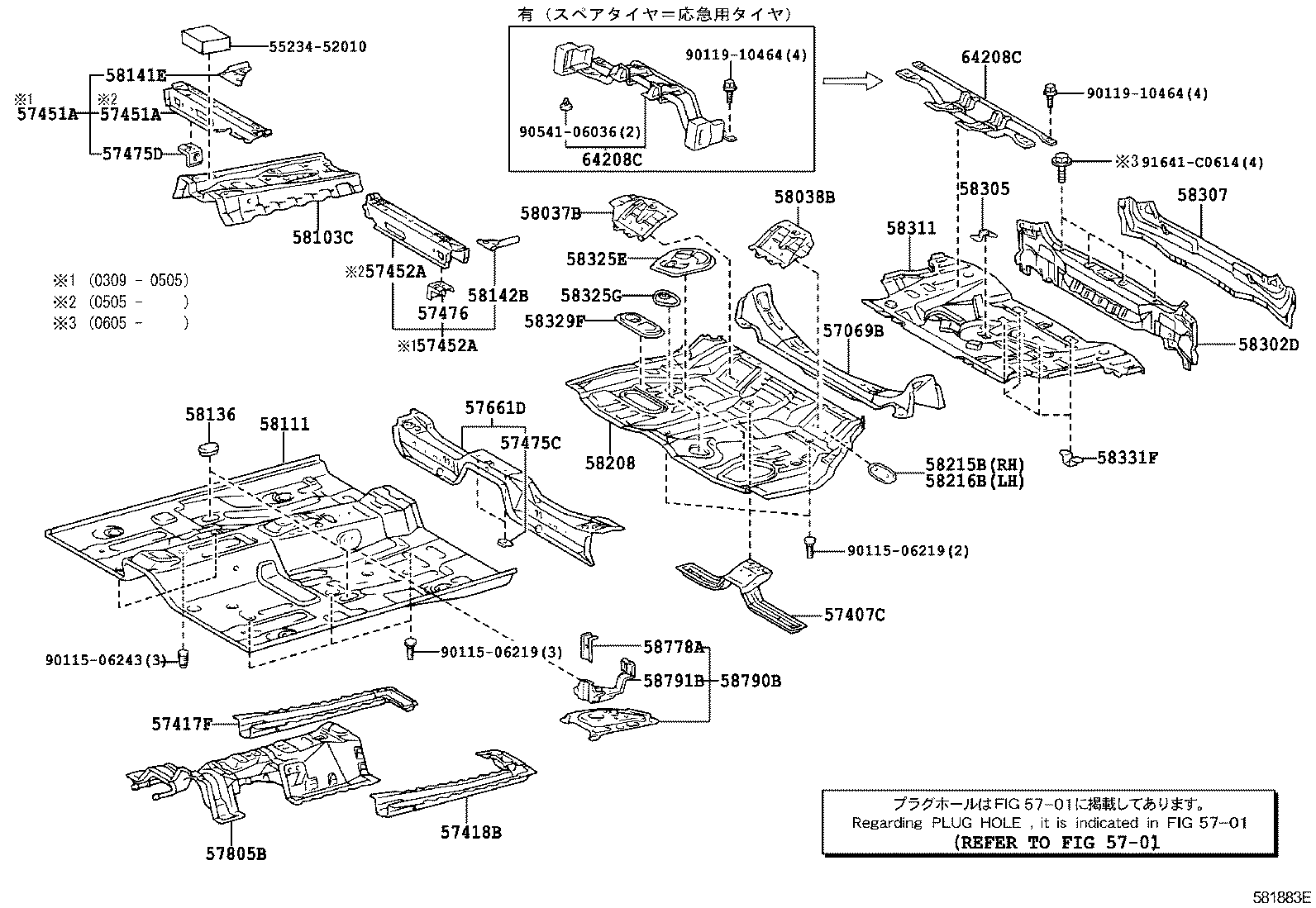

Floor Pan & Lower Back Panel

38 part groups · 2 illustrations

PNC	Description
57069B	Member Sub-assy, Rear Floor Cross, Center
57407C	Member Sub-assy, Center Floor Cross, NO.1
57417F	Reinforcement, Front Floor Under, RH
57418B	Reinforcement, Front Floor Under, LH
57451A	Member, Front Floor Cross, RH
57452A	Member, Front Floor Cross, NO.2
57475C	Plate, Front Floor Crossmember
57475D	Plate, Front Floor Crossmember, RH
57476	Plate, Front Floor Crossmember, LH
57661D	Member, Rear Floor Cross, Front
57805B	Reinforcement Sub-assy, Belt Anchor, RH
58037B	Reinforce, Center Pillar TO Floor, RH
58038B	Reinforce, Center Pillar TO Floor, LH
58103C	Reinforcement Sub-assy, Front Floor, Front
58111	Pan, Front Floor
58117A	Reinforcement, Front Floor Side, RH
58118C	Reinforcement, Front Floor Side, LH
58136	Cover, Front Floor Hole
58141E	Reinforcement, Front Side Member TO Floor Pan, RH
58142B	Reinforcemnet, Front Side Member TO Floor Pan, LH
58161B	Reinforcement, Belt Anchor TO Floor Pan
58208	Pan, Center Floor
58215B	Bracket, Rear Seat Mounting, RH
58216B	Bracket, Rear Seat Mounting, LH
58251B	Brace, Floor Panel, Front
58285E	Cover, Center Floor Hole
58302D	Panel Sub-assy, Rear Floor, Front
58305	Bracket Sub-assy, Spare Wheel Clamp
58307	Panel Sub-assy, Body Lower Back
58311	Pan, Rear Floor
58325E	Cover, Rear Floor Service Hole
58325G	Cover, Rear Floor Service Hole
58329F	Cover, Rear Floor Service Hole, NO.2
58331F	Bracket, Rear Floor Heat Insulator, NO.3
58778A	Bracket, Jack Holder, NO.1
58790B	Carrier Assy, Jack
58791B	Carrier, Jack
64208C	Member Sub-assy, Room Partition Cross

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
