Toyota Sienta

2003-09 → 2015-06 · chassis NCP8# · catalogue 119110 · Japan

Supported model Data version 2013-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Member

50 part groups · 6 illustrations

Illustrations

614388 2003-09 → 2010-08

614388 2011-06 → —

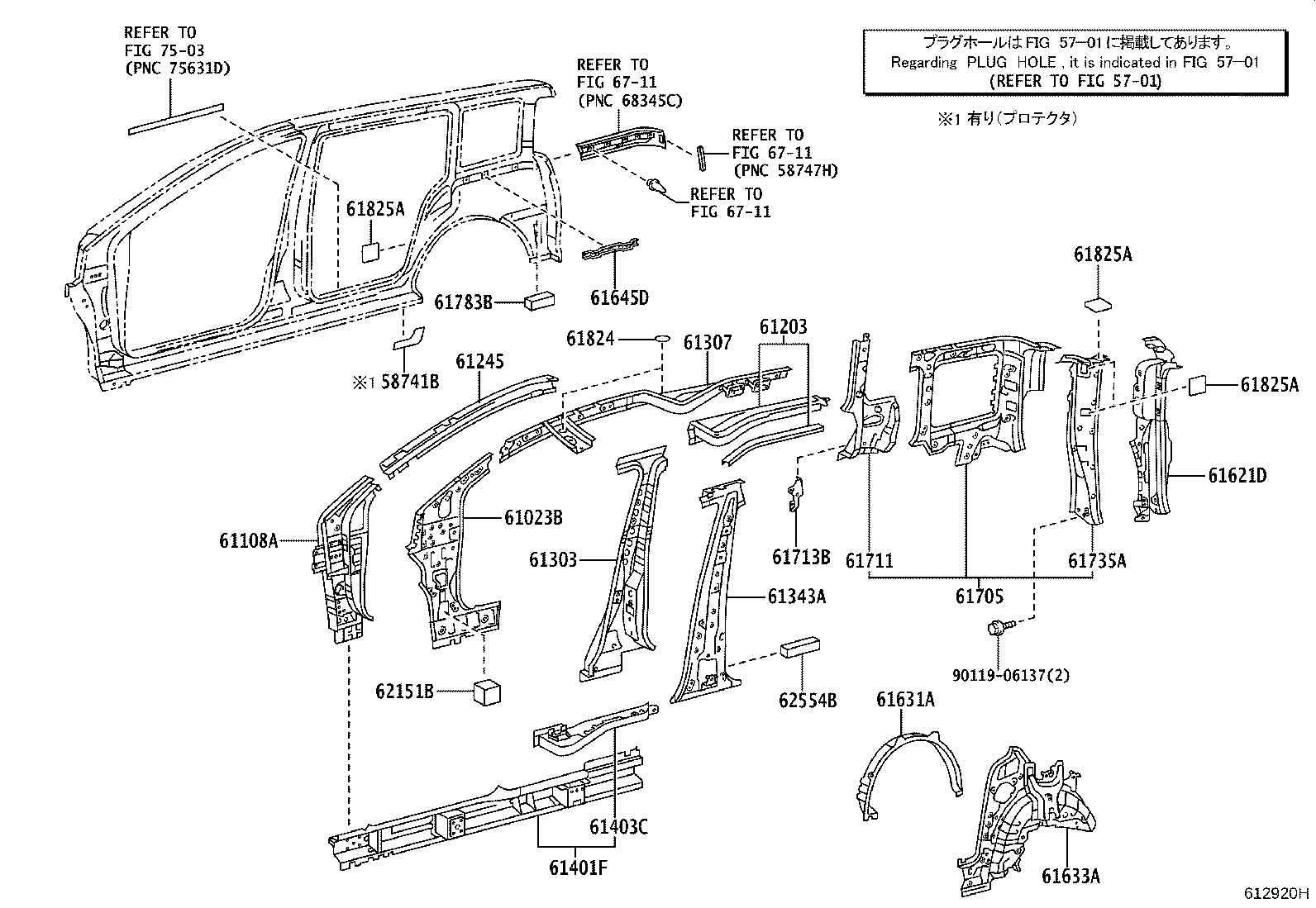

612920H 2003-09 → 2010-08

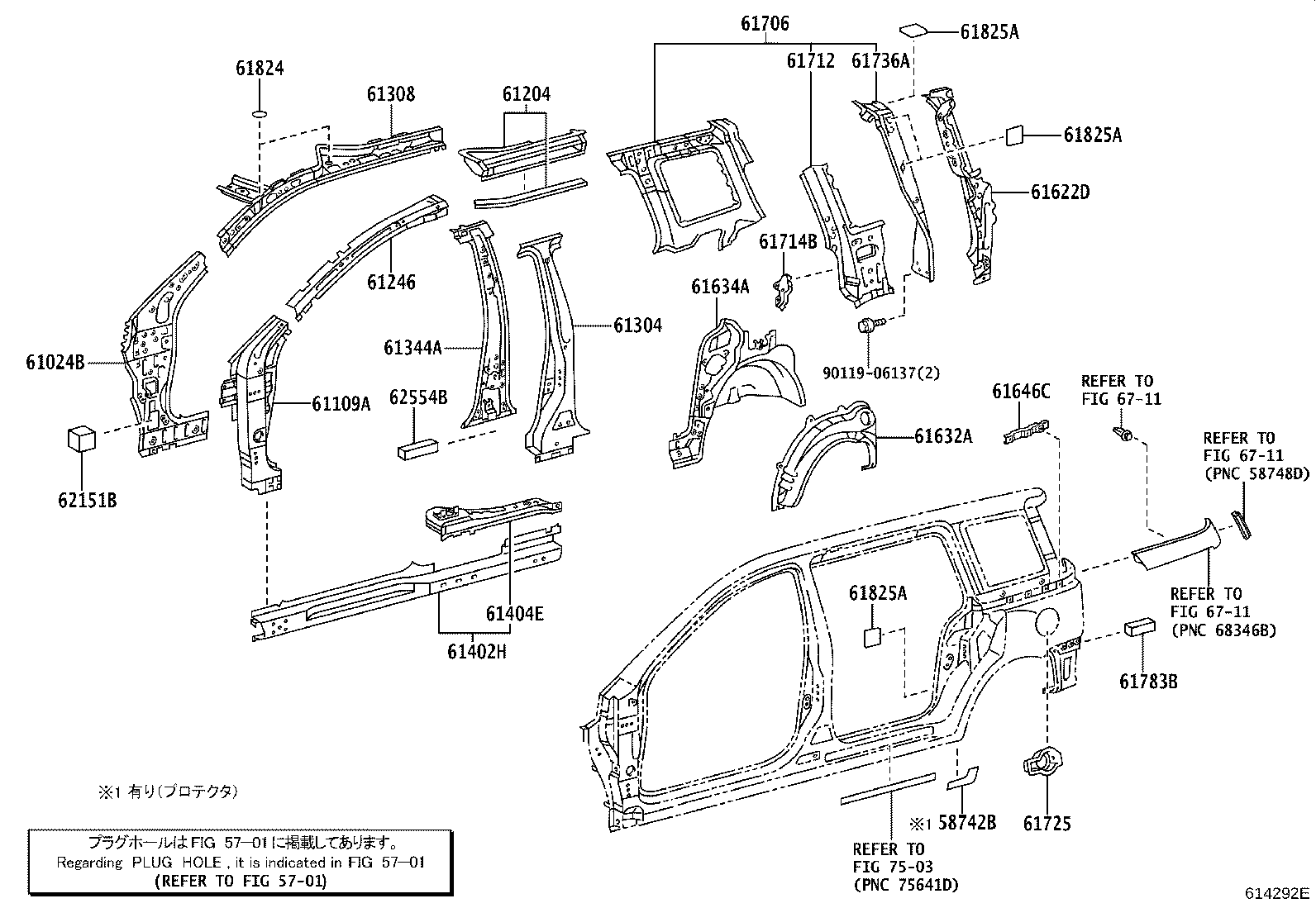

614292E 2003-09 → 2010-08

613872H 2011-06 → —

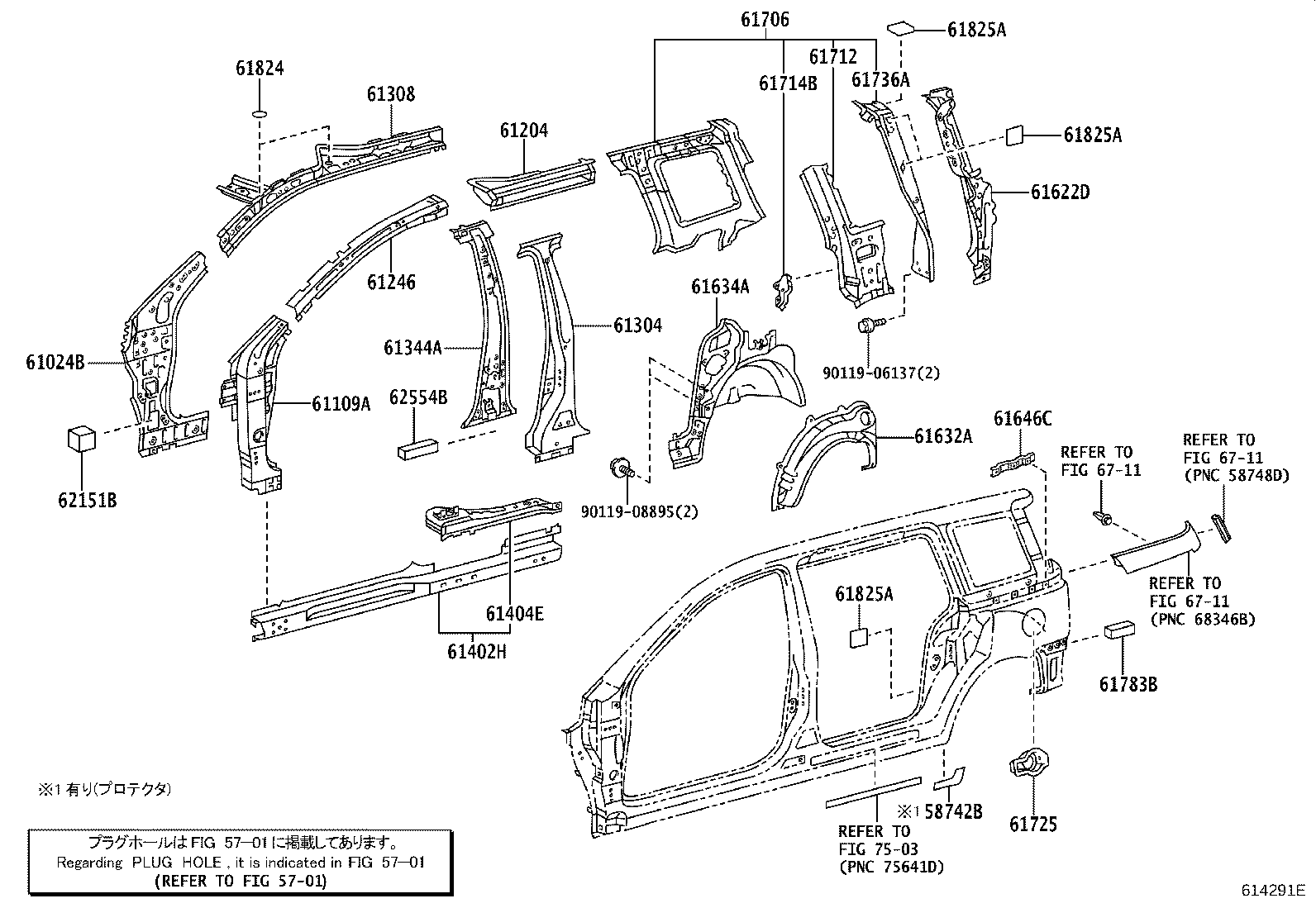

614291E 2011-06 → —

Part groups

PNC	Description
58741B	Protector, Quarter Panel, RH
58742B	Protector, Quarter Panel, LH
61023B	Pillar Sub-assy, Front Body, Inner RH
61024B	Pillar Sub-assy, Front Body, Inner LH
61108A	Reinforce Sub-assy, Front Body Pillar, Lower RH
61109A	Reinforce Sub-assy, Front Body Pillar, Lower LH
61131	Pillar, Front Body, Upper Outer RH
61132	Pillar, Front Body, Upper Outer LH
61203	Rail Sub-assy, Roof Side, Inner RH
61204	Rail Sub-assy, Roof Side, Inner LH
61211	Rail, Roof Side, Outer RH
61212	Rail, Roof Side, Outer LH
61245	Reinforcement, Roof Side Rail, Outer RH
61246	Reinforcement, Roof Side Rail, Outer LH
61303	Reinforce Sub-assy, Center Body Pillar, Upper RH
61304	Reinforce Sub-assy, Center Body Pillar, Upper LH
61307	Pillar Sub-assy, Center Body, Inner RH
61308	Pillar Sub-assy, Center Body, Inner LH
61311B	Pillar, Center Body, Outer RH
61312B	Pillar, Center Body, Outer LH
61343A	Pillar, Center Body, Inner RH
61344A	Pillar, Center Body, Inner LH
61401F	Reinforcement Sub-assy, Rocker Panel, RH
61402H	Reinforcement Sub-assy, Rocker Panel, LH
61403C	Reinforce Sub-assy, Rocker, Outer RH
61404E	Reinforce Sub-assy, Rocker, Outer LH
61611	Panel, Quarter, RH
61612	Panel, Quarter, LH
61621D	Trough, Back Door Opening, RH
61622D	Trough, Back Door Opening, LH
61631A	Panel, Quarter Wheel House, Outer RH
61632A	Panel, Quarter Wheel House, Outer LH
61633A	Panel, Quarter Wheel House, Inner RH
61634A	Panel, Quarter Wheel House, Inner LH
61645D	Retainer, Quarter, Inner
61646C	Retainer, Quarter, Inner
61705	Panel Sub-assy, Roof Side, Inner RH
61706	Panel Sub-assy, Roof Side, Inner LH
61711	Panel, Roof Side, Outer RH
61712	Panel, Roof Side, Outer LH
61713B	Reinforce, Roof Side, Outer RH
61714B	Reinforce, Roof Side, Outer LH
61725	Box, Fuel Inlet
61735A	Panel, Roof Side, Inner Rear RH
61736A	Panel, Roof Side, Inner Rear LH
61783B	Pad, Rear Wheel Opening Extension, NO.1
61824	Plate, Noise Control, NO.1
61825A	Plate, Noise Control, NO.2
62151B	Pad, Cowl Side Silencer
62554B	Pad, Pillar, NO.4

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
