Toyota Sienta

2003-09 → 2015-06 · chassis NCP8# · catalogue 119110 · Japan

Supported model Data version 2013-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Window Glass

22 part groups · 3 illustrations

Illustrations

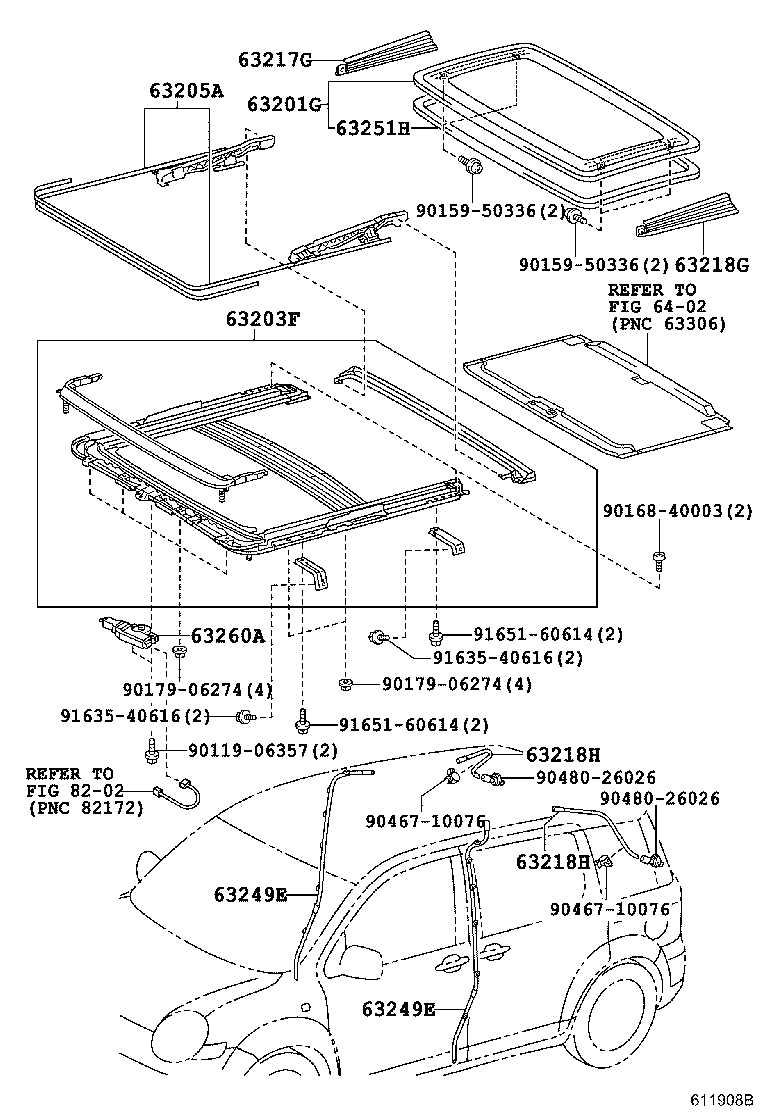

Figure 611907C 611907C 2003-09 → 2010-08 Figure 611908B 611908B 2003-09 → 2006-05 Figure 613873A 613873A 2011-06 → —

Part groups

PNCDescription
63102A Panel Sub-assy, Windshield Header
63103A Reinforcement Sub-assy, Roof Panel
63105D Frame Sub-assy, Back Window, Upper
63111 Panel, Roof
63118 Support, Roof Panel, RH
63119 Support, Roof Panel, LH
63125 Reinforcement, Roof Panel, NO.2
63138 Bracket, Dome Lamp, NO.2
63141G Reinforcement, Roof Panel, NO.1
63143B Reinforcement, Roof Panel, NO.3
63144B Reinforcement, Roof Panel, NO.4
63148A Reinforcement, Roof Panel, NO.7
63149D Reinforcement, Roof Panel, NO.8
63201G Glass Sub-assy, Sliding Roof
63203F Housing Sub-assy, Sliding Roof
63205A Cable Sub-assy, Sliding Roof Drive
63217G Garnish, Sliding Roof Side, RH
63218G Garnish, Sliding Roof Side, LH
63218H Hose, Sliding Roof Drain
63249E Hose, Sliding Roof Drain
63251H Weatherstrip, Sliding Roof
63260A Gear Sub-assy, Sliding Roof Drive
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
