Toyota Sienta
2003-09 → 2015-06 · chassis NCP8# · catalogue 119110 · Japan
Supported model
Data version 2013-07

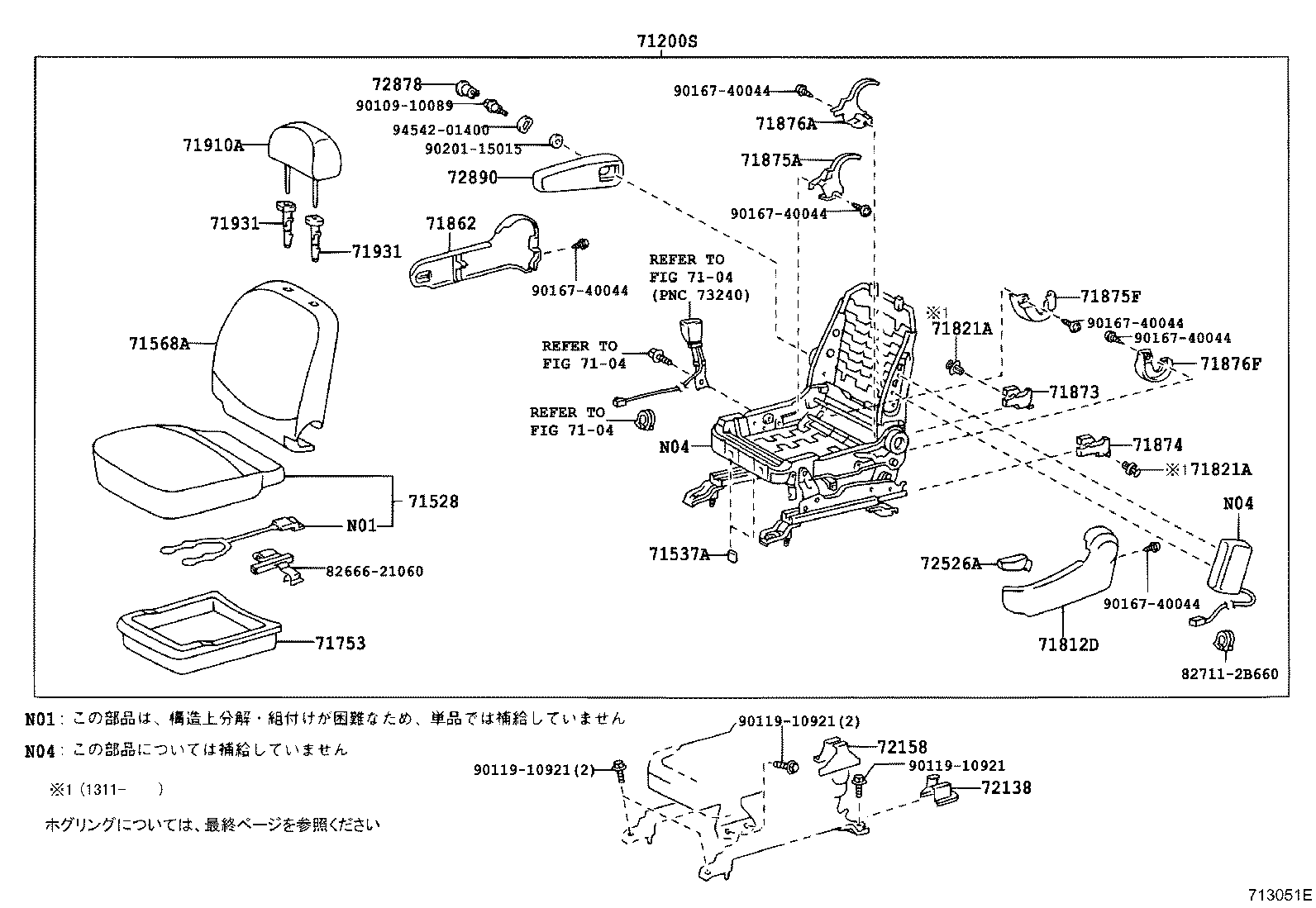

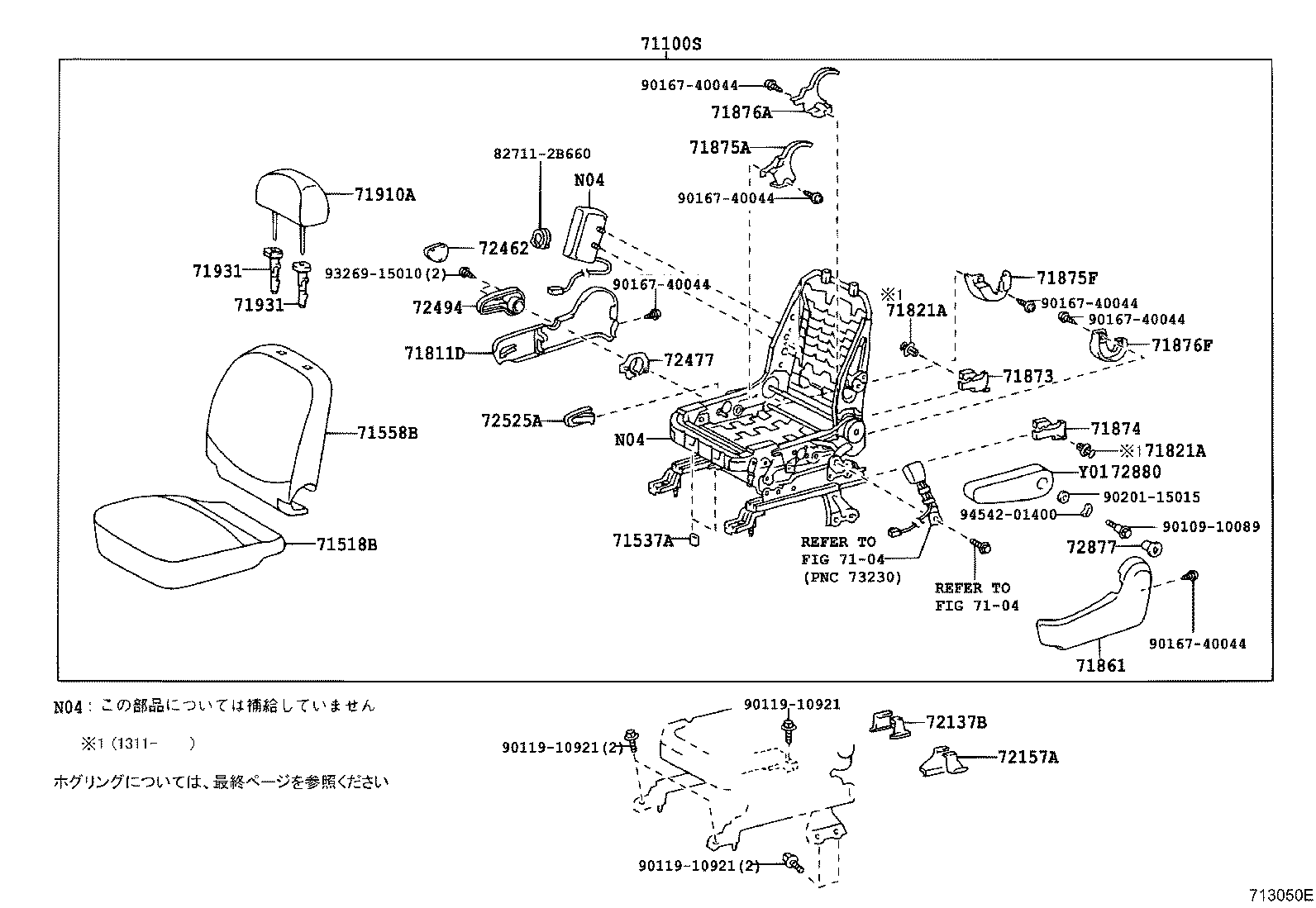

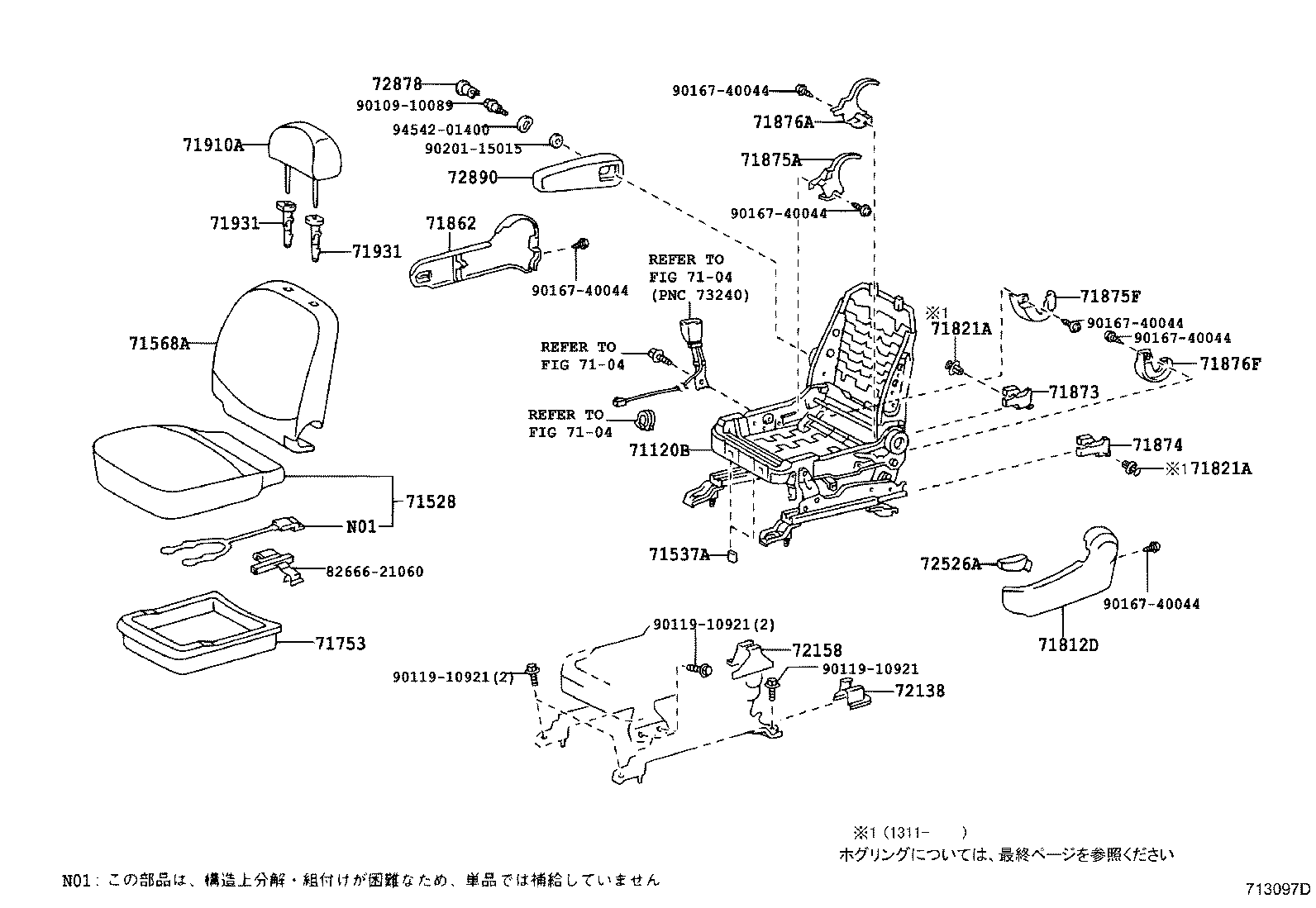

Front Seat & Seat Track
36 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 71100S | Seat Assy, Front RH |
| 71110A | Frame Assy, Front Seat W/Adjuster, RH |
| 71120B | Frame Assy, Front Seat W/Adjuster, LH |
| 71200S | Seat Assy, Front LH |
| 71518B | Pad, Front Seat Cushion W/Cover, RH |
| 71528 | Pad, Front Seat Cushion W/Cover, LH |
| 71537A | Protector, Front Seat Cushion |
| 71558B | Pad, Front Seatback W/Cover, RH |
| 71568A | Pad, Front Seatback W/Cover, LH |
| 71753 | Tray, Front Seat Under |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 71821A | Clip (FOR FRONT SEAT SIDE SHIELD) |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71873 | Shield, Front Seat Cushion, Lower RH |
| 71874 | Shield, Front Seat Cushion, Lower LH |
| 71875A | Cover, Reclining Adjuster Inside, RH |
| 71875F | Cover, Reclining Adjuster Inside, RH (FOR RH SEAT) |
| 71876A | Cover, Reclining Adjuster Inside, LH |
| 71876F | Cover, Reclining Adjuster Inside, LH (FOR RH SEAT) |
| 71910A | Headrest Assy, Front Seat |
| 71931 | Support, Front Seat Headrest |
| 72137B | Cover, Seat Track, RH |
| 72138 | Cover, Seat Track, Outer LH |
| 72157A | Cover, Seat Track Bracket, Inner RH |
| 72158 | Cover, Seat Track Bracket, Inner LH |
| 72462 | Cover, Vertical Adjuster RH |
| 72477 | Spacer, Vertical Adjuster |
| 72494 | Handle, Vertical Adjusting, RH |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72526A | Handle, Reclining Adjuster Release, LH |
| 72877 | Cover, Seat Armrest, RH |
| 72878 | Cover, Seat Armrest, LH |
| 72880 | Armrest Assy, Seat, C RH |
| 72890 | Armrest Assy, Seat, C LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
