Toyota Sienta
2003-09 → 2015-06 · chassis NCP8# · catalogue 119110 · Japan
Supported model
Data version 2013-07

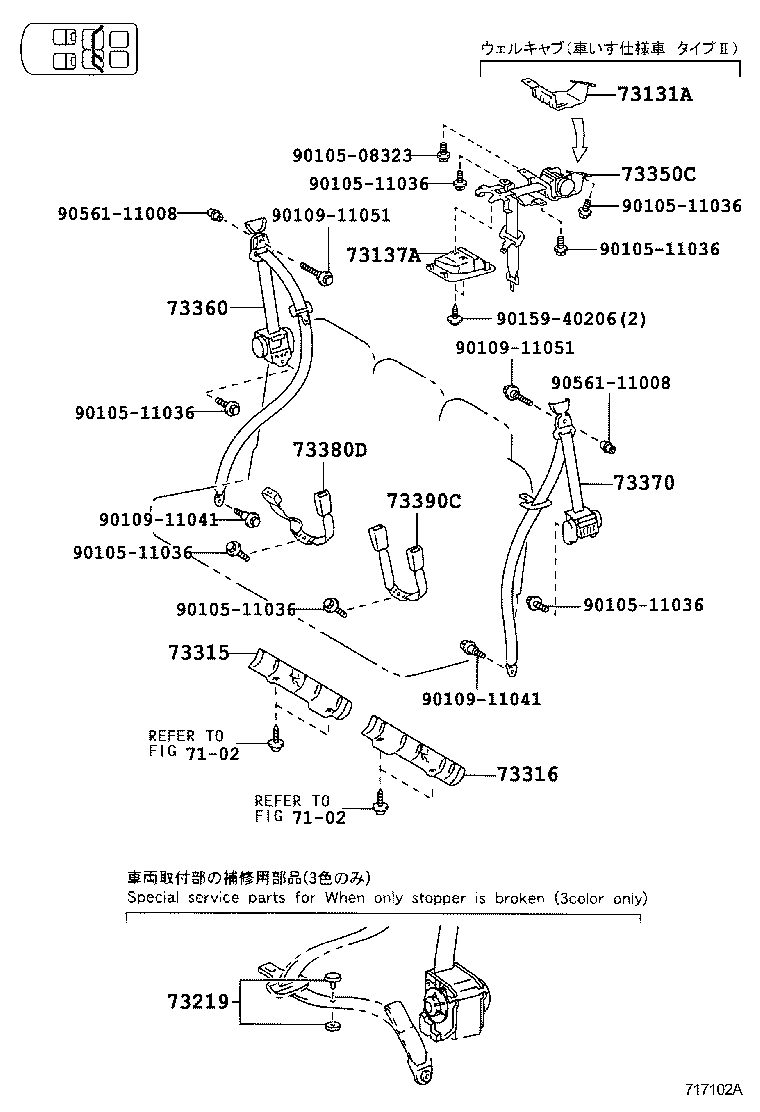

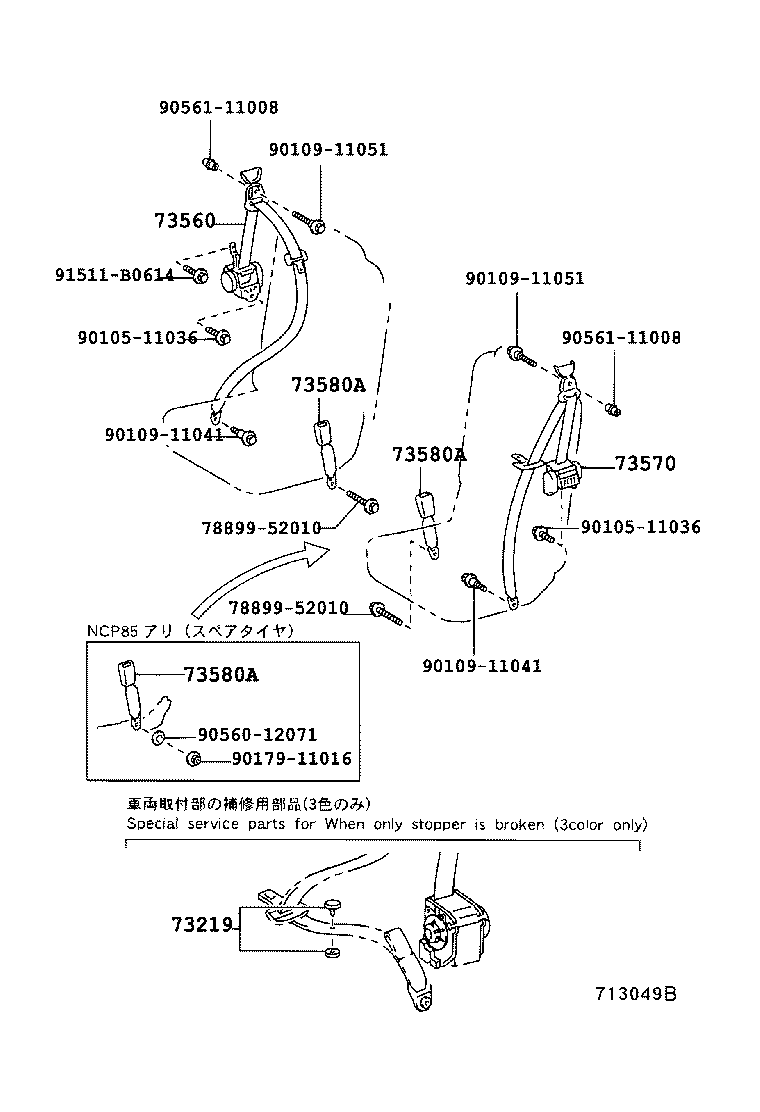

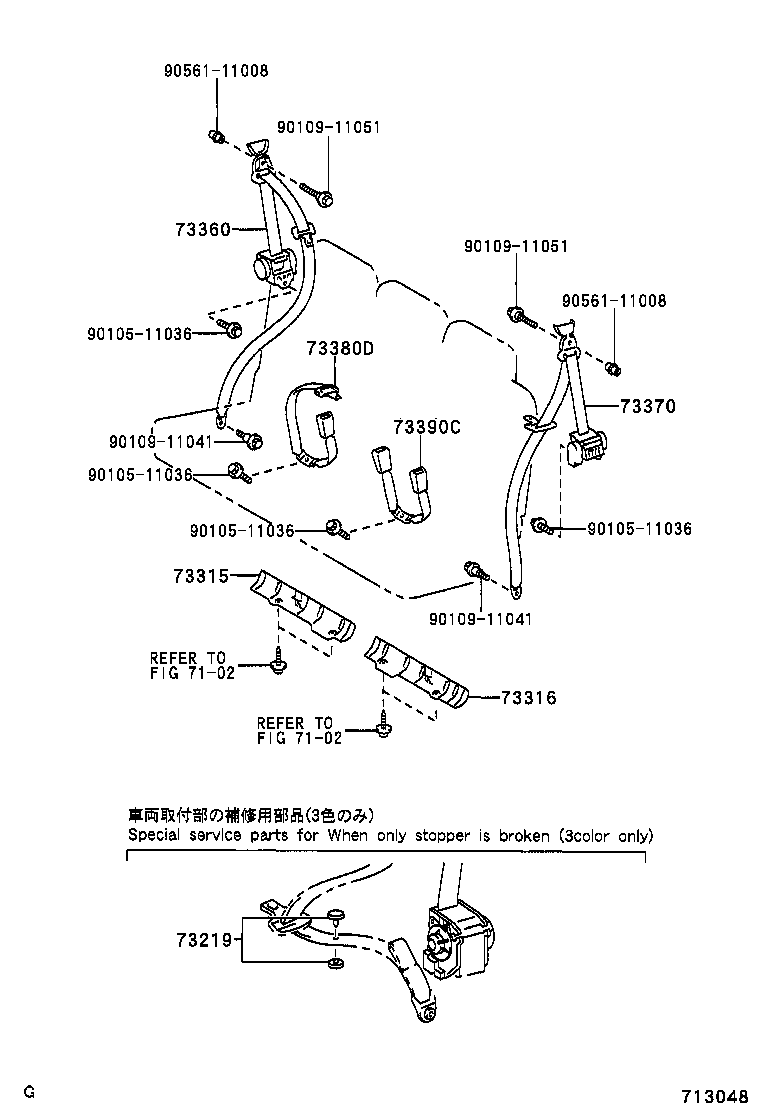

Seat Belt & Child Restraint Seat
21 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 73131A | Bracket, Seat Belt |
| 73135A | Cover, Shoulder Belt Anchor, RH |
| 73137A | Cover, Shoulder Belt Anchor, Upr |
| 73178A | Cap, Seat Belt Anchor Cover |
| 73200A | Adjuster Assy, Front Shoulder Belt Anchor |
| 73210 | Belt Assy, Front Seat Outer, RH |
| 73219 | Stopper, Tongue Plate |
| 73220 | Belt Assy, Front Seat Outer, LH |
| 73230 | Belt Assy, Front Seat Inner, RH |
| 73240 | Belt Assy, Front Seat Inner, LH |
| 73315 | Cover, RR Seat Belt, Inner RH |
| 73316 | Cover, RR Seat Belt, Inner LH |
| 73350C | Belt Assy, Rear Seat, Outer Center |
| 73360 | Belt Assy, Rear Seat 3 Point Type, Outer RH |
| 73370 | Belt Assy, Rear Seat 3 Point Type, Outer LH |
| 73380A | Belt Assy, Rear Seat, Inner |
| 73380D | Belt Assy, Rear Seat, Inner |
| 73390C | Belt Assy, Rear NO.1 Seat, Inner LH |
| 73560 | Belt Assy, Rear NO.2 Seat, Outer RH |
| 73570 | Belt Assy, Rear NO.2 Seat, Outer LH |
| 73580A | Belt Sub Assy, Rear NO.2 Seat, Inner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
