Toyota Sienta

2003-09 → 2015-06 · chassis NCP8# · catalogue 119110 · Japan

Supported model Data version 2013-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

21 part groups · 3 illustrations

Illustrations

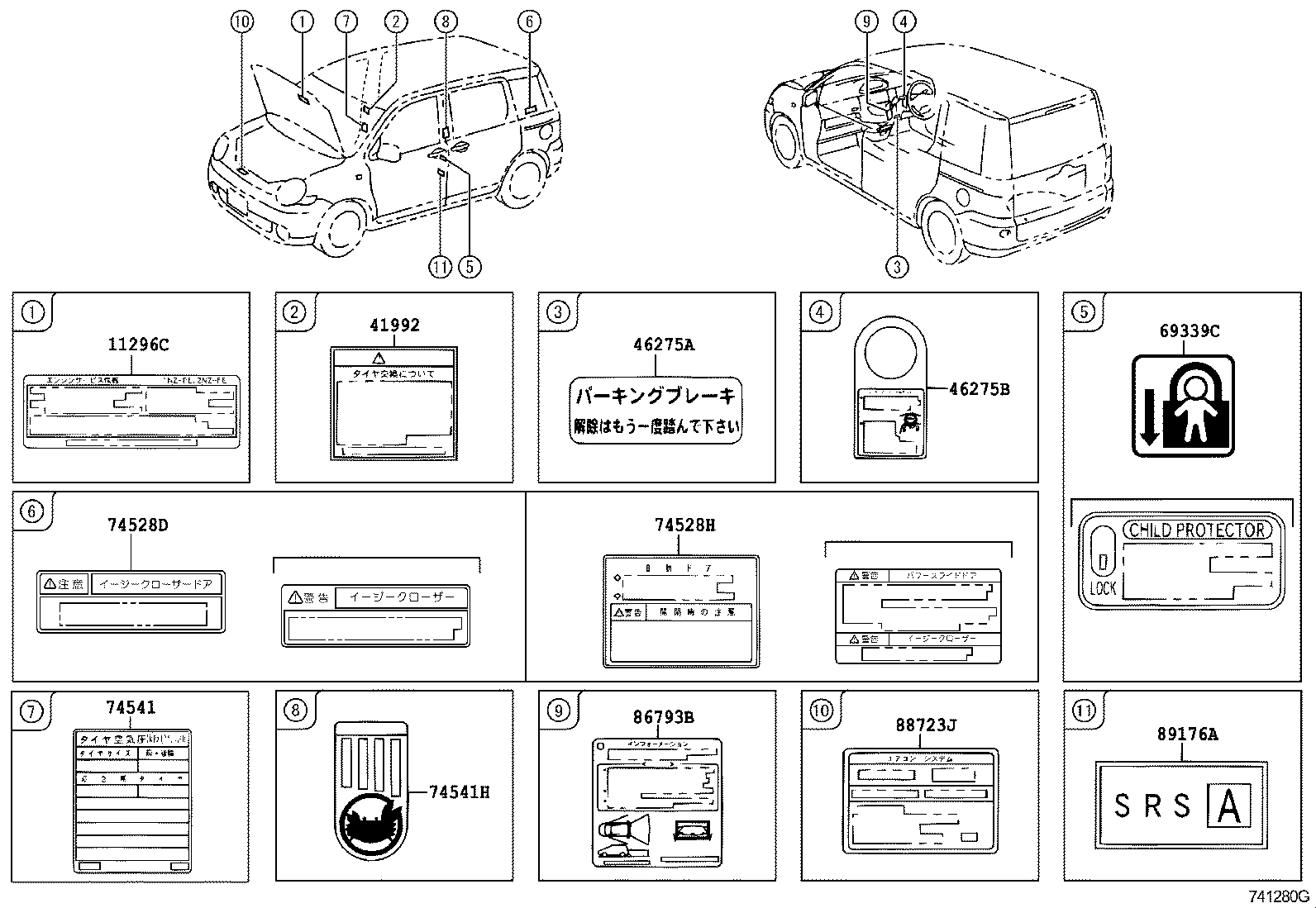

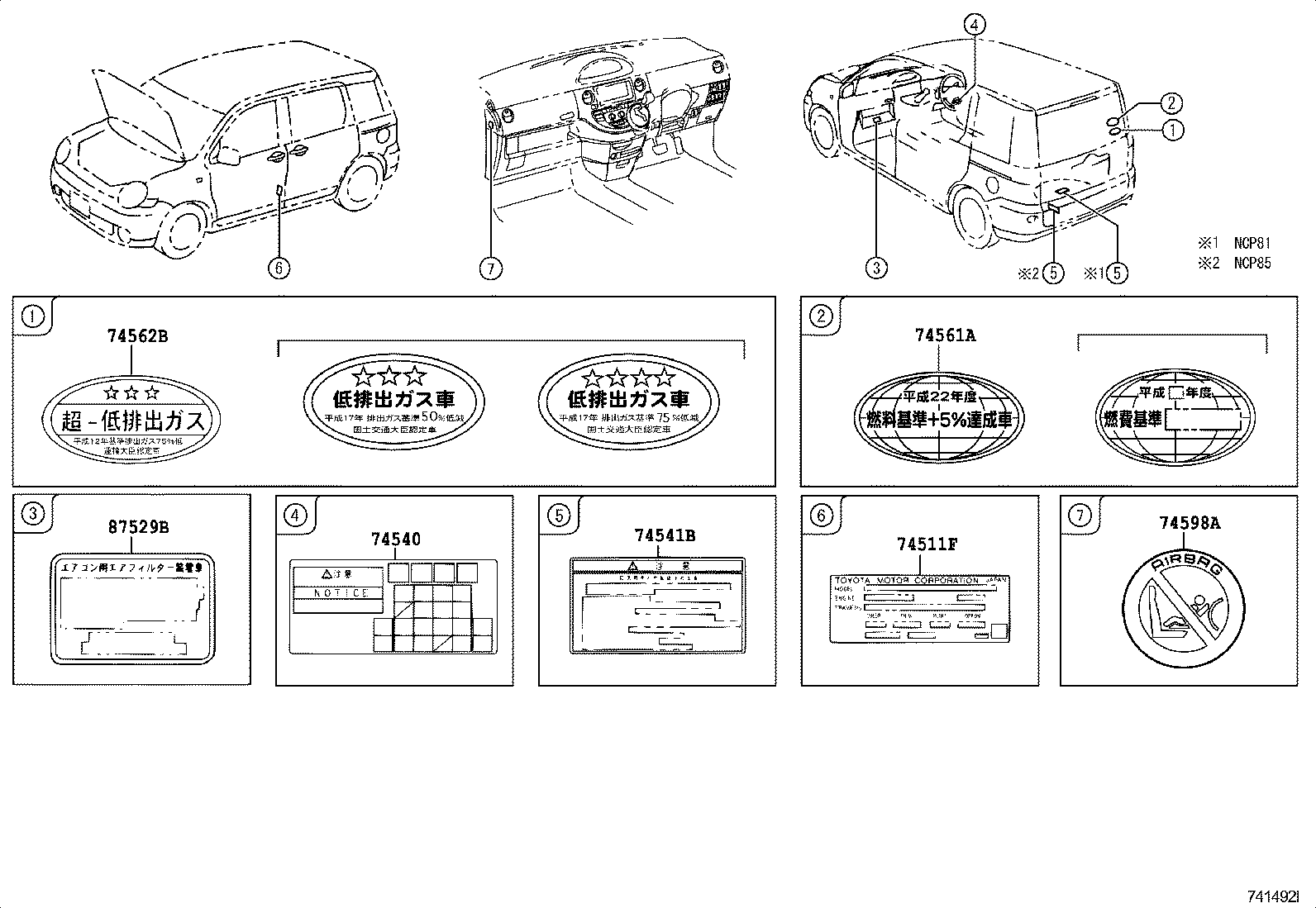

Figure 745451 745451 2003-09 → — Figure 741280G 741280G 2003-09 → — Figure 741492I 741492I 2003-09 → —

Part groups

PNCDescription
11296C Label, Engine Service Information
16793E Label, Cooling Fan Caution
41992 Label, Differential Notice
46275A Label, Parking Brake Release Information, NO.1
46275B Label, Parking Brake Release Information, NO.2
69339C Label, Child Protector Information
74511F Label, Name (IDENTIFICATION LASER LABEL)
74528D Label, Power Slide Door Notice
74528H Label, Power Slide Door Caution
74540 Plate, Fuse Block Caution
74541 Plate, Tire Pressure Caution
74541B Plate, Compact Spare Tire Caution
74541H Plate, Body Caution
74561A Label, Fuel Consumption Information
74562B Label, Emission Information
74598A Label, Passenger Airbag Caution
86793B Label, Television Camera Information
86995E Label, Caution
87529B Label, A/C Filter Information
88723J Label, Cooler Service Caution, NO.2
89176A Label, Airbag Deployment Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
