Toyota Sienta

2003-09 → 2015-06 · chassis NCP8# · catalogue 119110 · Japan

Supported model Data version 2013-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

9 part groups · 3 illustrations

Illustrations

Figure 812667D

812667D 2003-09 → 2006-05

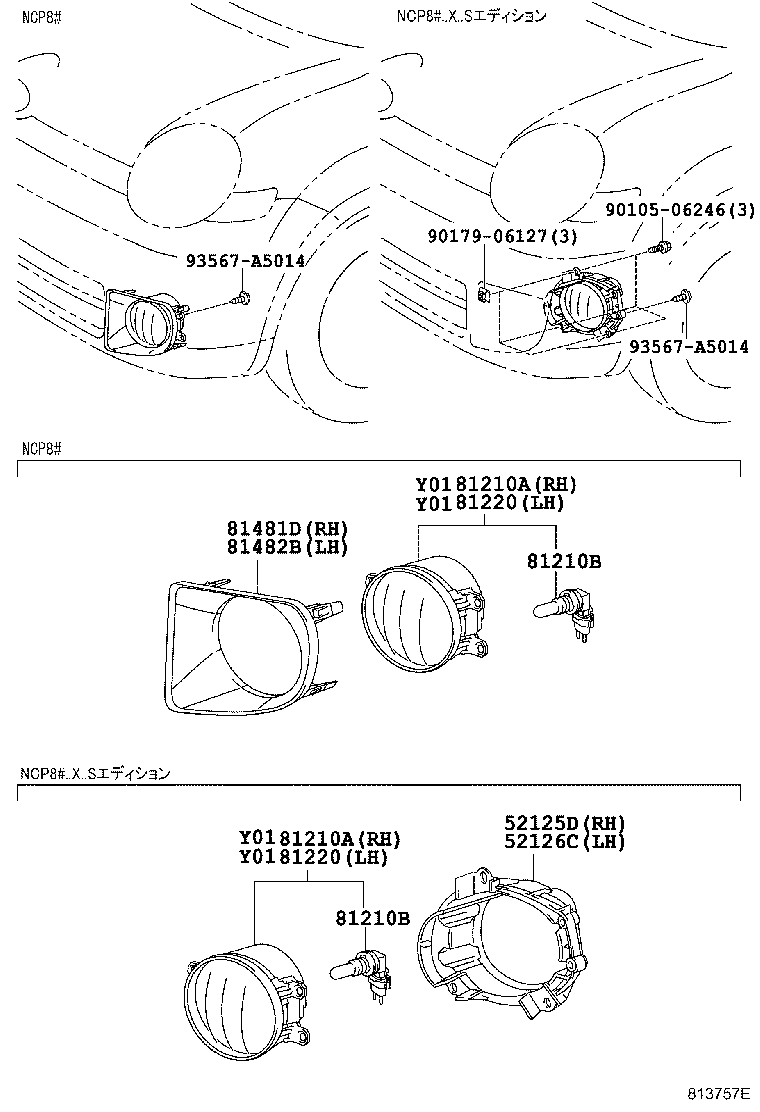

Figure 813757E

813757E 2006-05 → 2010-08

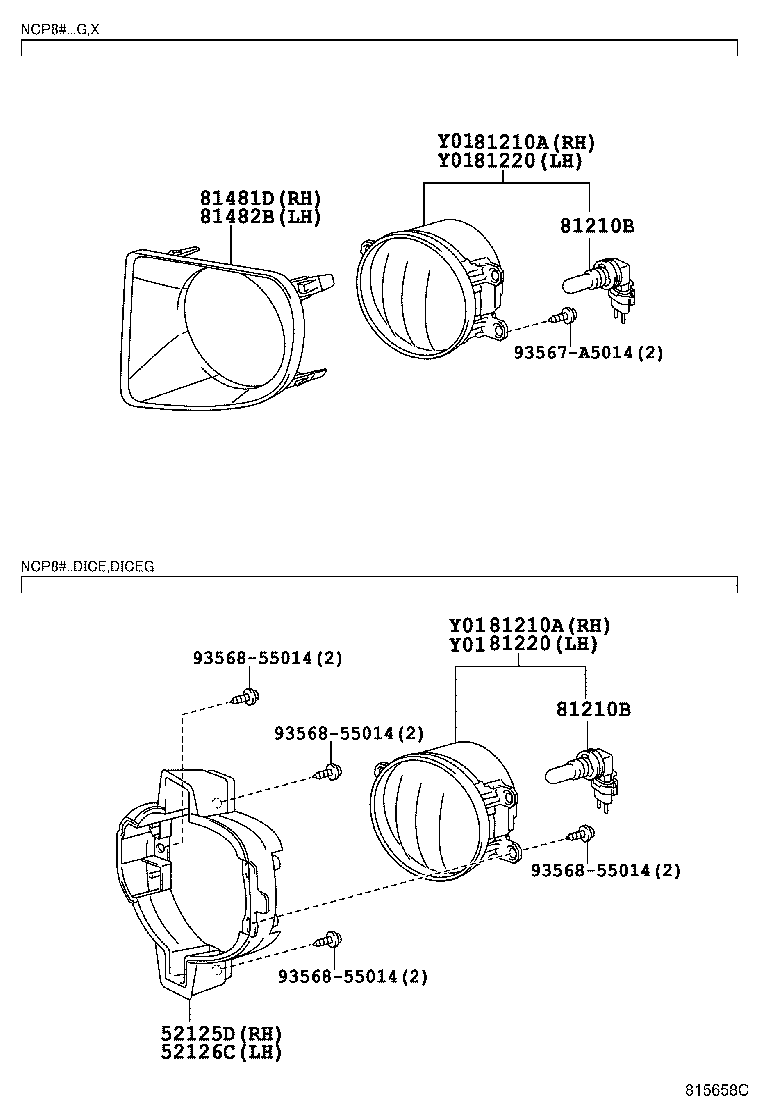

Figure 815658C

815658C 2011-06 → —

Part groups

PNC	Description
52125D	Bracket, Fog Lamp Mounting, RH
52126C	Bracket, Fog Lamp Mounting, LH
81210A	Lamp Assy, Fog, RH
81210B	Bulb, Fog Lamp
81211C	Lamp Unit, Fog Lamp, RH
81220	Lamp Assy, Fog, LH
81221C	Lamp Unit, Fog Lamp, LH
81481D	Cover, Fog Lamp, RH
81482B	Cover, Fog Lamp, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
