Toyota Sienta

2003-09 → 2015-06 · chassis NCP8# · catalogue 119110 · Japan

Supported model Data version 2013-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

9 part groups · 3 illustrations

Illustrations

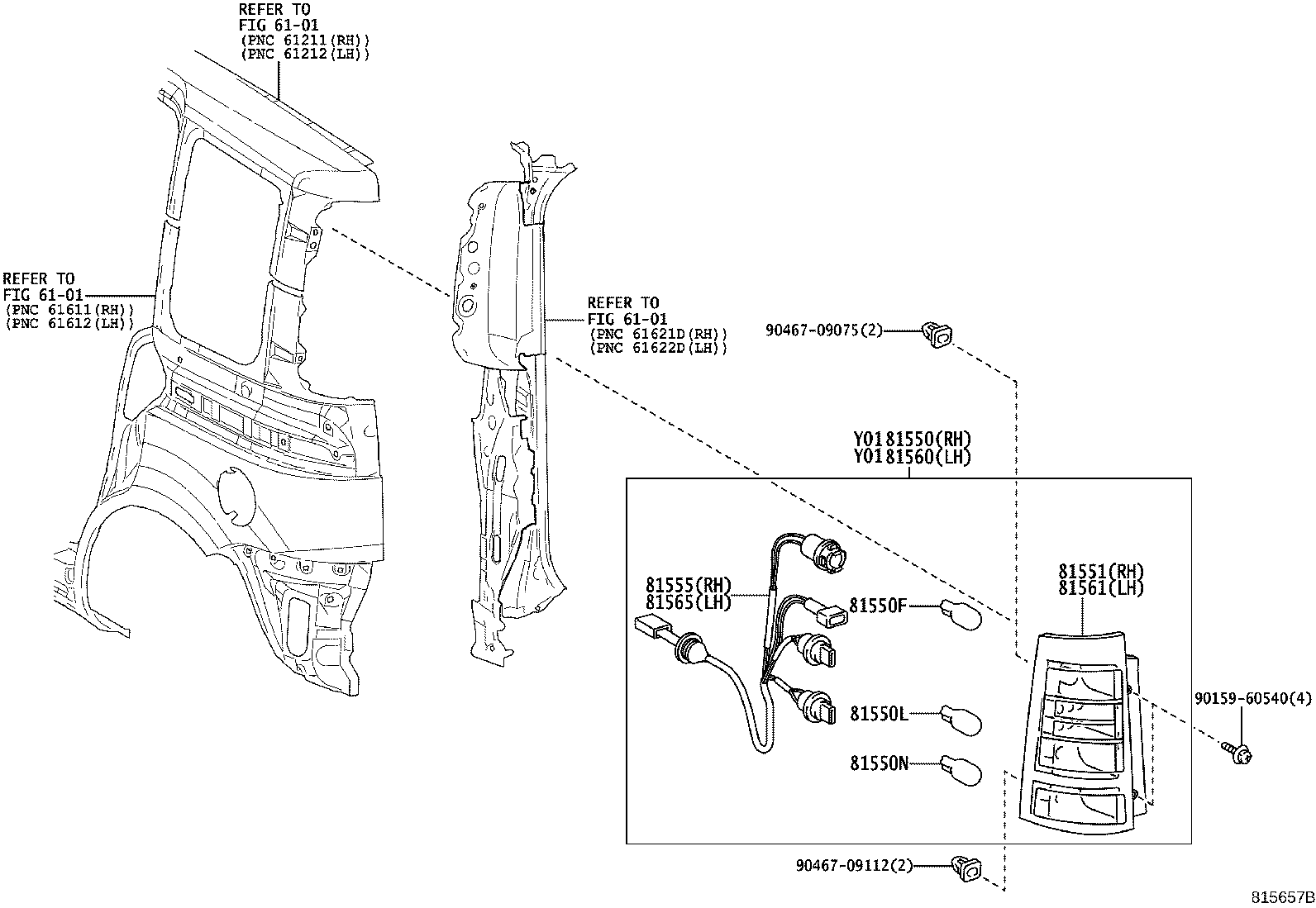

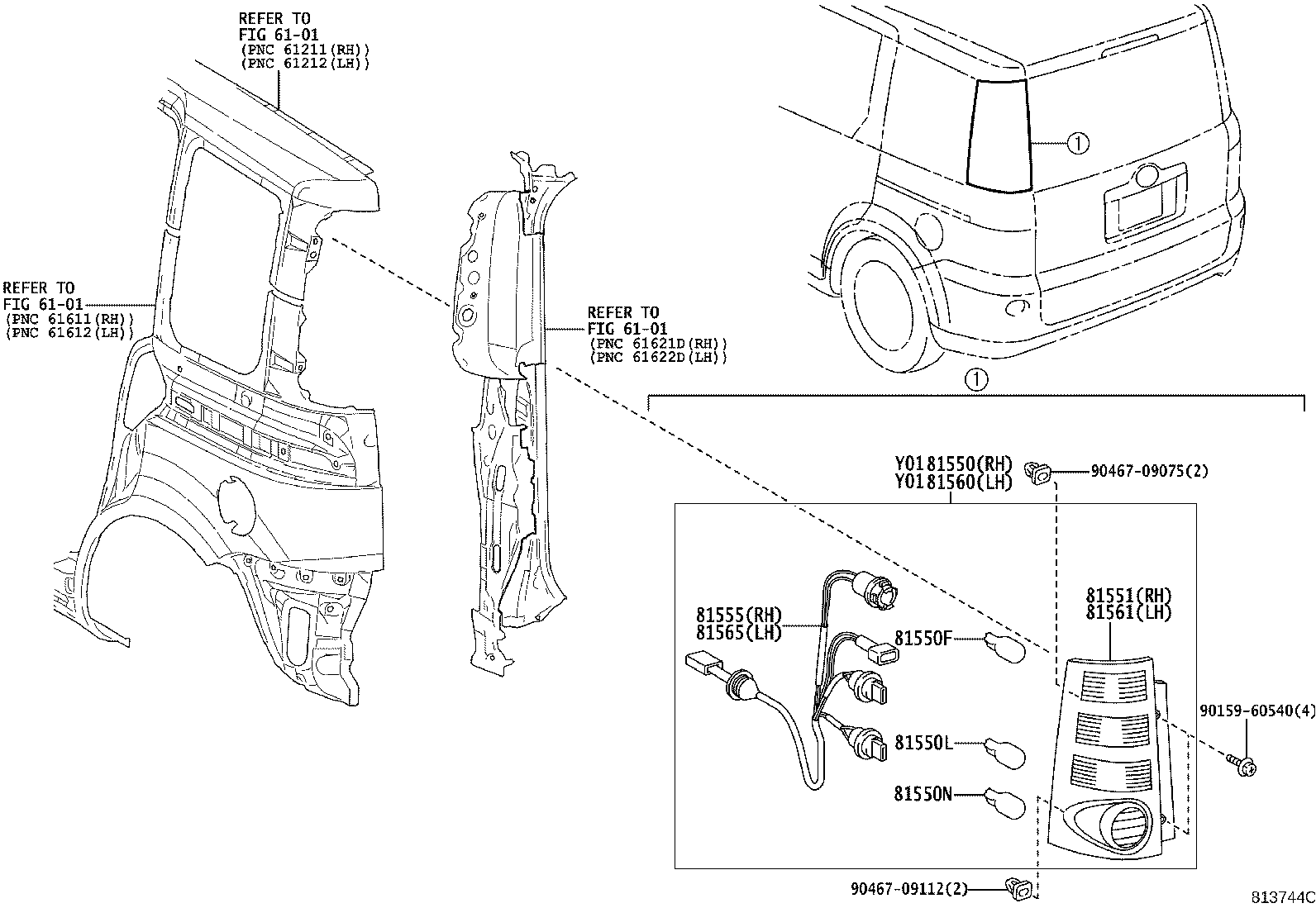

Figure 812669C 812669C 2003-09 → 2006-05 Figure 813744C 813744C 2006-05 → 2010-08 Figure 815657B 815657B 2011-06 → —

Part groups

PNCDescription
81550 Lamp Assy, Rear Combination, RH
81550F Bulb, Taillamp
81550L Bulb, Rear Turn Signal Lamp
81550N Bulb, Back UP Lamp
81551 Lens, Rear Combination Lamp, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81560 Lamp Assy, Rear Combination, LH
81561 Lens, Rear Combination Lamp, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
