Toyota Sienta

2003-09 → 2015-06 · chassis NCP8# · catalogue 119110 · Japan

Supported model Data version 2013-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

27 part groups · 7 illustrations

Illustrations

Figure 823682E 823682E 2003-09 → — Figure 823683D 823683D 2003-09 → — Figure 823684H 823684H 2003-09 → — Figure 823685D 823685D 2003-09 → — Figure 823686I 823686I 2003-09 → — Figure 823687L 823687L 2003-09 → — Figure 823721H 823721H 2003-09 → —

Part groups

PNCDescription
46431 Bolt, Wire
82111 Wire, Engine Room Main

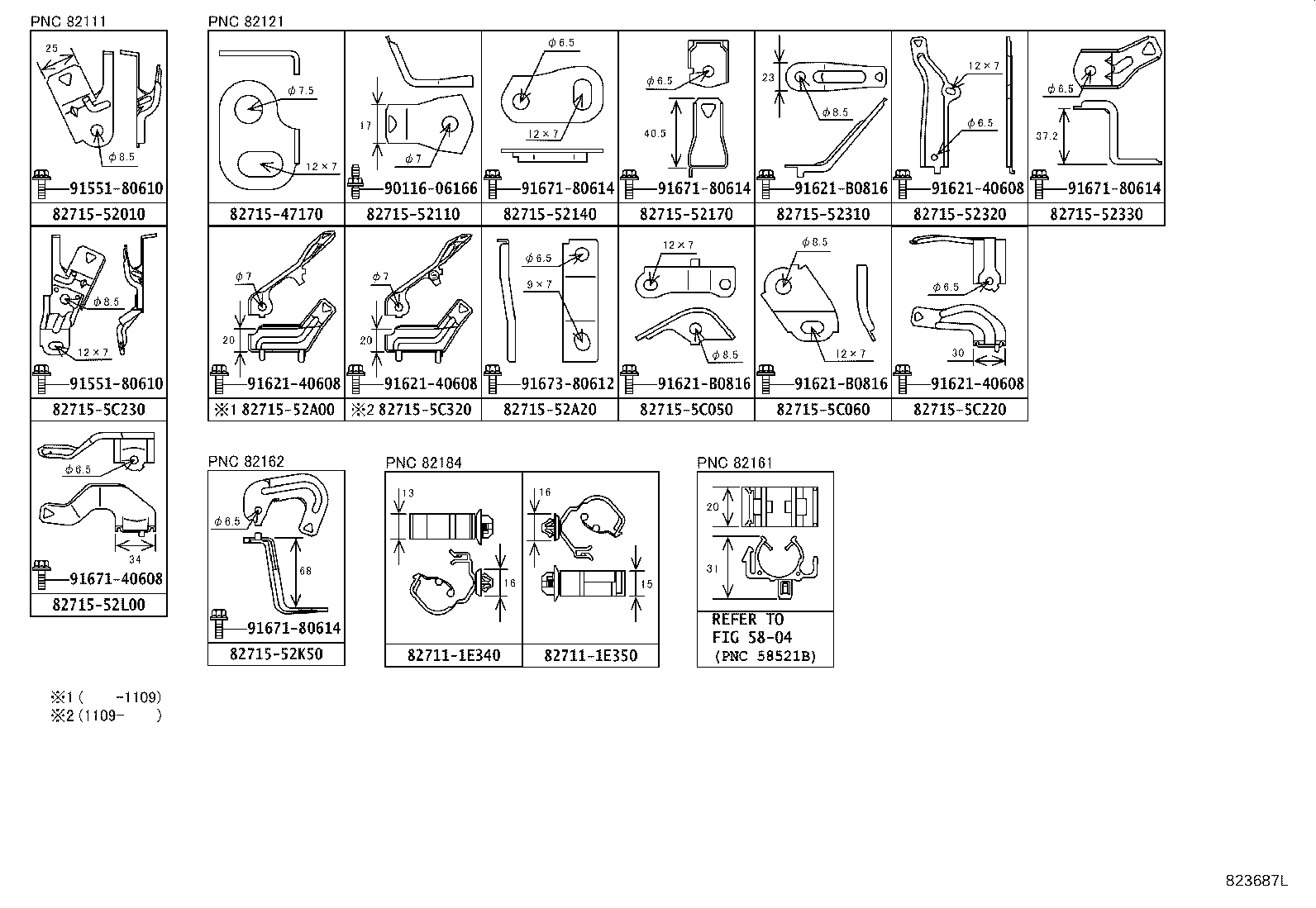

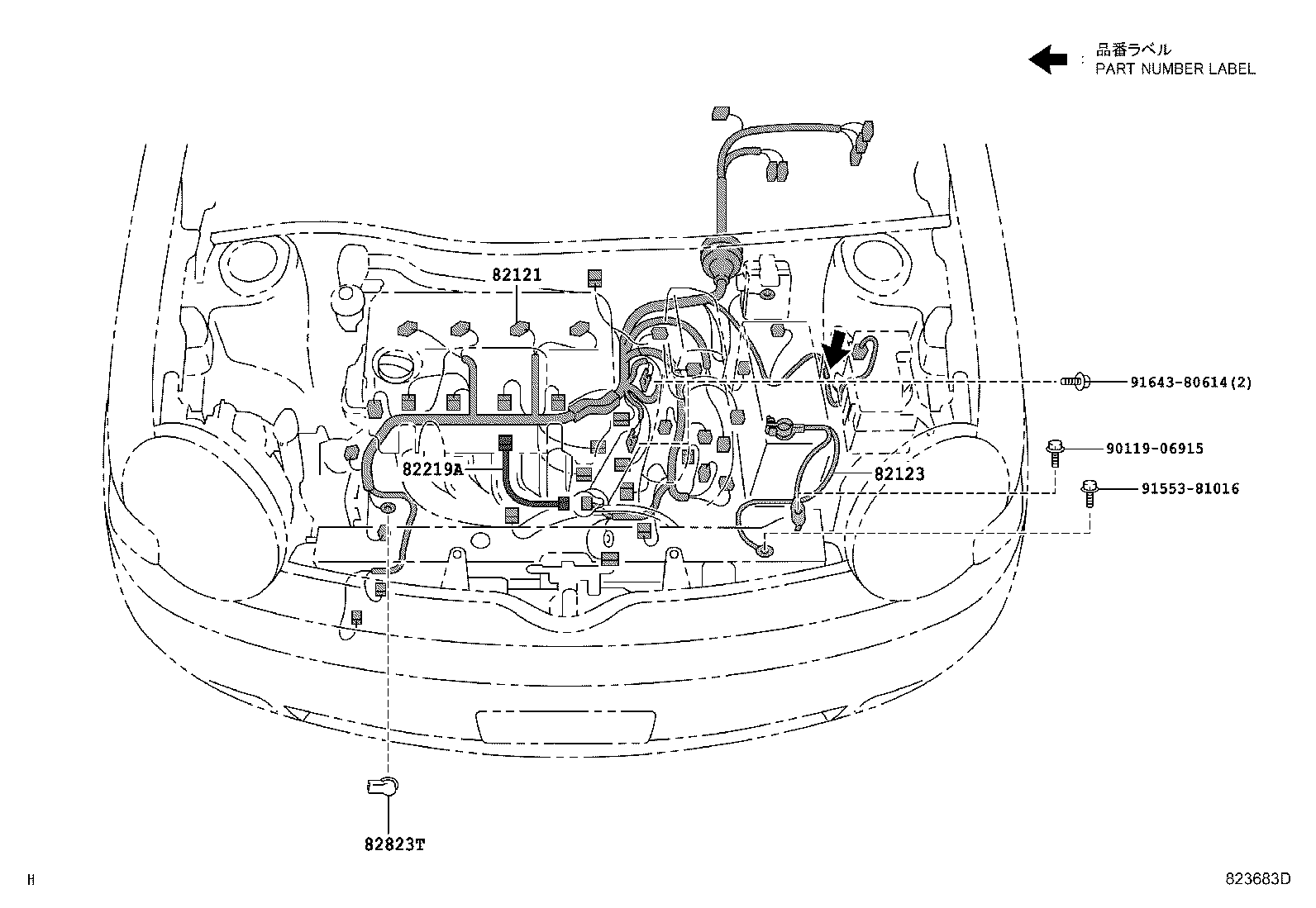

82121 Wire, Engine
82123 Wire, Engine, NO.3

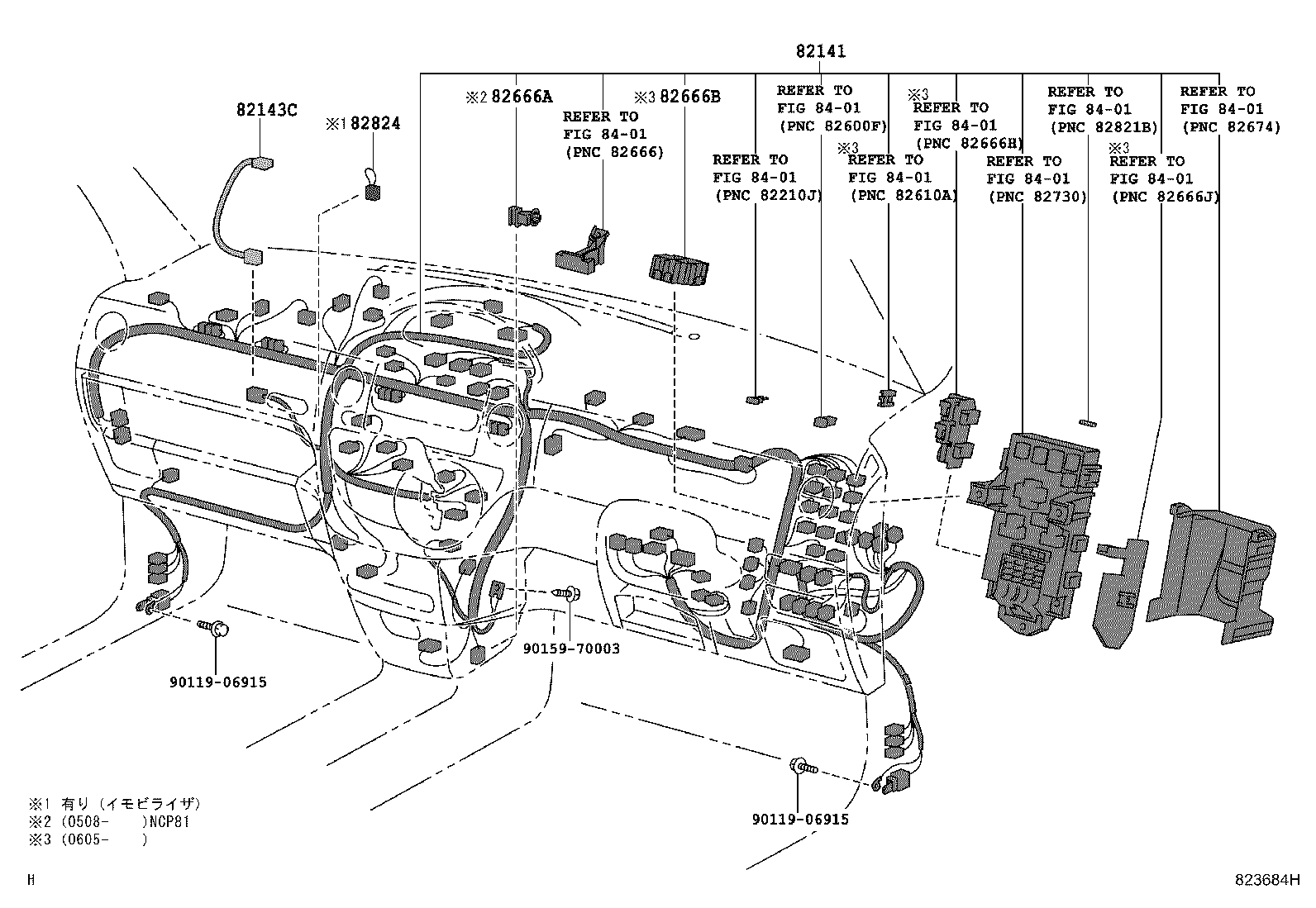

82141 Wire, Instrument Panel
82143C Wire, Instrument Panel, NO.3

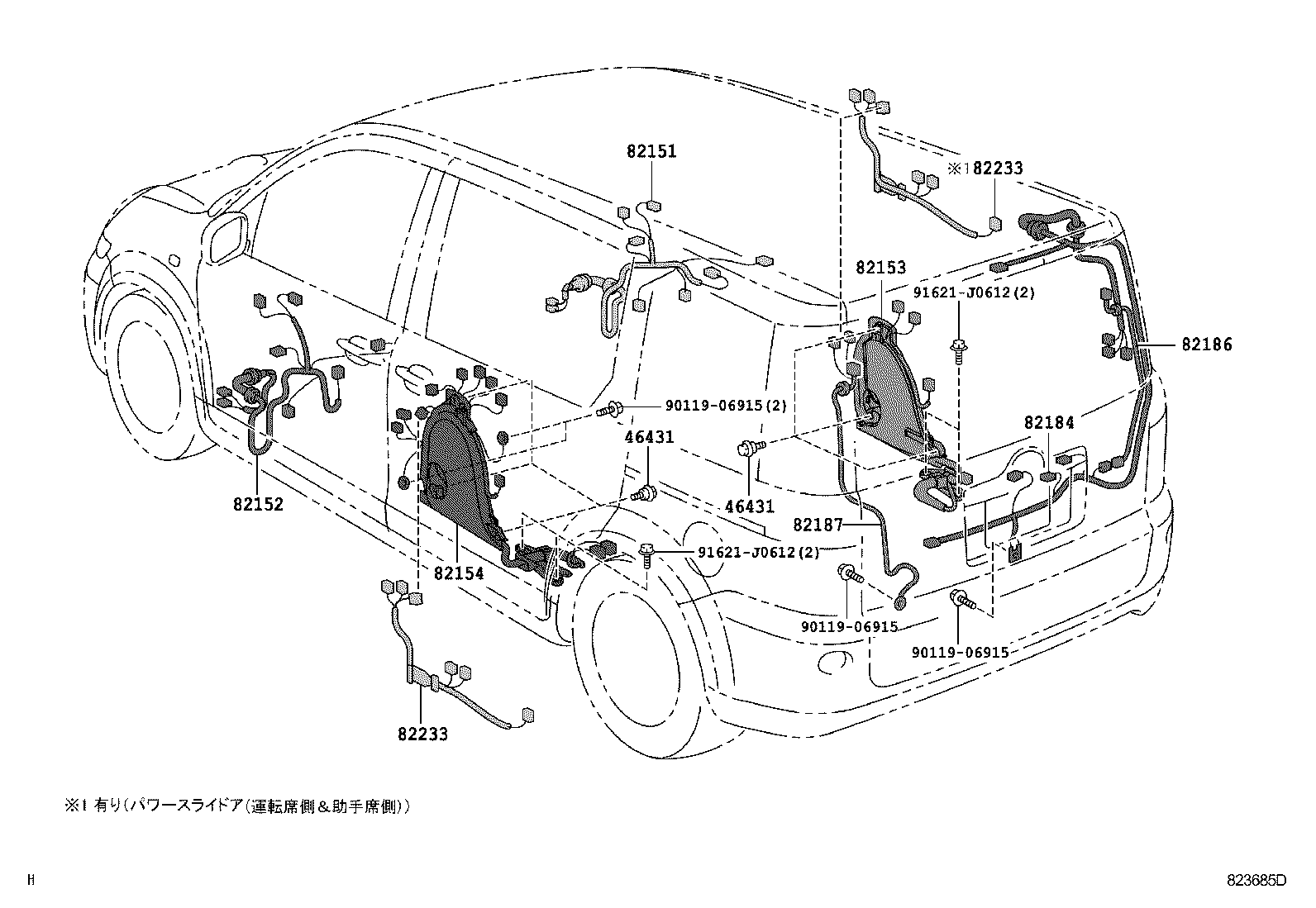

82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2

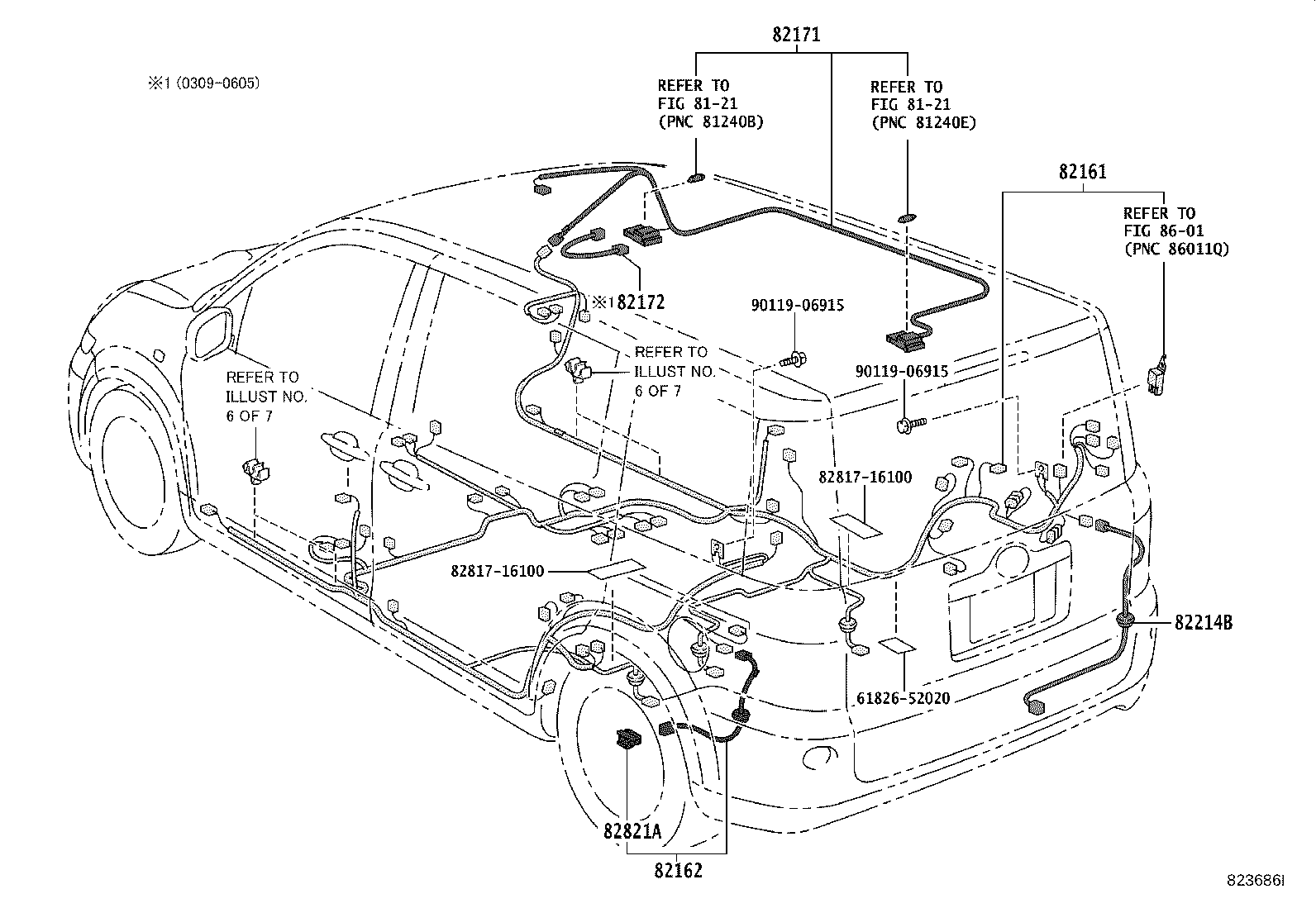

82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82184 Wire, Back Door, NO.1
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82214B Wire, Lamp, Rear
82219A Wire, Sensor
82233 Wire, Computer
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82821A Cover, Connector
82823T Cap, Alternator Terminal

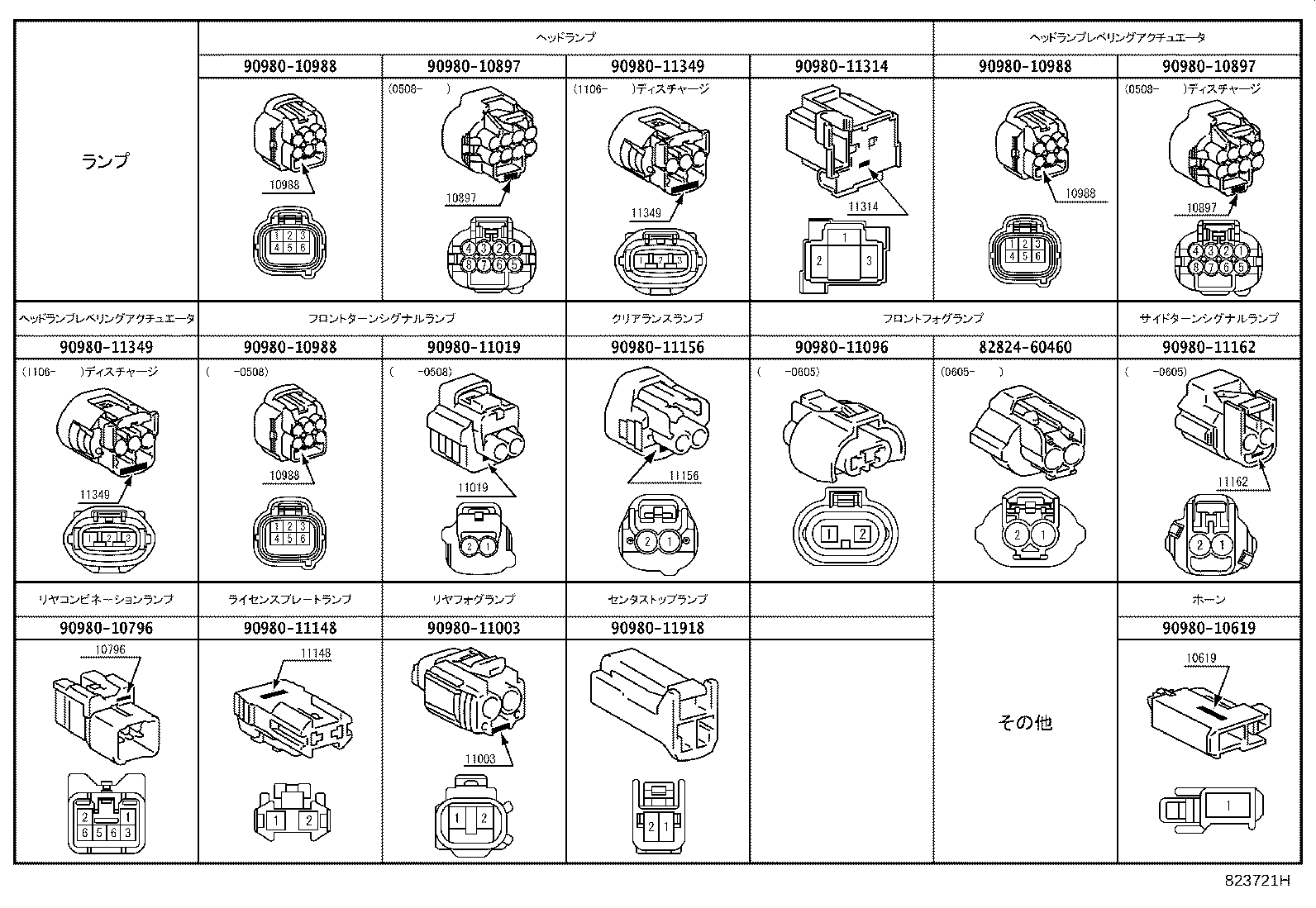

82824 Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
