Toyota Sienta

2003-09 → 2015-06 · chassis NCP8# · catalogue 119110 · Japan

Supported model Data version 2013-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

99 part groups · 9 illustrations

Illustrations

845881C 2003-09 → 2010-08

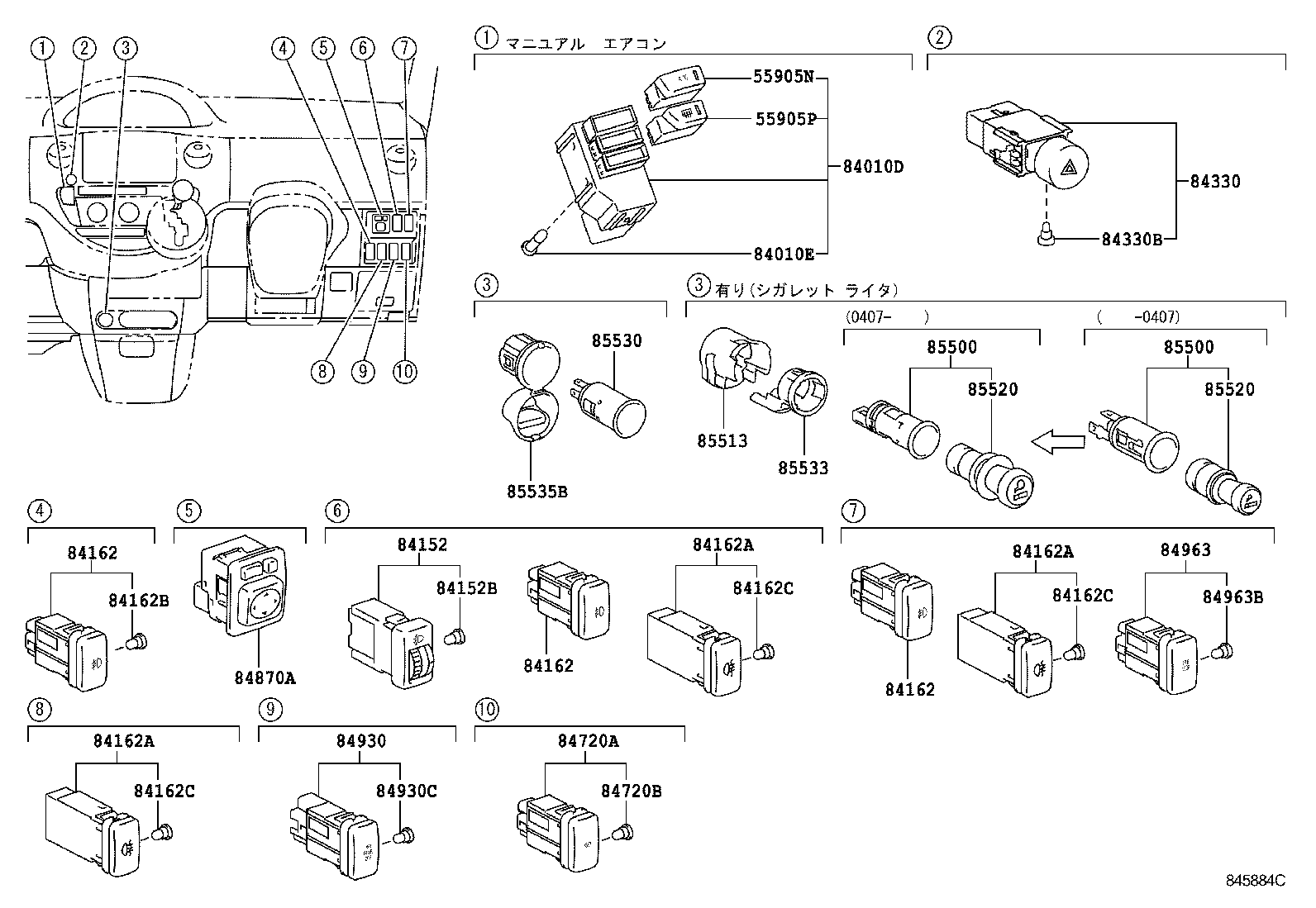

845884C 2003-09 → 2006-05

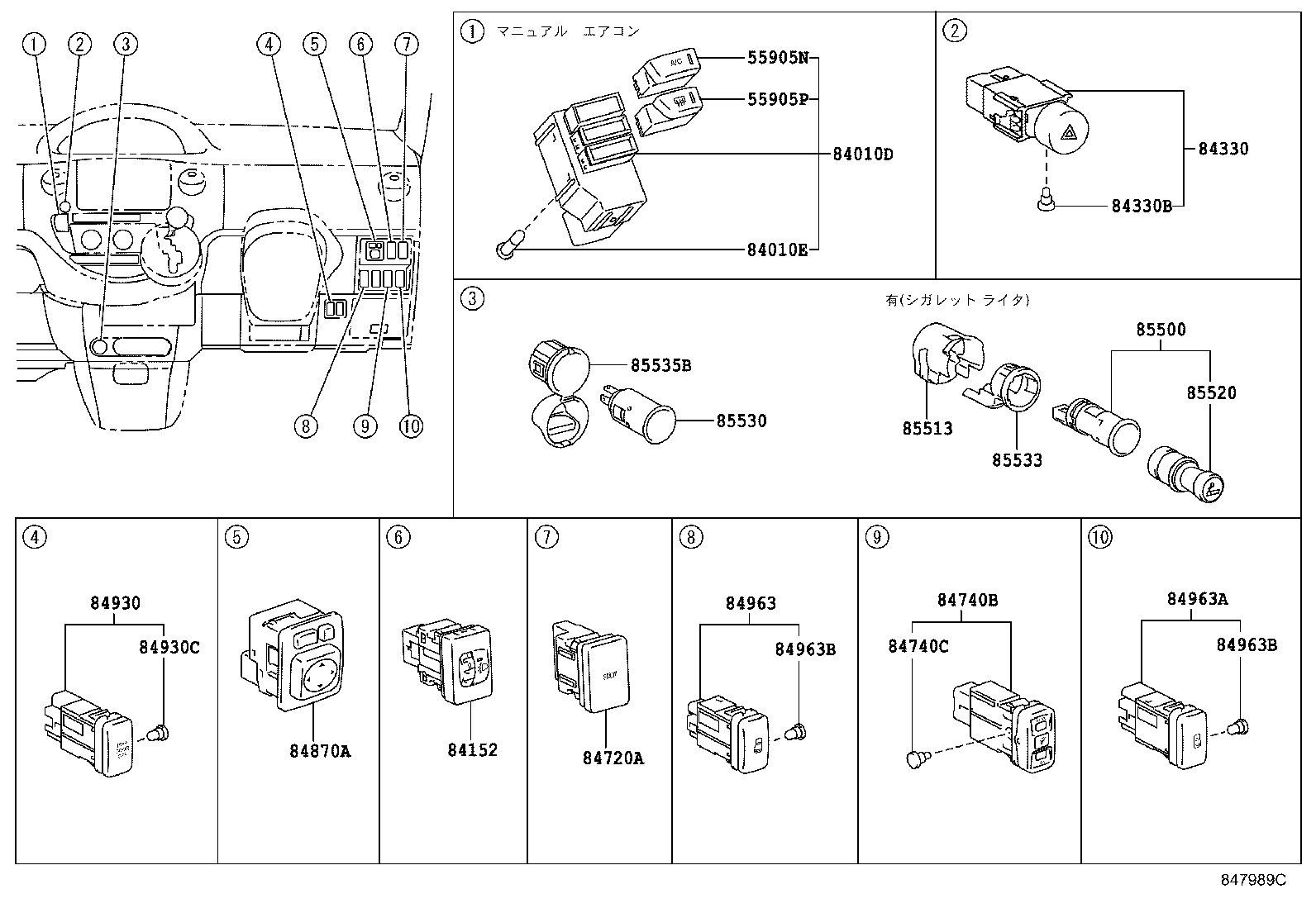

847989C 2006-05 → —

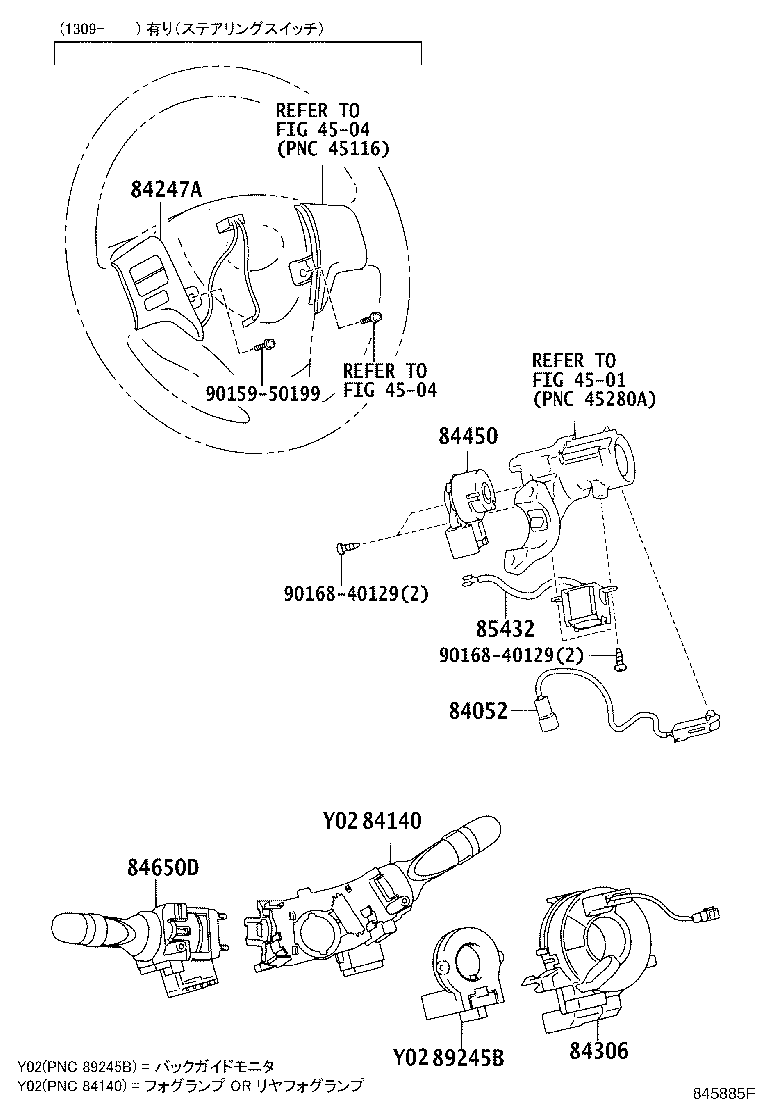

845885F 2003-09 → —

845886F 2003-09 → —

Part groups

PNC	Description
28300	Relay Assy, Starter
28850	Sensor Assy, Battery Current
28865	Sensor, Battery Thermometer
55905N	Knob Sub-assy, Control, NO.1
55905P	Knob Sub-assy, Control, NO.2
81980	Flasher Assy, Turn Signal
82210J	Fusible Link
82600F	Fuse, Fuse Block
82610A	Block Assy, Fuse
82618	Fuse, Fuse Block
82620A	Block Assy, Fusible Link
82621A	Cover, Fusible Link
82662A	Cover, Relay Block, Upper, NO.1
82662B	Cover, Relay Block, Upper, NO.2
82663	Cover, Relay Block, Lower
82663A	Cover, Relay Block, Lower, NO.2
82666	Holder, Connector
82666H	Holder, Connector, NO.2
82666J	Holder, Connector, NO.3
82674	Cover, Junction Block Lower
82730	Block Assy, Instrument Panel Junction
82741	Block, Engine Room Relay
82742	Block, Engine Room Relay, NO.2
82821B	Cover, Connector
83320	Gage Assy, Fuel Sender
83320B	Gage Assy, Fuel Sender, NO.2
83361	Gasket, Fuel Sender Gage
83530	Switch Assy, Oil Pressure (FOR ENGINE)
83650	Fusee
84010D	Control & Panel Assy, Integration
84010E	Blub, Integration Control & Panel
84052	Switch Assy, Un-lock Warning
84140	Switch Assy, Headlamp Dimmer
84152	Switch, Headlamp Leveling
84152B	Bulb (FOR HEADLAMP LEVELING SWITCH)
84162	Switch, Front Fog Lamp
84162A	Switch, Rear Fog Lamp
84162B	Bulb, Fog Lamp Switch
84162C	Bulb (FOR REAR FOG LAMP SWITCH)
84231A	Switch, Courtesy Lamp
84233	Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234	Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84247A	Switch, Steering Pad, LH
84306	Cable Sub-assy, Spiral
84330	Switch Assy, Hazard Warning Signal
84330B	Bulb, Hazard Warning Signal Switch
84340	Switch Assy, Stop Lamp
84345	Adjuster, Stop Lamp Switch Mounting
84450	Switch Assy, Ignition OR Starter
84540	Switch Assy, Neutral Start
84550	Switch Assy, Parking Brake
84650D	Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84720A	Switch Assy, Pattern Select, NO.1
84720B	Bulb (FOR PATTERN SELECT SWITCH)
84740B	Switch Assy, Air Purifier
84740C	Bulb, Air Purifire Switch
84794A	Relay, FR Wiper Deicer
84810	Switch Assy, Power Window Regulator
84810D	Switch Assy, Power Window Regulator, Rear
84820	Master Switch Assy, Power Window Regulator
84860A	Switch Assy, Sliding Roof
84870A	Switch Assy, Outer Mirror
84930	Switch Assy, Door Control
84930C	Bulb(FOR DOOR CONTROL SWITCH)
84963	Switch, Power Slide Door Control, NO.1
84963A	Switch, Power Slide Door Control, NO.2
84963B	Bulb, Power Slide Control Switch, NO.1
85431	Solenoid, Shift Lock
85432	Solenoid, Key Interlock
85500	Lighter Assy, Cigarette
85513	Cover, Cigarette Lighter
85520	Knob And Element Assy, Cigarette Lighter
85530	Socket Assy, Power Outlet, NO.1
85533	Lens, Cigarette Lighter Indicator
85535B	Cover, Power Outlet Socket, NO.1
85910C	Relay Assy (FOR HEATER BLOWER MOTOR)
85912	Relay, Defogger
85913	Relay, Heater Blower
85916D	Relay, Fog Lamp
85916L	Relay, Rear Fog Lamp
85916N	Relay, Taillamp
85916U	Relay, Headlamp, NO.2
85926	Relay, Headlamp Dimmer
85927	Relay, Cooling Fan
85927A	Relay, Cooling Fan, NO.2
85928B	Resistor, Cooling Fan
85972	Computer, Slide Door Control, RH
85972A	Computer, Slide Door Control
85975	Relay, Slide Door Closer
85975A	Relay, Slide Door Closer
85980	Relay Assy, Door Control
86530	Relay Assy, Horn
89245B	Sensor, Steering
89465	Sensor, Oxygen
89467B	Sensor, Air Fuel Ratio
89615	Sensor, Knock Control
89650	Computer Assy, Power Steering
89747D	Buzzer, Power Slide Door Warning
89960	Computer Assy, Headlamp Leveling

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
