Toyota Sienta

2003-09 → 2015-06 · chassis NCP8# · catalogue 119110 · Japan

Supported model Data version 2013-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

15 part groups · 3 illustrations

Illustrations

Figure 848126D

848126D 2003-09 → 2010-08

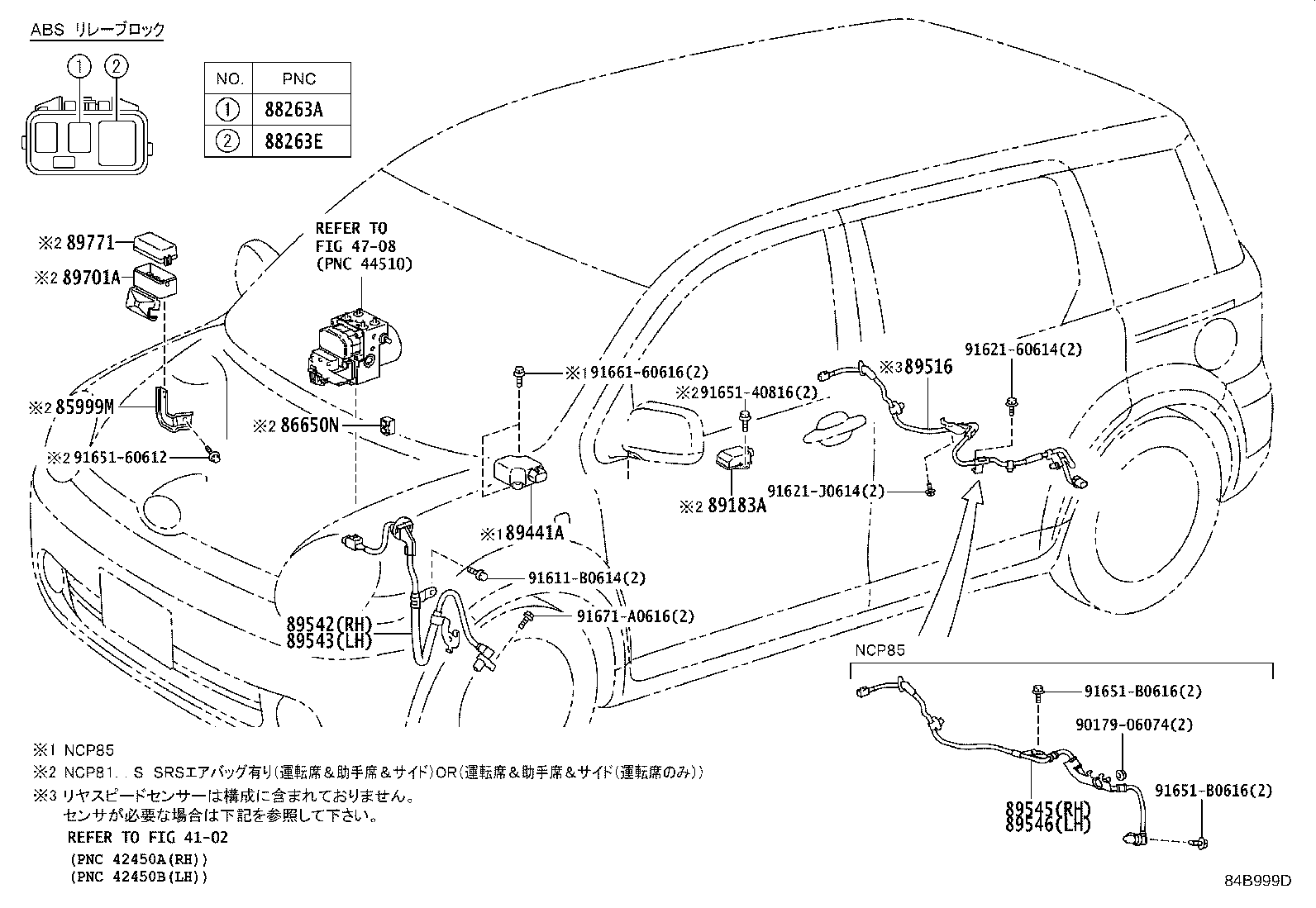

Figure 84B999D

84B999D 2011-06 → 2013-09

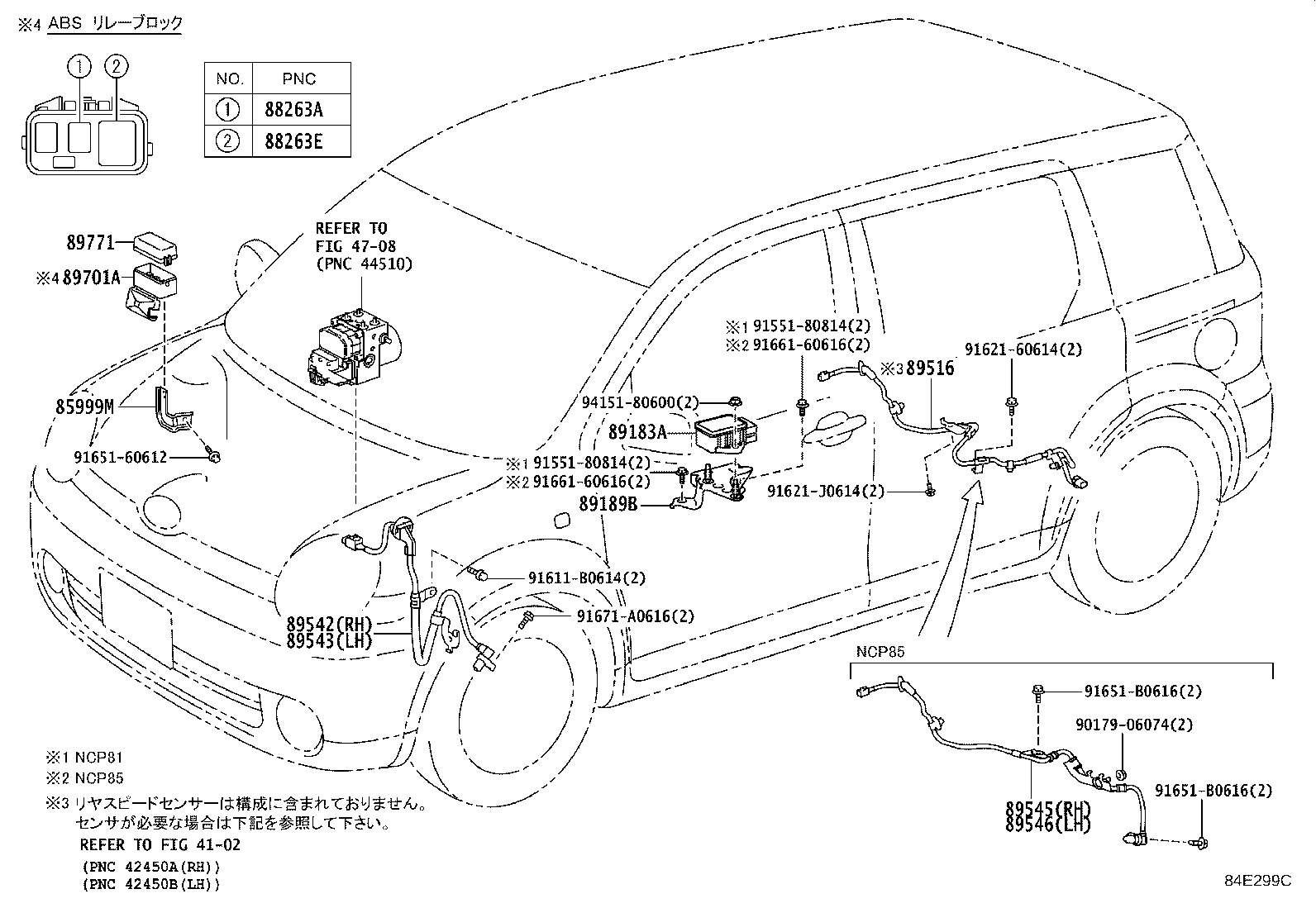

Figure 84E299C

84E299C 2013-09 → —

Part groups

PNC	Description
85999M	Bracket, Relay
86650N	Buzzer Assy
88263A	Relay, Skid Control
88263E	Relay, Skid Control NO.2
89183A	Sensor, Yawrate
89189B	Bracket, Yawrate Sensor
89441A	Sensor, Deceleration
89516	Wire, Skid Control Sensor
89542	Sensor, Speed, Front RH
89543	Sensor, Speed, Front LH
89544	Sensor, Skid Control
89545	Sensor, Speed, Rear RH
89546	Sensor, Speed, Rear LH
89701A	Block Sub-assy, Abs Relay
89771	Cover, Abs Relay Block, Upper

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
