Toyota Sienta
2003-09 → 2015-06 · chassis NCP8# · catalogue 119110 · Japan
Supported model
Data version 2013-07

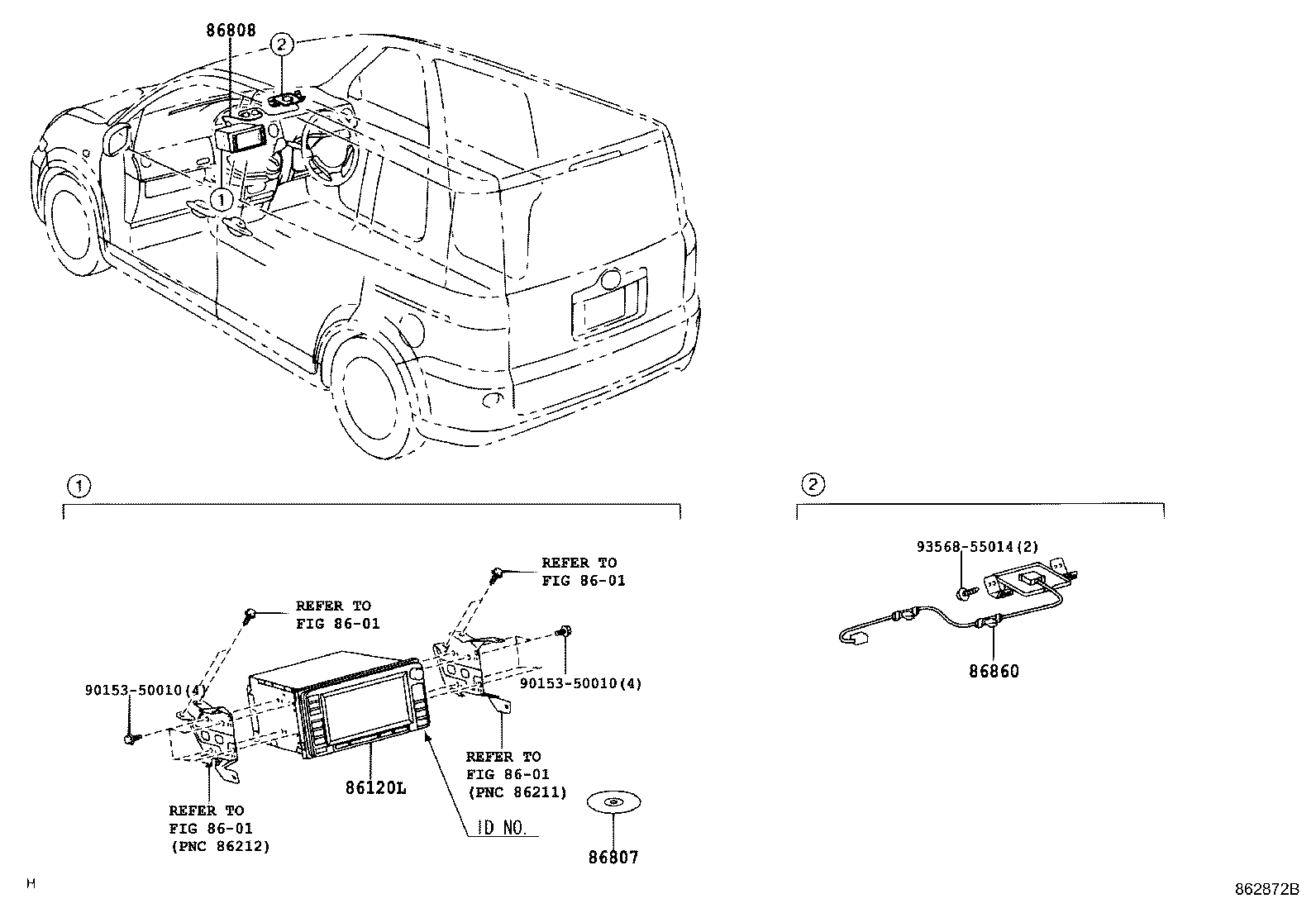

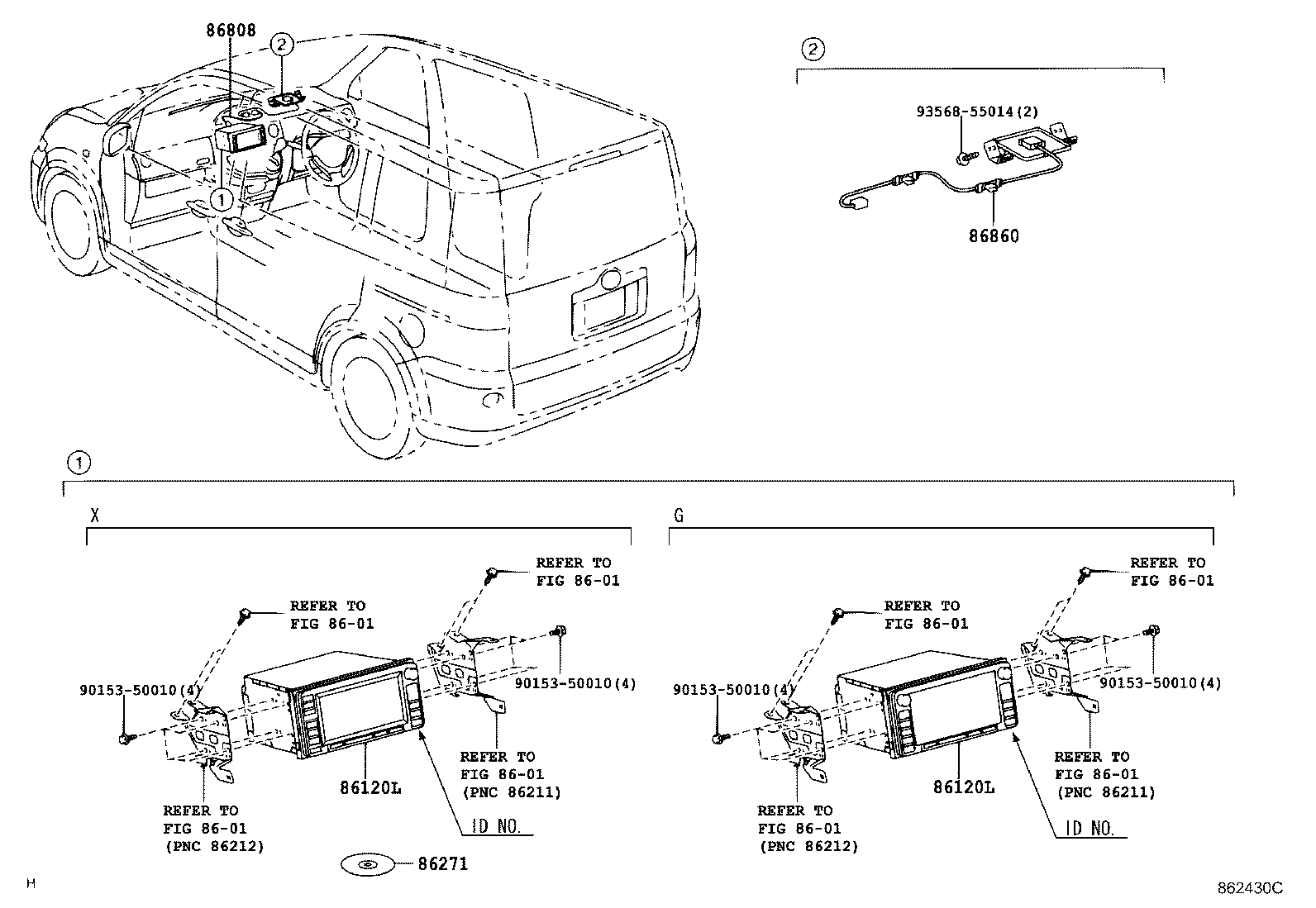

Navigation & Front Monitor Display
10 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 86120L | Receiver Assy, Navigation |
| 86271 | Disc, Disc Player |
| 86274D | Bracket, Disc Player |
| 86274F | Bracket, Disc Player, NO.2 |
| 86807 | Disc Kit, Cd-rom |
| 86808 | Cord Sub-assy, Navigation Antenna, NO.1 |
| 86841 | Computer, Navigation |
| 86843 | Cover, Navigation Computer |
| 86843A | Cover, Navigation Computer |
| 86860 | Antenna Assy, Navigation |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
