Toyota Sienta
2003-09 → 2015-06 · chassis NCP8# · catalogue 119110 · Japan
Supported model
Data version 2013-07

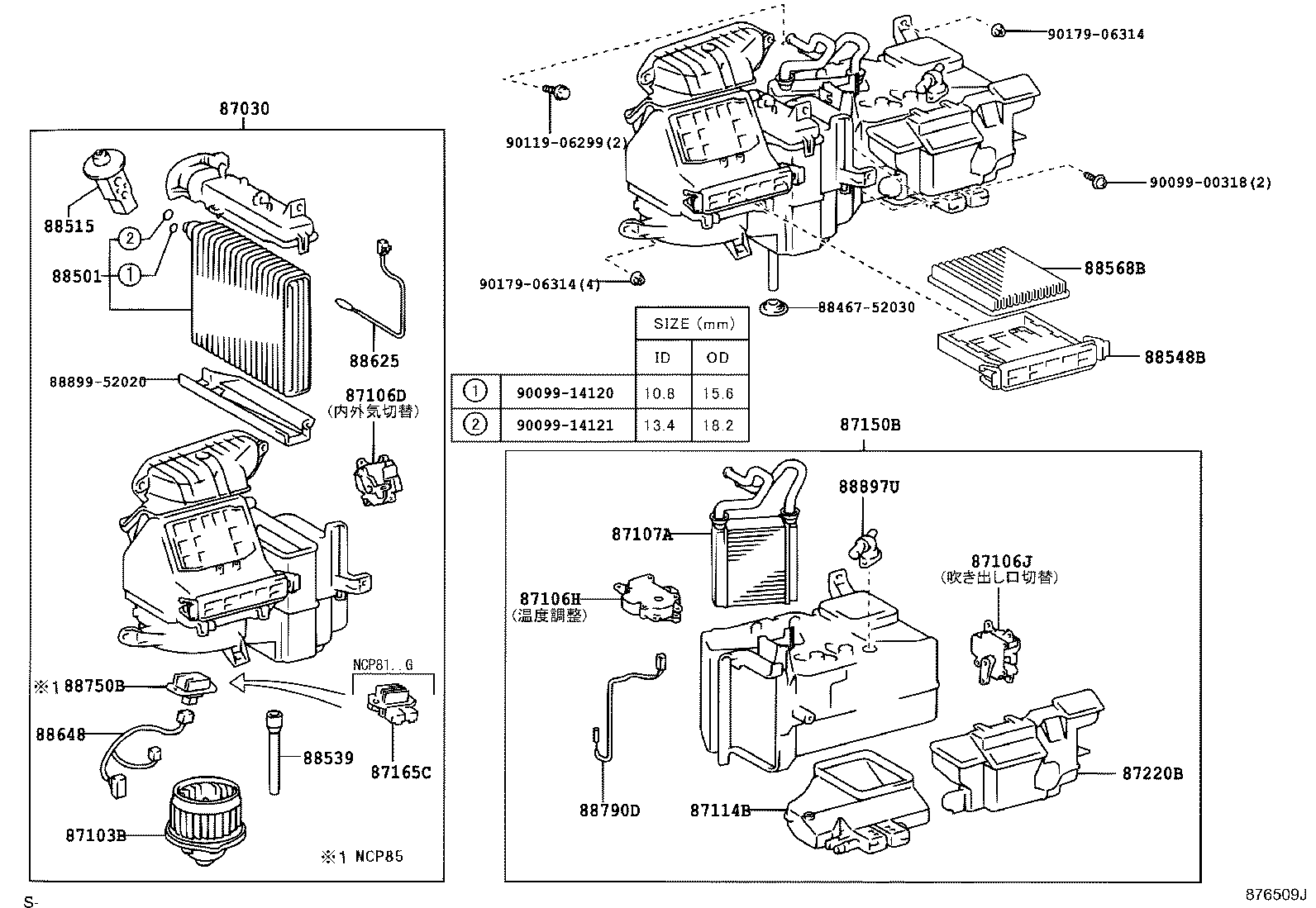

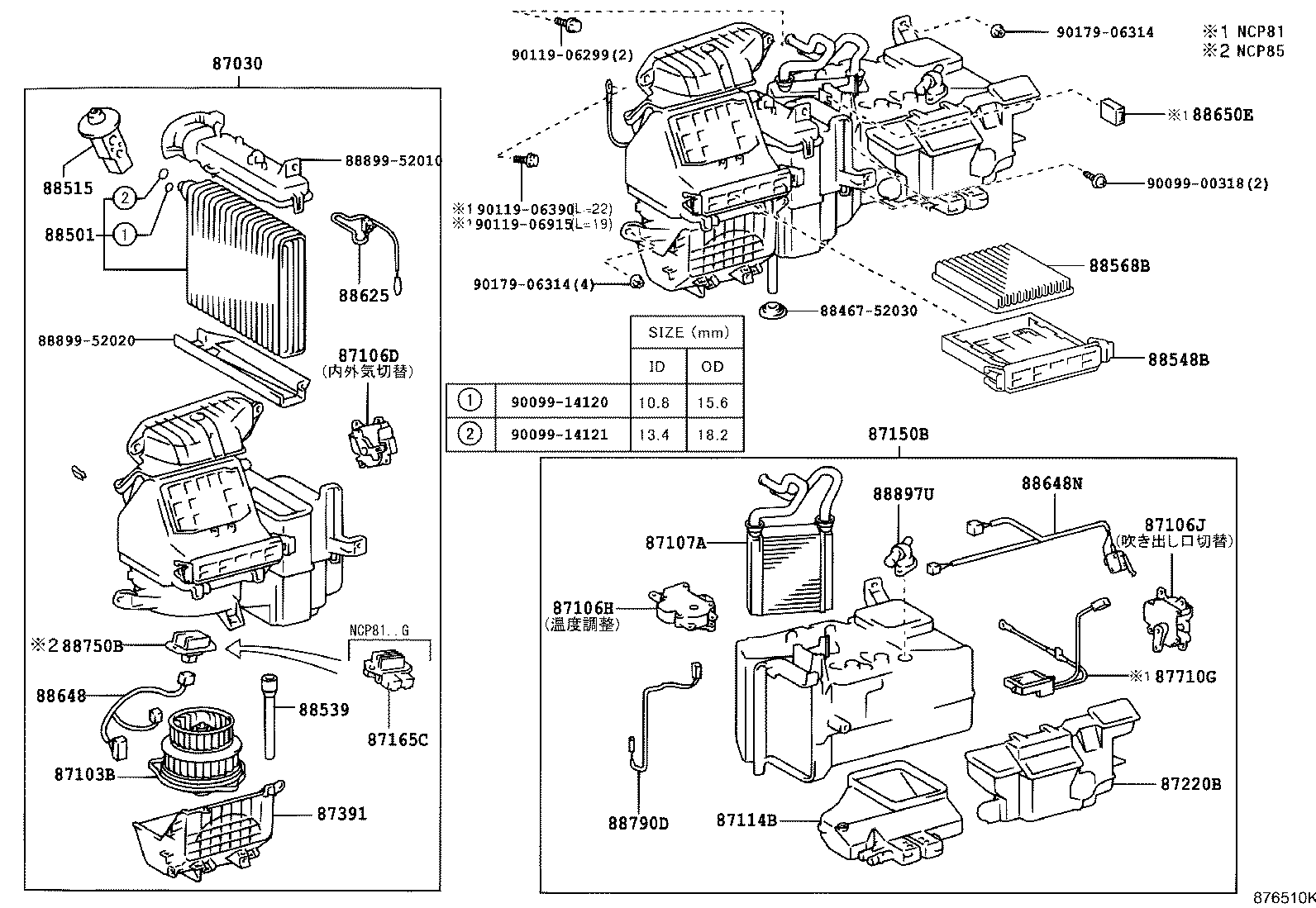

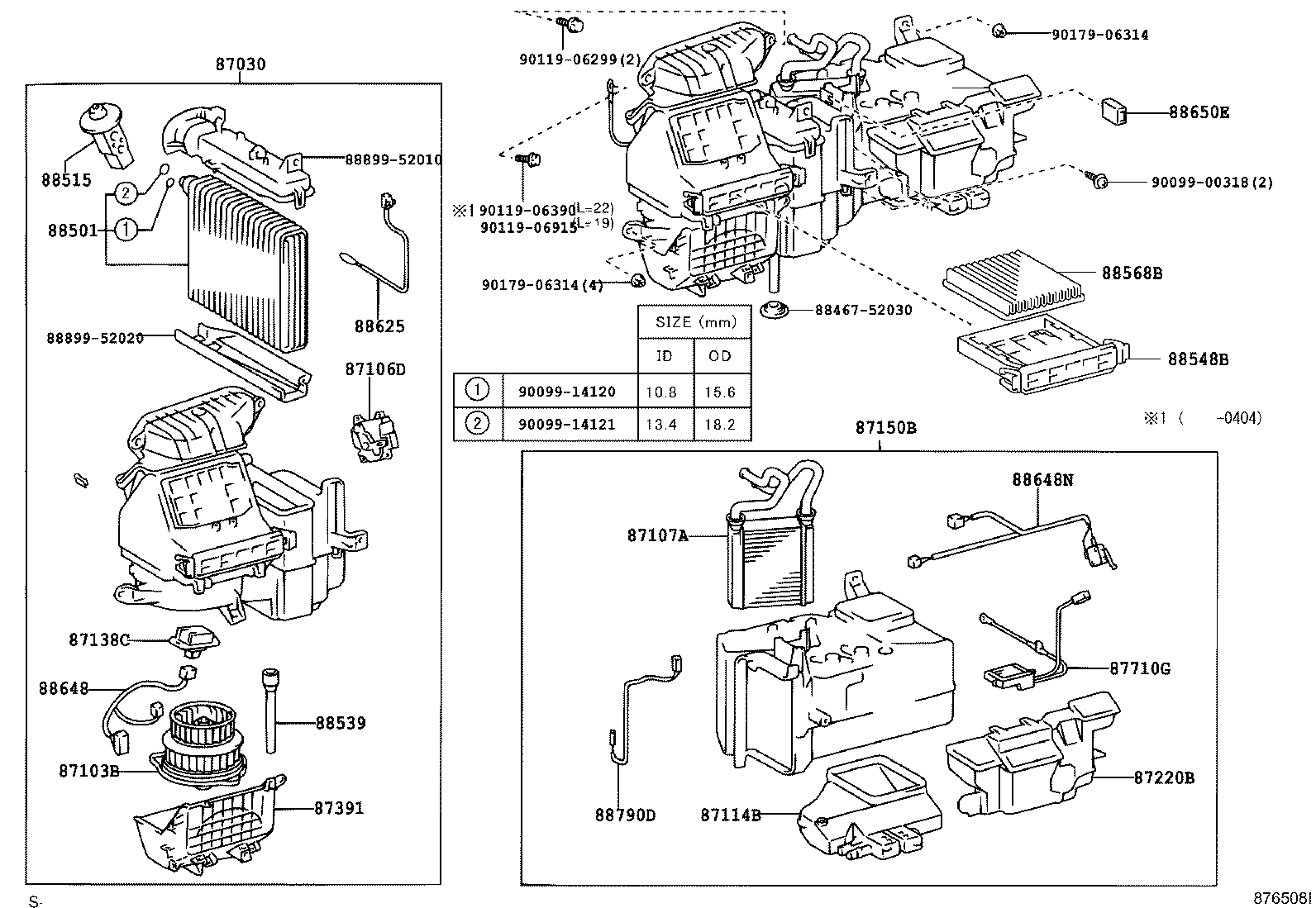

Heating & Air Conditioning - Cooler Unit
25 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 87030 | Blower Assy, Air Conditioner |
| 87103B | Motor Sub-assy, Blower W/Fan |
| 87106D | Servo Sub-assy, Damper, NO.1 |
| 87106H | Servo Sub-assy, Damper(FOR AIRMIX) |
| 87106J | Servo Sub-assy, Damper(FOR MODE) |
| 87107A | Unit Sub-assy, Heater Radiator |
| 87114B | Cover, Heater |
| 87138C | Resistor, Blower |
| 87150B | Radiator Assy, Heater |
| 87165C | Control, Blower Motor |
| 87220B | Duct Assy, Air |
| 87391 | Cover, Blower Motor |
| 87710G | Quick Heater Assy |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88515 | Valve, Cooler Expansion |
| 88539 | Hose, Cooler Unit Drain, NO.1 |
| 88548B | Case, Air Filter |
| 88568B | Filter, Air |
| 88625 | Thermistor, Cooler, NO.1 |
| 88648 | Wiring, Cooler, NO.1 |
| 88648N | Wiring, Cooler, NO.2 |
| 88650E | Amplifier Assy, Air Conditioner, NO.1 |
| 88750B | Transistor Assy, Blower Resistor |
| 88790D | Thermistor Assy |
| 88897U | Pipe, Aspirator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
