Toyota Sienta

2003-09 → 2015-06 · chassis NCP8# · catalogue 119110 · Japan

Supported model Data version 2013-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

36 part groups · 4 illustrations

Illustrations

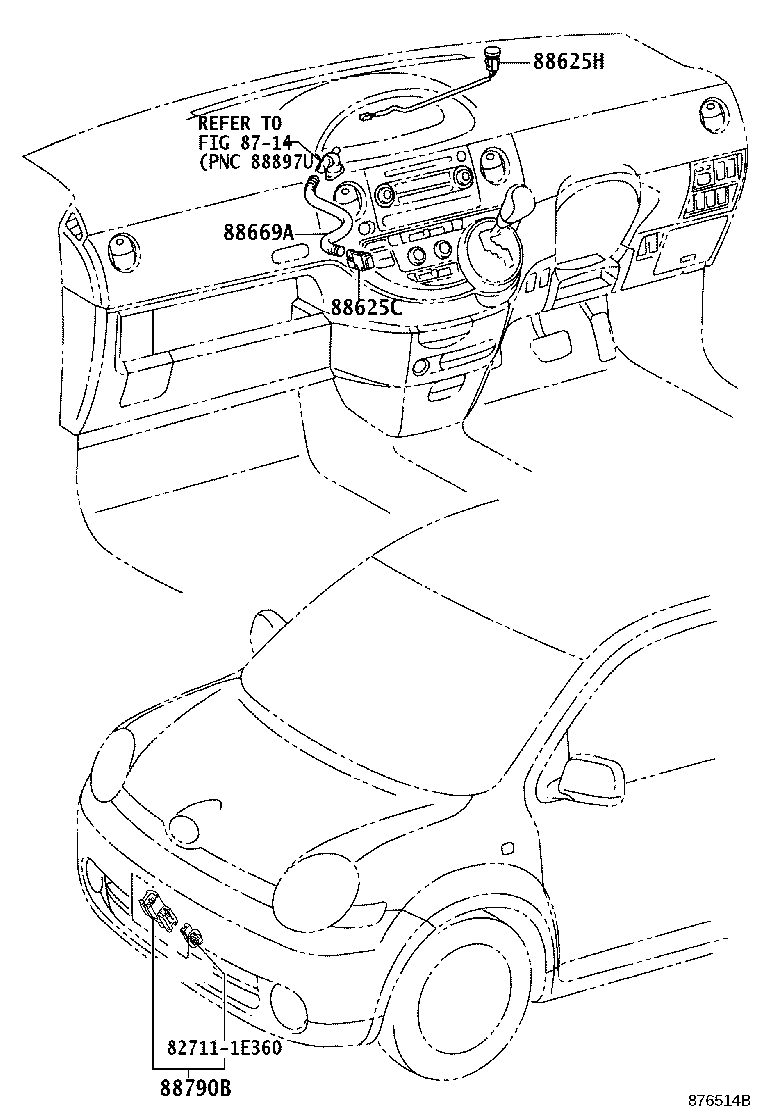

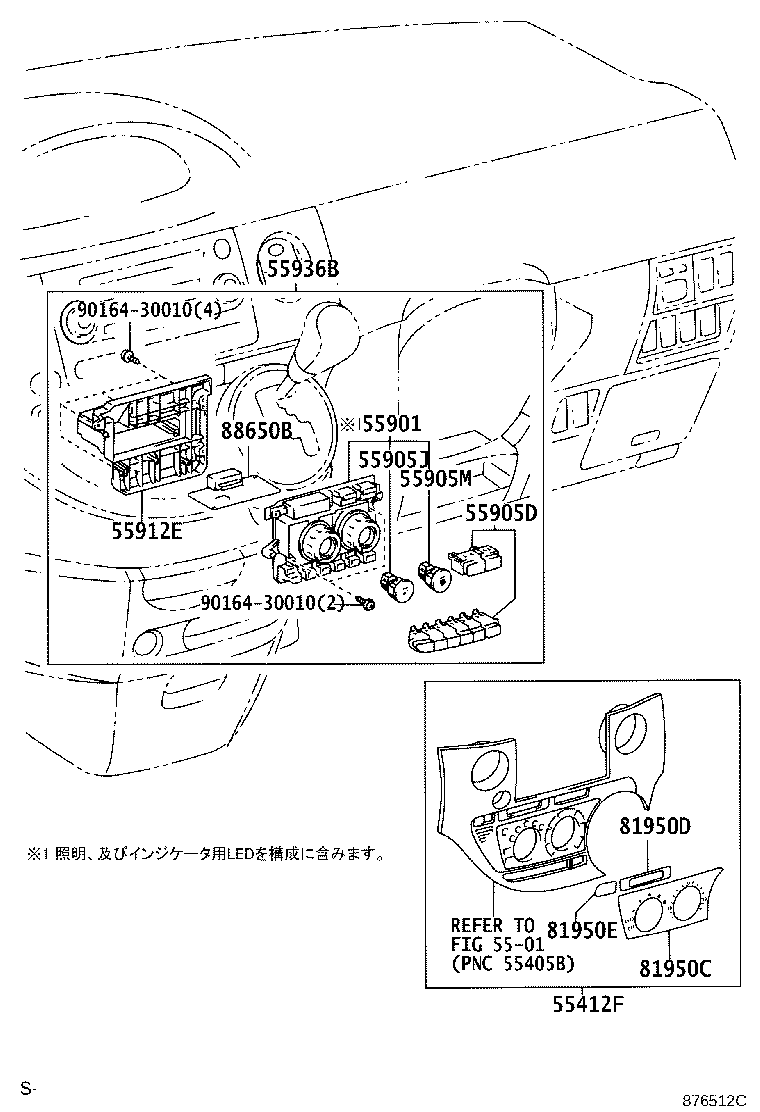

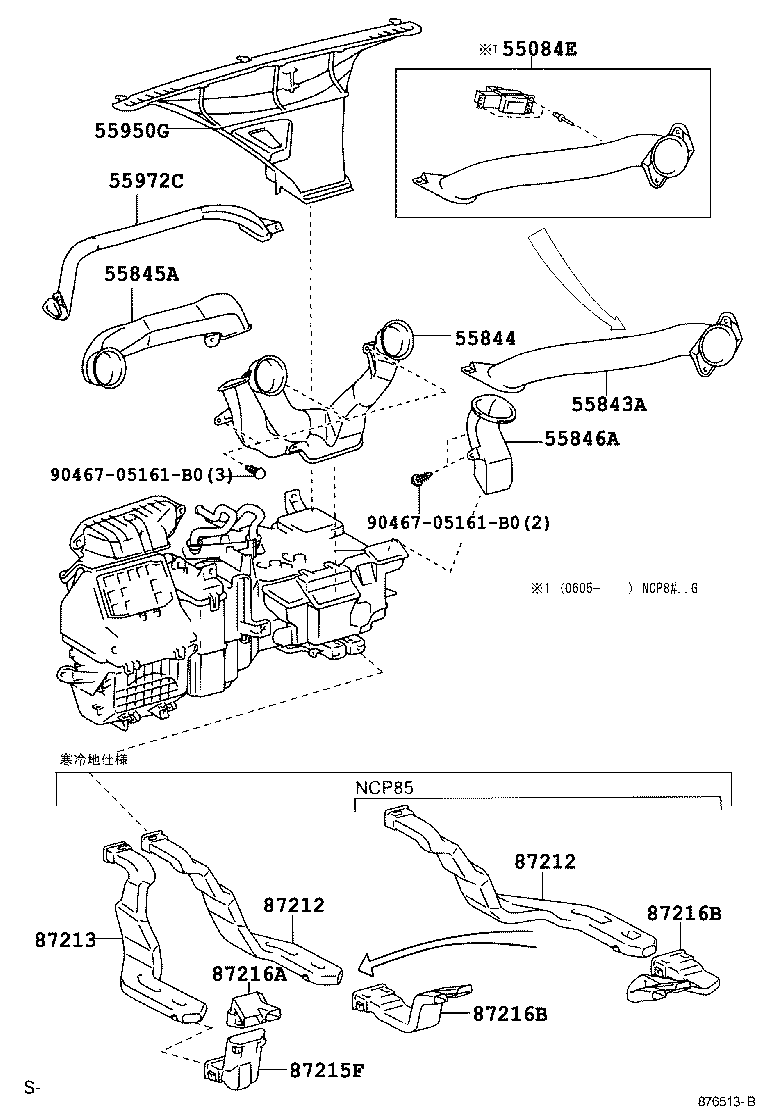

Figure 876511B 876511B 2003-09 → — Figure 876512C 876512C 2003-09 → — Figure 876513B 876513B 2003-09 → — Figure 876514B 876514B 2003-09 → —

Part groups

PNCDescription
55084E Duct Sub-assy, Heater TO Register, NO.1
55412F Panel, Instrument Cluster Finish, Center
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55846A Duct, Heater TO Register, NO.4
55900 Control Assy, Air Conditioner
55900B Bulb, Air Conditioner Control
55901 Base Sub-assy, Heater Control
55905D Knob Sub-assy, Control
55905J Knob Sub-assy, Control
55905M Knob Sub-assy, Control
55906A Cable Sub-assy, Defroster Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910R Control Assy, Heater
55912E Base, Heater Control, Lower
55916A Lever, Cooler Control
55918A Lever, Air Inlet Damper Control
55933A Clamp, Heater Control Cable
55936B Switch, Center Cluster Module
55950G Nozzle Assy, Defroster
55972C Duct, Side Defroster Nozzle, NO.2
81950C Lens Assy, Center Cluster Module Indicator
81950D Lens Assy, Switch Indicator, NO.2
81950E Lens Assy, Switch Indicator, NO.1
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87215F Duct, Air, Rear NO.3
87216A Duct, Air, Rear NO.5
87216B Duct, Air, Rear NO.4
88625C Thermistor, Cooler
88625H Thermistor, Cooler (SOLAR SENSOR)
88650B Amplifier Assy, Airconditioner
88669A Hose (FOR COOLER THERMISTOR)
88790B Thermistor Assy
