Toyota Sienta

2003-09 → 2015-06 · chassis NCP8# · catalogue 119110 · Japan

Supported model Data version 2013-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

3 part groups · 2 illustrations

Illustrations

Figure 876500E

876500E 2003-09 → —

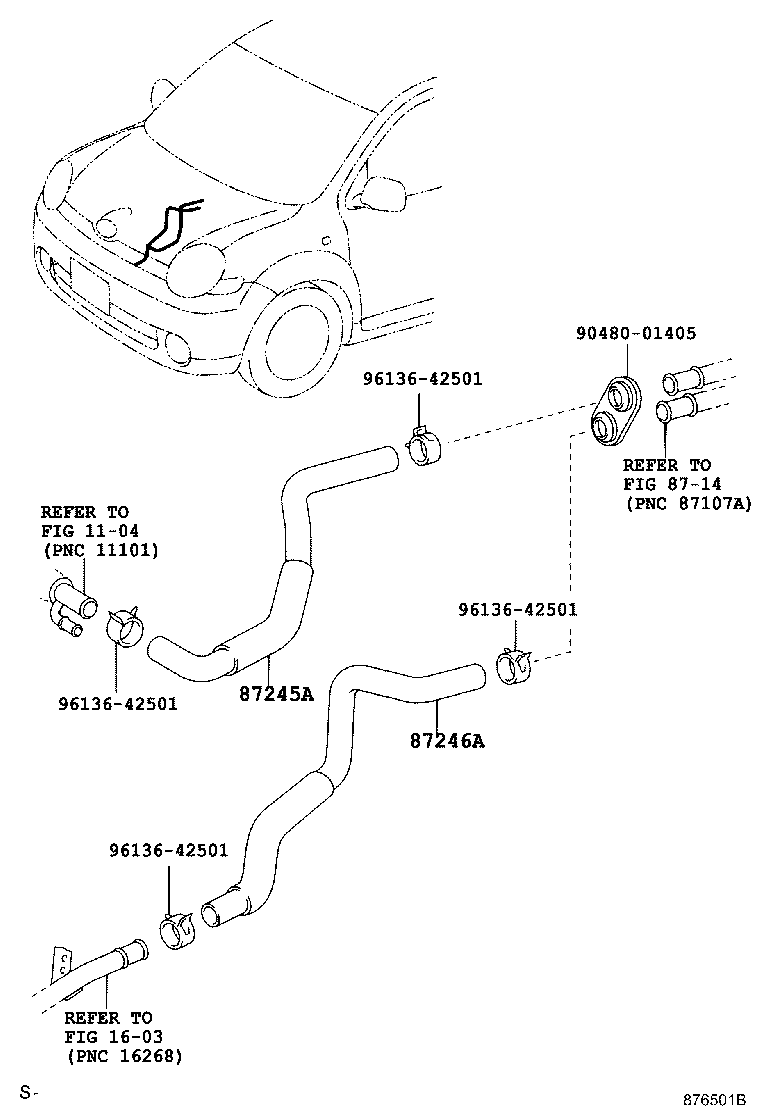

Figure 876501B

876501B 2003-09 → —

Part groups

PNC	Description
87245A	Hose, Heater Water, Inlet A
87246A	Hose, Heater Water, Outlet A
87248A	Pipe, Heater Water Inlet, A

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
