Toyota Passo Sette

2008-12 → 2012-03 · chassis M502E,M512E · catalogue 119120 · Japan

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Block

13 part groups · 2 illustrations

Illustrations

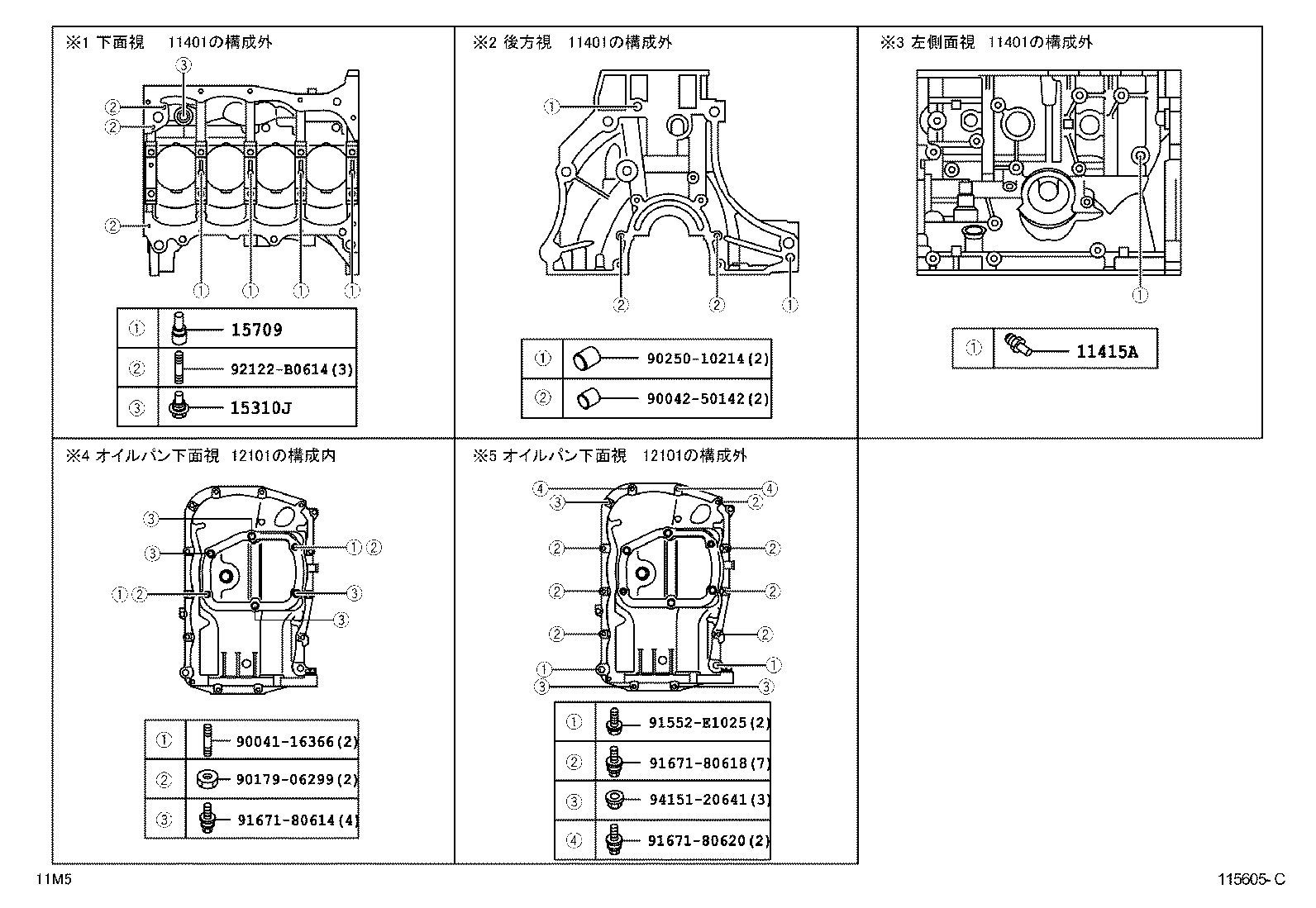

Figure 115604B 115604B 2008-12 → — Figure 115605C 115605C 2008-12 → —

Part groups

PNCDescription
11401 Block Sub-assy, Cylinder
11401K Union(FOR OIL FILTER BRACKET)
11415A Plug, Water Drain Cock(FOR CYLINDER BLOCK)
11416 Bolt(FOR CRANKSHAFT BEARING CAP SET)
11434J Pin, Ring (FOR CYLINDER HEAD SET)
12101 Pan Sub-assy, Oil
12101A Plug(FOR OIL PAN DRAIN)
12101B Gasket(FOR OIL PAN DRAIN PLUG)
12102A Pan Sub-assy, Oil, NO.2
15301 Gage Sub-assy, Oil Level
15310J Regulator Assy, Oil
15708 Nozzle Sub-assy, Oil, NO.1
15709 Nozzle Sub-assy, Oil, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
