Toyota Passo Sette
2008-12 → 2012-03 · chassis M502E,M512E · catalogue 119120 · Japan
Supported model
Data version 2012-04
Radiator & Water Outlet

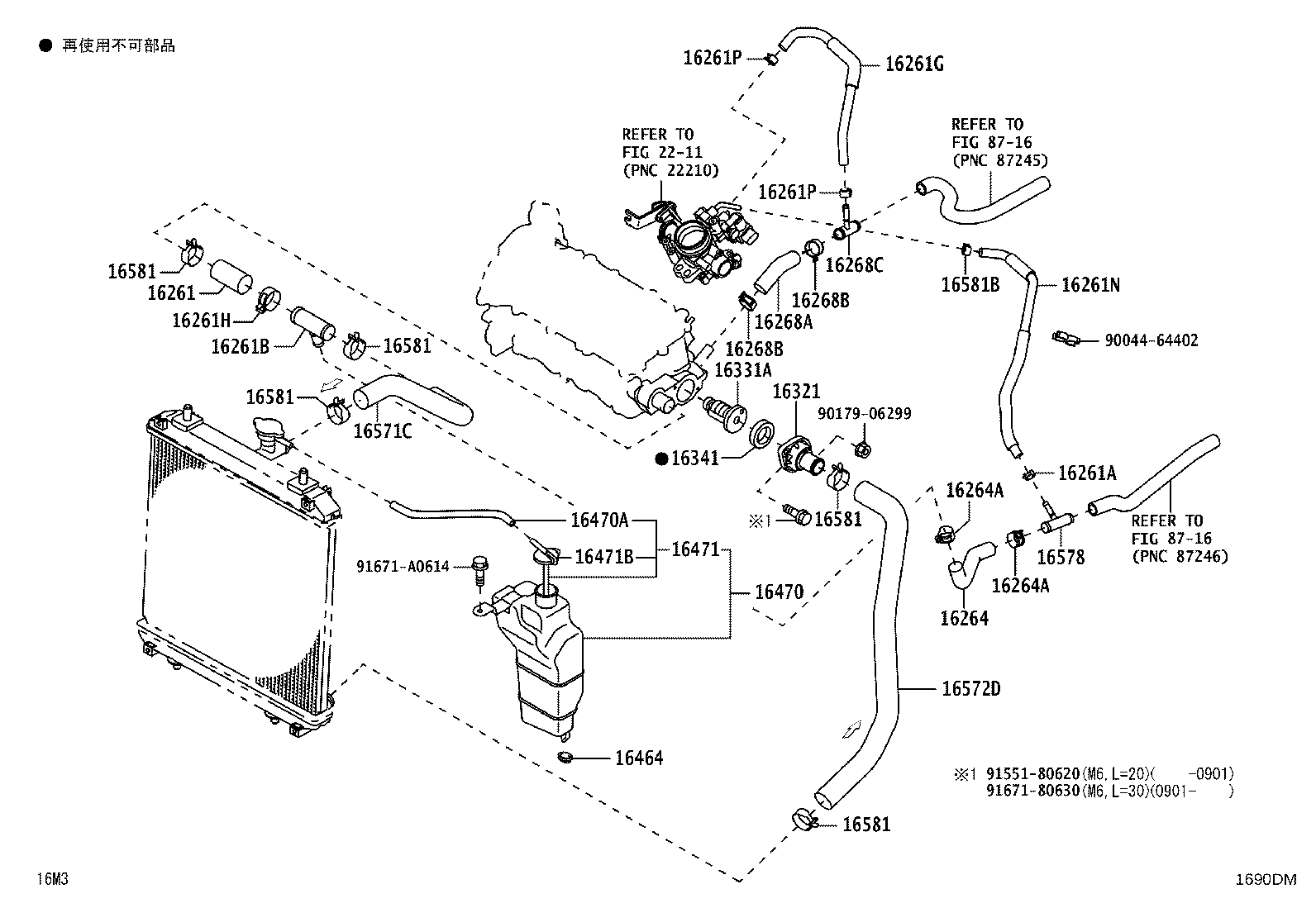

39 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 16261 | Hose, Water By-pass |
| 16261A | Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) |
| 16261B | Union(FOR WATER BY-PASS HOSE) |
| 16261G | Hose, Water By-pass, NO.1 |
| 16261H | Clip(FOR WATER BY-PASS HOSE NO.1) |
| 16261N | Hose, Water By-pass, NO.2 |
| 16261P | Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16264 | Hose, Water By-pass, NO.2 |
| 16264A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16268A | Hose(FOR WATER BY-PASS PIPE) |
| 16268B | Clamp OR Clip, Hose(FOR WATER BY-PASS PIPE) |
| 16268C | Union, Water By-pass Pipe |
| 16321 | Inlet, Water |
| 16331A | Thermostat |
| 16341 | Gasket, Water Outlet |
| 16360A | Fan Assy, W/Motor |
| 16361 | Fan |
| 16363 | Motor, Cooling Fan |
| 16381 | Bar, Fan Belt Adjusting |
| 16385 | Slider, Fan Belt Adjusting |
| 16400 | Radiator Assy |
| 16400A | Cock Sub-assy, Radiator Drain |
| 16400F | Packing(FOR RADIATOR DRAIN COCK) |
| 16401 | Cap Sub-assy, Radiator |
| 16464 | Bush, Tank Lower |
| 16470 | Tank Assy, Radiator Reserve |
| 16470A | Hose OR Pipe(FOR RADIATOR RESERVE TANK) |
| 16471 | Cap Sub-assy, Reserve Tank |
| 16471B | Cap, Reserve Tank |
| 16533C | Grommet(FOR RADIATOR SUPPORT) |
| 16535 | Support, Radiator, Lower |
| 16571C | Hose, Radiator, NO.1 |
| 16572D | Hose, Radiator, NO.2 |
| 16578 | Pipe, Radiator, NO.2 |
| 16581 | Clamp, Hose(FOR WATER HOSE) |
| 16581B | Clamp, Hose(FOR RADIATOR HOSE) |
| 16630D | Pulley Assy, Idler |
| 16630F | Pulley Assy, Idler, NO.2 |
| 16711 | Shroud, Fan |
