Toyota Passo Sette

2008-12 → 2012-03 · chassis M502E,M512E · catalogue 119120 · Japan

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

9 part groups · 2 illustrations

Illustrations

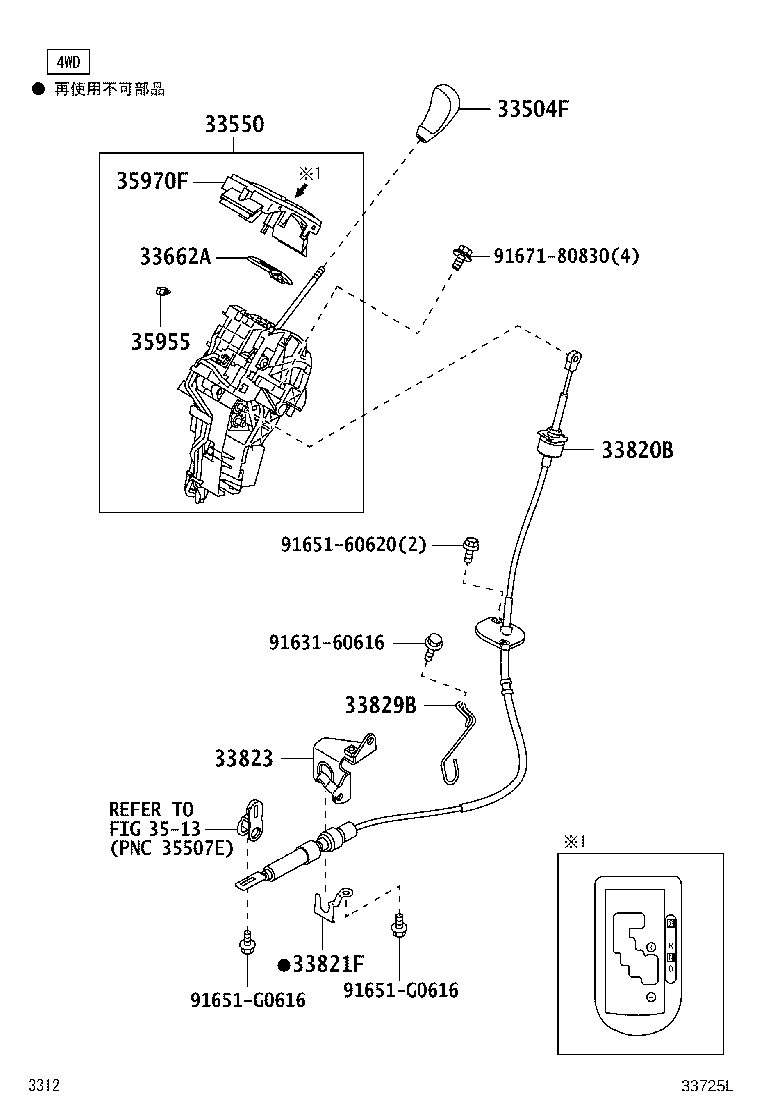

Figure 33725K 33725K 2008-12 → — Figure 33725L 33725L 2008-12 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33550 Floor Shift Assy, Transmission
33662A Cushion, Shift Lever Guide
33820B Cable Assy, Transmission Control
33821F Clamp, NO.2 (FOR TRANSMISSION CONTROL CABLE)
33823 Bracket, Transmission Control Cable, NO.1
33829B Clamp, Transmission Control Cable
35955 Bulb, Position Indicator Lamp
35970F Housing Assy, Position Indicator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
