Toyota Passo Sette

2008-12 → 2012-03 · chassis M502E,M512E · catalogue 119120 · Japan

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

24 part groups · 2 illustrations

Illustrations

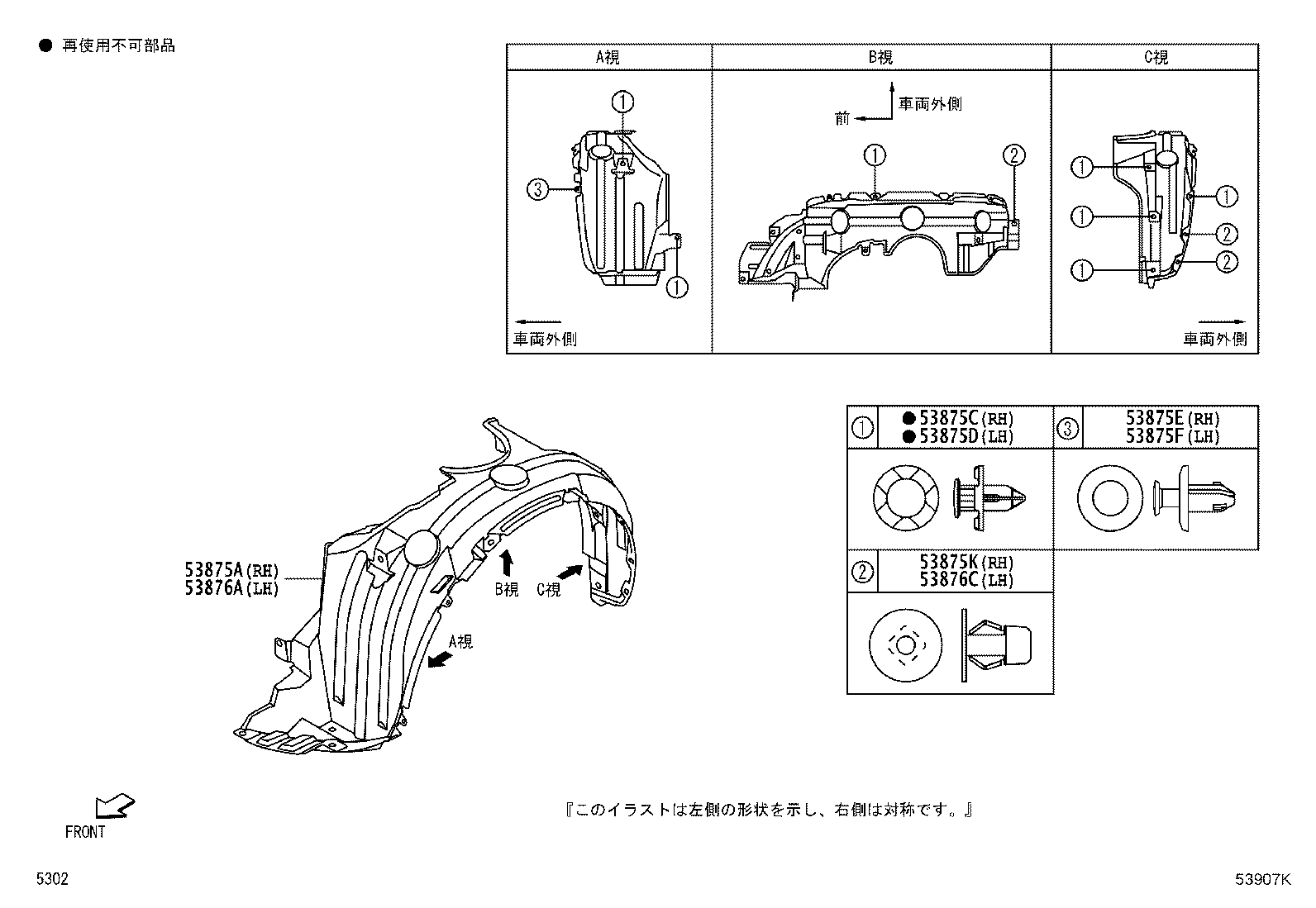

Figure 533093B 533093B 2008-12 → — Figure 53907K 53907K 2008-12 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53381 Seal, Hood TO Radiator Support
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53384B Cushion, Hood, Center
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53827L Protector, Front Fender Side Panel, RH
53827Q Clip, Front Fender Side Panel Protector, NO.1
53827R Clip, Front Fender Side Panel Protector, NO.2
53828K Protector, Front Fender Side Panel, LH
53875A Liner, Front Fender, RH
53875C Clip, Front Fender Liner
53875D Clip, Front Fender Liner, NO.2
53875E Clip, Front Fender Liner, NO.3
53875F Clip, Front Fender Liner, NO.4
53875G Clip, Front Fender Liner, NO.5
53875H Clip, Front Fender Liner, NO.6
53875K Grommet, Screw
53876A Liner, Front Fender, LH
53876C Grommet, Screw
53882F Seal, Front Fender
55738C Stopper, Hood, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
