Toyota Passo Sette

2008-12 → 2012-03 · chassis M502E,M512E · catalogue 119120 · Japan

Supported model Data version 2012-04

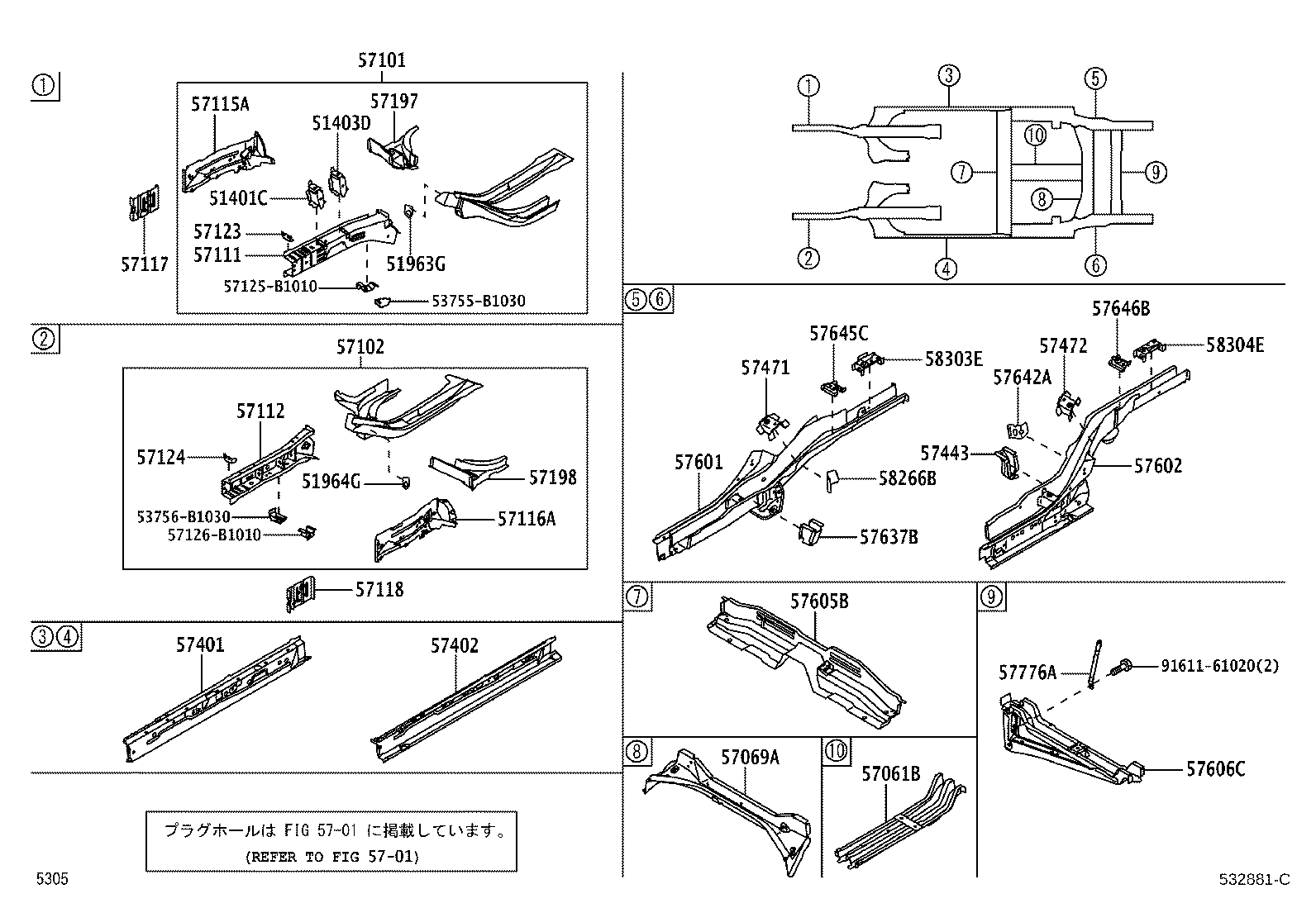

Floor Side Member

35 part groups · 2 illustrations

PNC	Description
51401C	Bracket Sub-assy, Engine Front Mounting, RH
51403D	Bracket Sub-assy, Engine Rear Mounting
51963G	Hook, Transport, Front RH
51964G	Hook, Transport, Front LH
57061B	Bracket Sub-assy, Fuel Tank Mounting, Front RH
57069A	Member, Rear Floor, Center
57101	Member Sub-assy, Front Side, RH
57102	Member Sub-assy, Front Side, LH
57111	Member, Front Side, RH
57112	Member, Front Side, LH
57115A	Plate, Front Side Member, Outer RH
57116A	Plate, Front Side Member, Outer LH
57117	Plate Sub-assy, Front Side Member, Front RH
57118	Plate Sub-assy, Front Side Member, Front LH
57123	Support, Front Side Member, RH
57124	Support, Front Side Member, LH
57197	Box, Torque, Front RH
57198	Box, Torque, Front LH
57401	Member Sub-assy, Main Floor Side, RH
57402	Member Sub-assy, Main Floor Side, LH
57443	Reinforcement, Center Floor Side Member
57471	Reinforcement, Seat Belt Anchor TO Floor Member, RH
57472	Reinforcement, Seat Belt Anchor TO Floor Member, LH
57601	Member Sub-assy, Rear Floor Side, RH
57602	Member Sub-assy, Rear Floor Side, LH
57605B	Member Sub-assy, Rear Floor Cross, NO.1
57606C	Member Sub-assy, Rear Floor Cross, NO.2
57637B	Reinforcement, Rear Floor Side Member, Center RH
57642A	Reinforcement, Rear Floor Side Member, Inner LH
57645C	Reinforcement, Rear Floor Side Member, Rear NO.3 RH
57646B	Reinforcement, Rear Floor Side Member, Rear NO.3 LH
57776A	Brace, Rear Lower Arm Bracket
58266B	Bracket, Fuel Tube Clamp
58303E	Reinforce Sub-assy, Rear Bumper Arm Support, RH
58304E	Reinforce Sub-assy, Rear Bumper Arm Support, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
