Toyota Passo Sette

2008-12 → 2012-03 · chassis M502E,M512E · catalogue 119120 · Japan

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

15 part groups · 2 illustrations

Illustrations

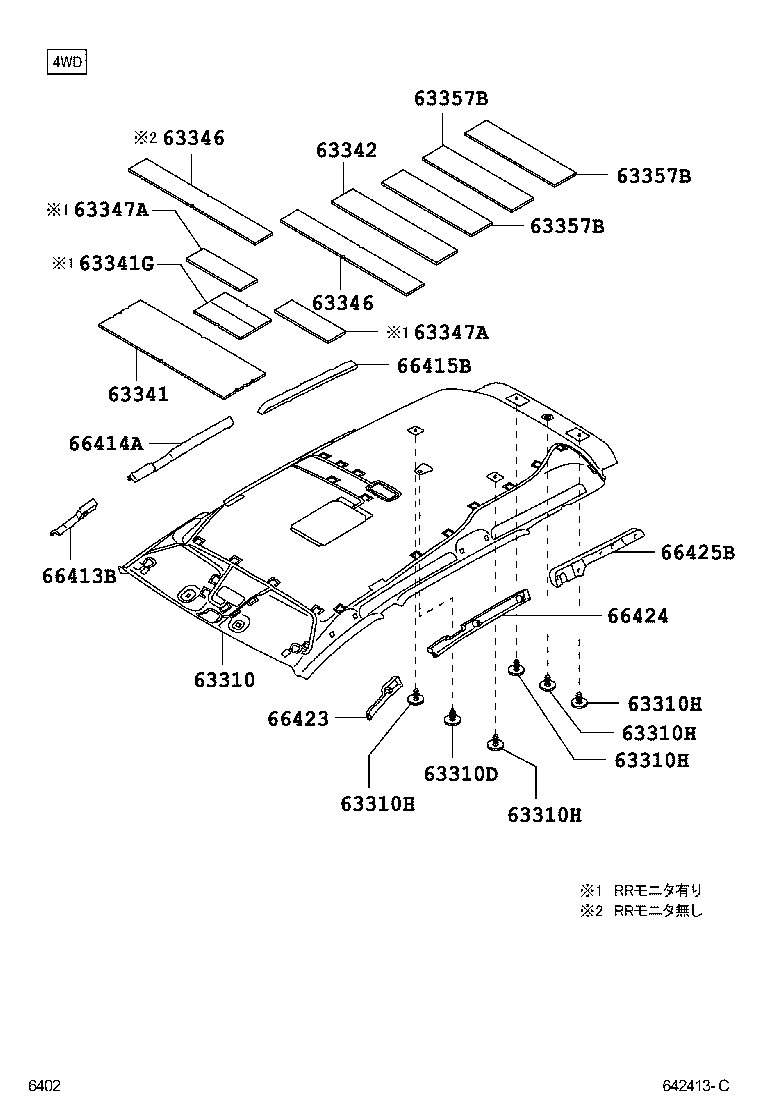

Figure 642370E 642370E 2008-12 → — Figure 642413C 642413C 2008-12 → —

Part groups

PNCDescription
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63310H Clip(FOR ROOF HEADLINING)
63341 Pad, Roof Silencer, NO.1
63341G Pad, Roof Silencer
63342 Pad, Roof Silencer, NO.2
63346 Pad, Roof Silencer, NO.6
63347A Pad, Roof Silencer, NO.7
63357B Silencer, Roof
66413B Spacer, Side Rail, Front RH
66414A Spacer, Side Rail, Rear RH
66415B Spacer, Side Rail, Rear NO.2 RH
66423 Spacer, Side Rail, Front LH
66424 Spacer, Side Rail, Rear LH
66425B Spacer, Side Rail, Rear NO.2 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
