Toyota Passo Sette
2008-12 → 2012-03 · chassis M502E,M512E · catalogue 119120 · Japan
Supported model
Data version 2012-04
Rear Door Panel & Glass
44 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 67003 | Panel Sub-assy, Rear Door, RH |
| 67003B | Grommet(FOR REAR DOOR PANEL) |
| 67003C | Cushion, Rear Door Panel |
| 67004 | Panel Sub-assy, Rear Door, LH |
| 67215D | Stop, Rear Door Window, Upper |
| 67216E | Stopper, Rear Door Glass, Upper NO.2 |
| 67407D | Guide Sub-assy, Rear Door Window, Rear RH |
| 67408D | Guide Sub-assy, Rear Door Window, Rear LH |
| 67485B | Seal, Rear Door Division Bar, Inside, RH |
| 67486B | Seal, Rear Door Division Bar, Inside, LH |
| 67487E | Garnish, Rear Door Rear Guide Bracket, RH |
| 67488E | Garnish, Rear Door Rear Guide Bracket, LH |

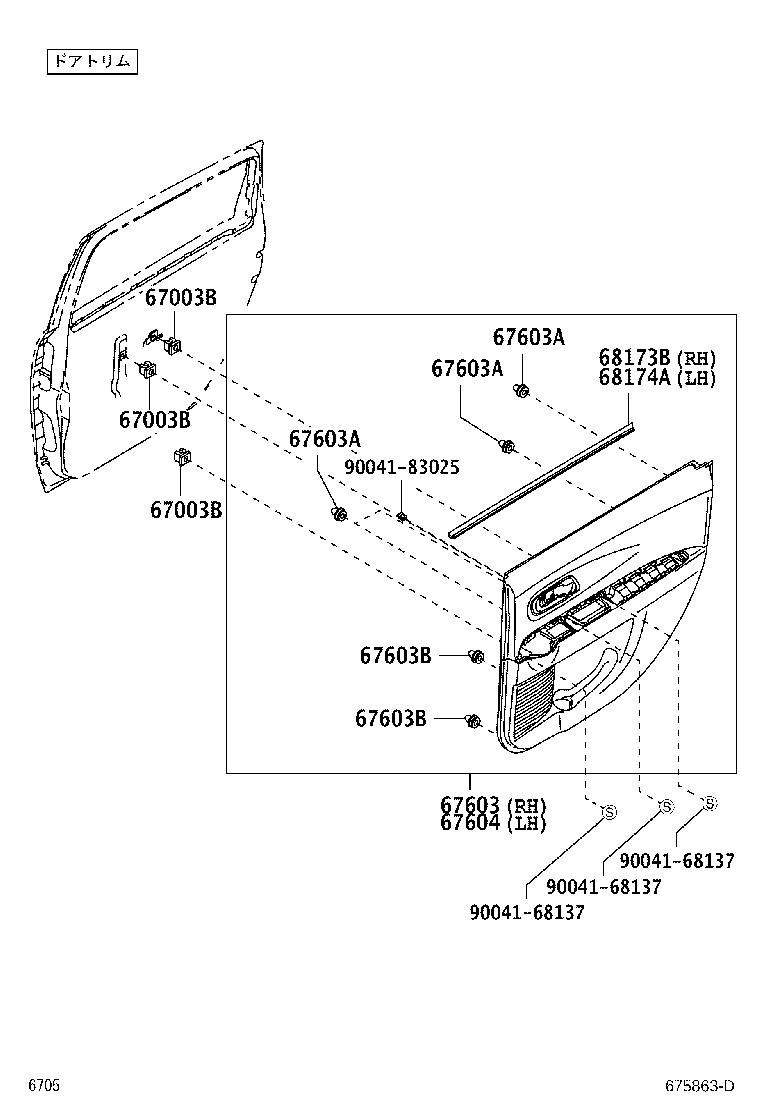

| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67603A | Retainer(FOR REAR DOOR TRIM BOARD) |
| 67603B | Clip(FOR REAR DOOR TRIM BOARD) |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67811A | Pad, Rear Door Silencer |
| 67836 | Cover, Rear Door Lock Child Protection, RH |
| 67836H | Cover, Rear Door Lock Child Protection, LH |
| 67841B | Cover, Rear Door Service Hole |
| 67867D | Retainer, Rear Door Weatherstrip, RH |
| 67867J | Clip, Door Weatherstrip, RH(FOR REAR DOOR) |
| 67867K | Clip, Door Weatherstrip, LH(FOR REAR DOOR) |
| 67868D | Retainer, Rear Door Weatherstrip, LH |
| 67868G | Retainer, Door Weatherstrip |
| 67868J | Retainer, Door Weatherstrip |
| 67869D | Clip, Door Weatherstrip |
| 67869K | Clip, Door Weatherstrip, LH |
| 67871 | Weatherstrip, Rear Door, RH |
| 67872 | Weatherstrip, Rear Door, LH |
| 67877A | Retainer, Rear Door Glass Front Weatherstrip, RH |
| 67878A | Retainer, Rear Door Glass Front Weatherstrip, LH |
| 68103 | Glass Sub-assy, Rear Door, RH |
| 68104 | Glass Sub-assy, Rear Door, LH |
| 68142C | Run, Rear Door Glass, RH |
| 68152C | Run, Rear Door Glass, LH |
| 68173B | Weatherstrip, Rear Door Glass, Inner RH |
| 68174A | Weatherstrip, Rear Door Glass, Inner LH |
| 68180C | Weatherstrip Assy, Rear Door Glass, Outer RH |
| 68230C | Weatherstrip Assy, Rear Door Glass, Outer LH |
| 68630D | Check Assy, Rear Door, RH |
| 68640A | Check Assy, Rear Door, LH |
| 75925C | Tape, Black Out, NO.3 RH |
| 75926C | Tape, Black Out, NO.3 LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
