Toyota Passo Sette

2008-12 → 2012-03 · chassis M502E,M512E · catalogue 119120 · Japan

Supported model Data version 2012-04

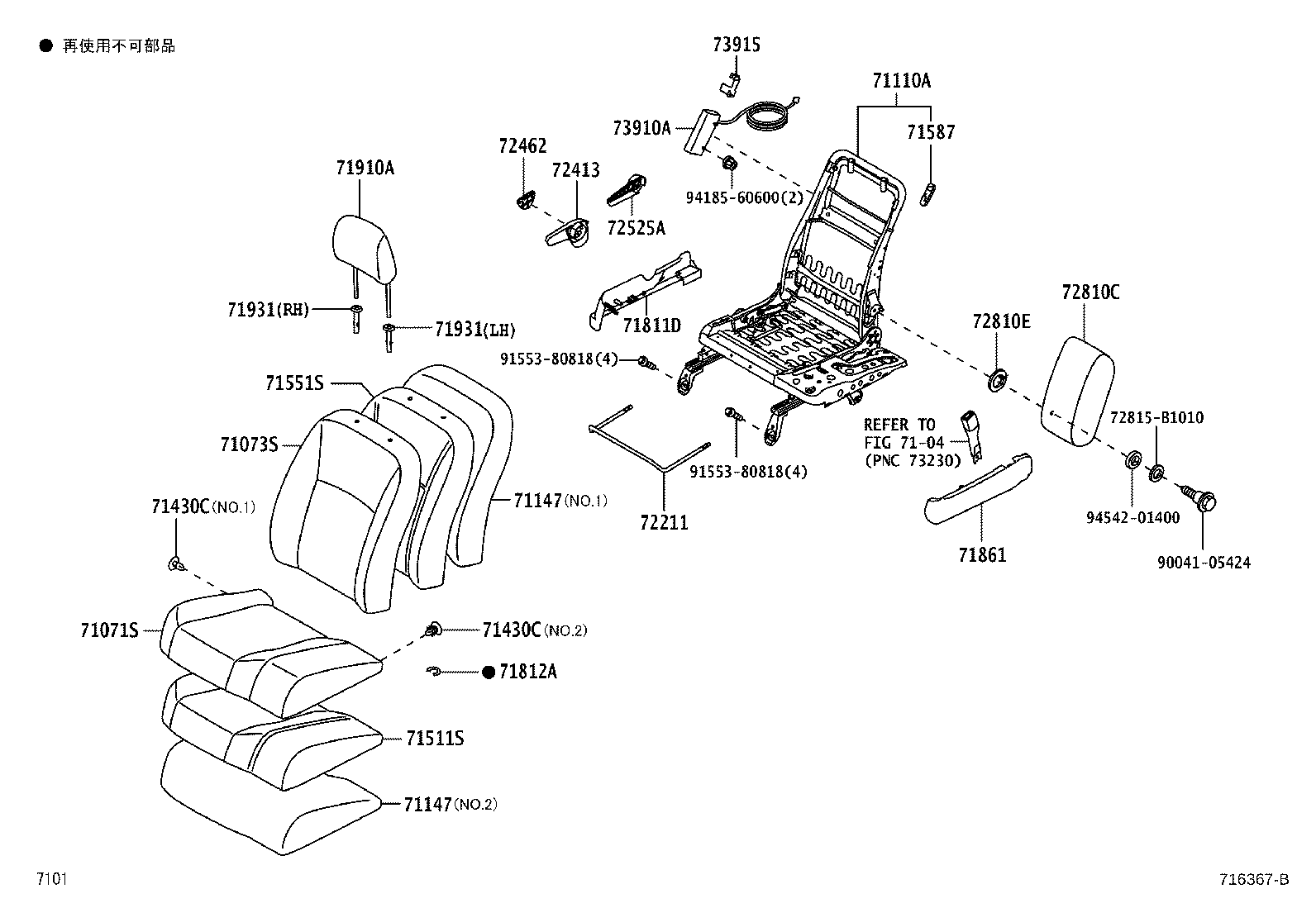

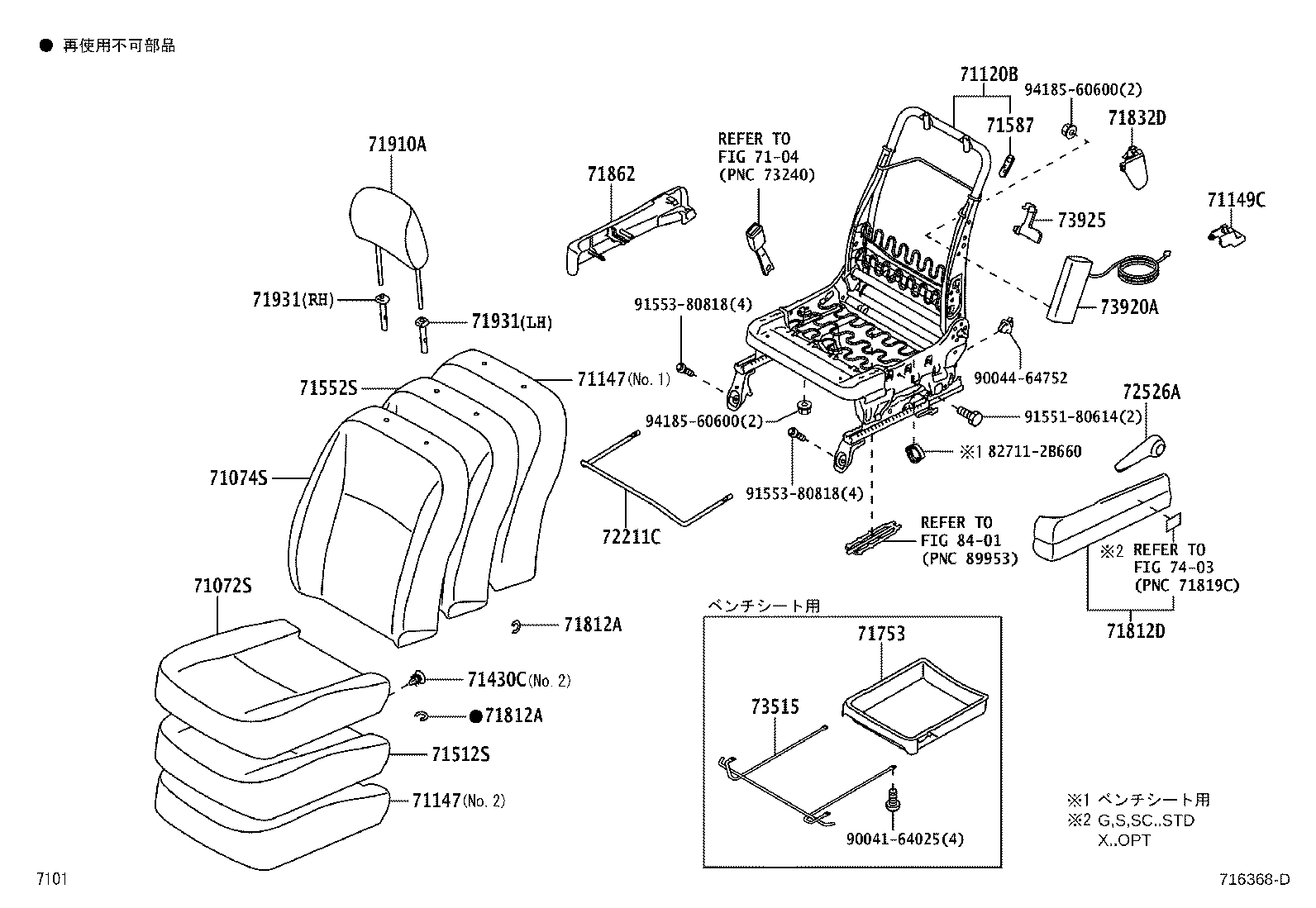

Front Seat & Seat Track

38 part groups · 3 illustrations

PNC	Description
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71110A	Frame Assy, Front Seat W/Adjuster, RH
71120B	Frame Assy, Front Seat W/Adjuster, LH
71139C	Cover, Front Seat Leg, RH
71147	Silencer, Seat Spring
71149C	Cover, Front Seat Leg, LH (FOR LH SEAT)
71430C	Clip
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71587	Protector, Front Seatback Edge
71753	Tray, Front Seat Under
71811D	Shield, Front Seat Cushion, RH
71812A	Ring, Hog, Small (FOR FRONT SEAT)
71812D	Shield, Front Seat Cushion, LH
71831B	Cover, Front Seat Hinge, RH
71832D	Cover, Front Seat Hinge, LH
71861	Shield, Front Seat Cushion, Inner RH
71862	Shield, Front Seat Cushion, Inner LH
71910A	Headrest Assy, Front Seat
71931	Support, Front Seat Headrest
72211	Handle, Seat Track Adjusting
72211C	Handle, Seat Track Adjusting
72413	Lever, Vertical Adjuster Lock
72462	Cover, Vertical Adjuster RH
72525A	Handle, Reclining Adjuster Release, RH
72526A	Handle, Reclining Adjuster Release, LH
72810C	Armrest Assy, Front Seat, Center
72810E	Bush, Front Seat Armrest, NO.1
73515	Rail, Front Seat Under Tray, NO.1
73910A	Airbag Assy, Front Seat, RH
73915	Cover, Seat Airbag NO.1, RH
73920A	Airbag Assy, Front Seat, LH
73925	Cover, Seat Airbag NO.1, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
