Toyota Passo Sette

2008-12 → 2012-03 · chassis M502E,M512E · catalogue 119120 · Japan

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

21 part groups · 7 illustrations

Illustrations

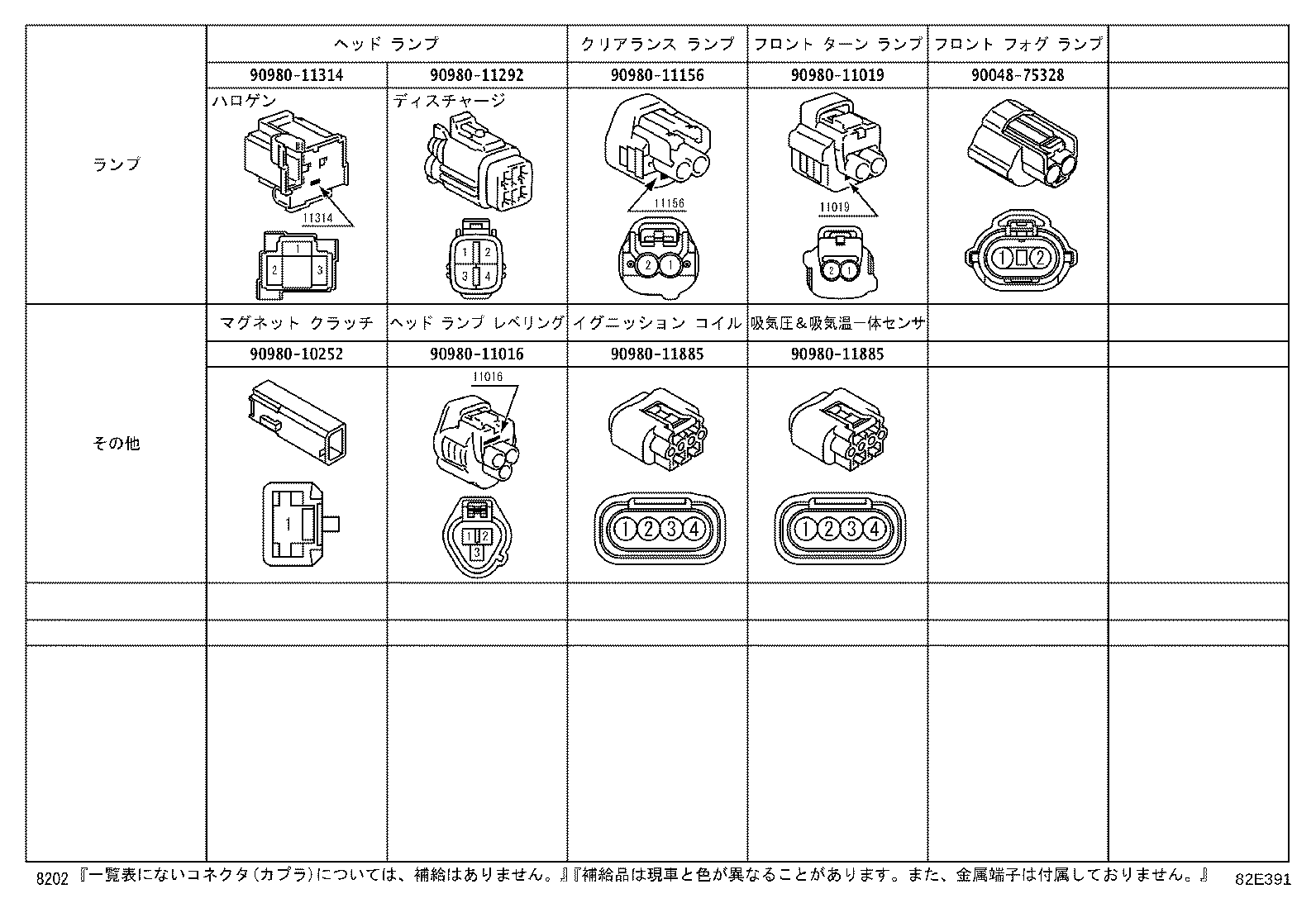

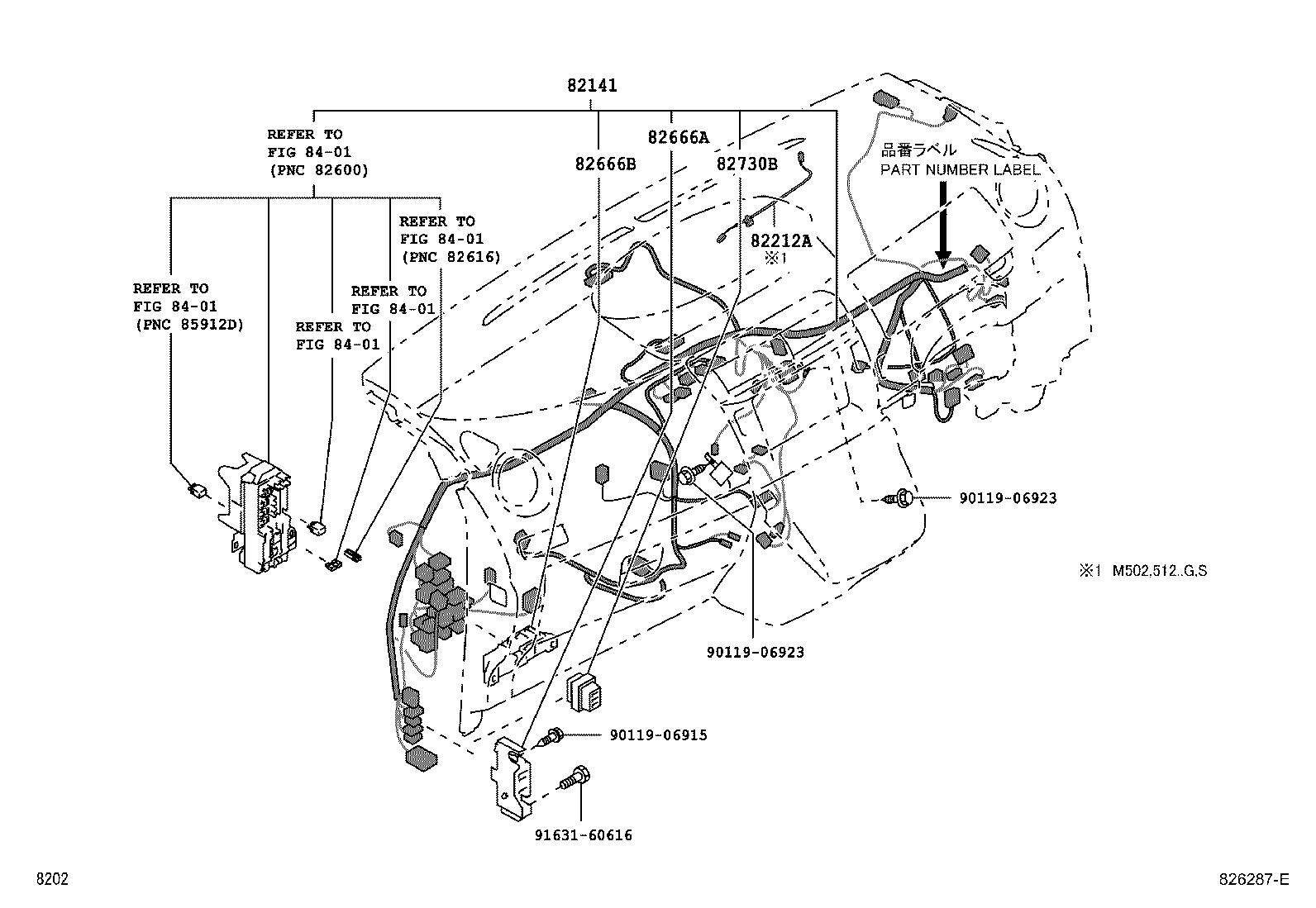

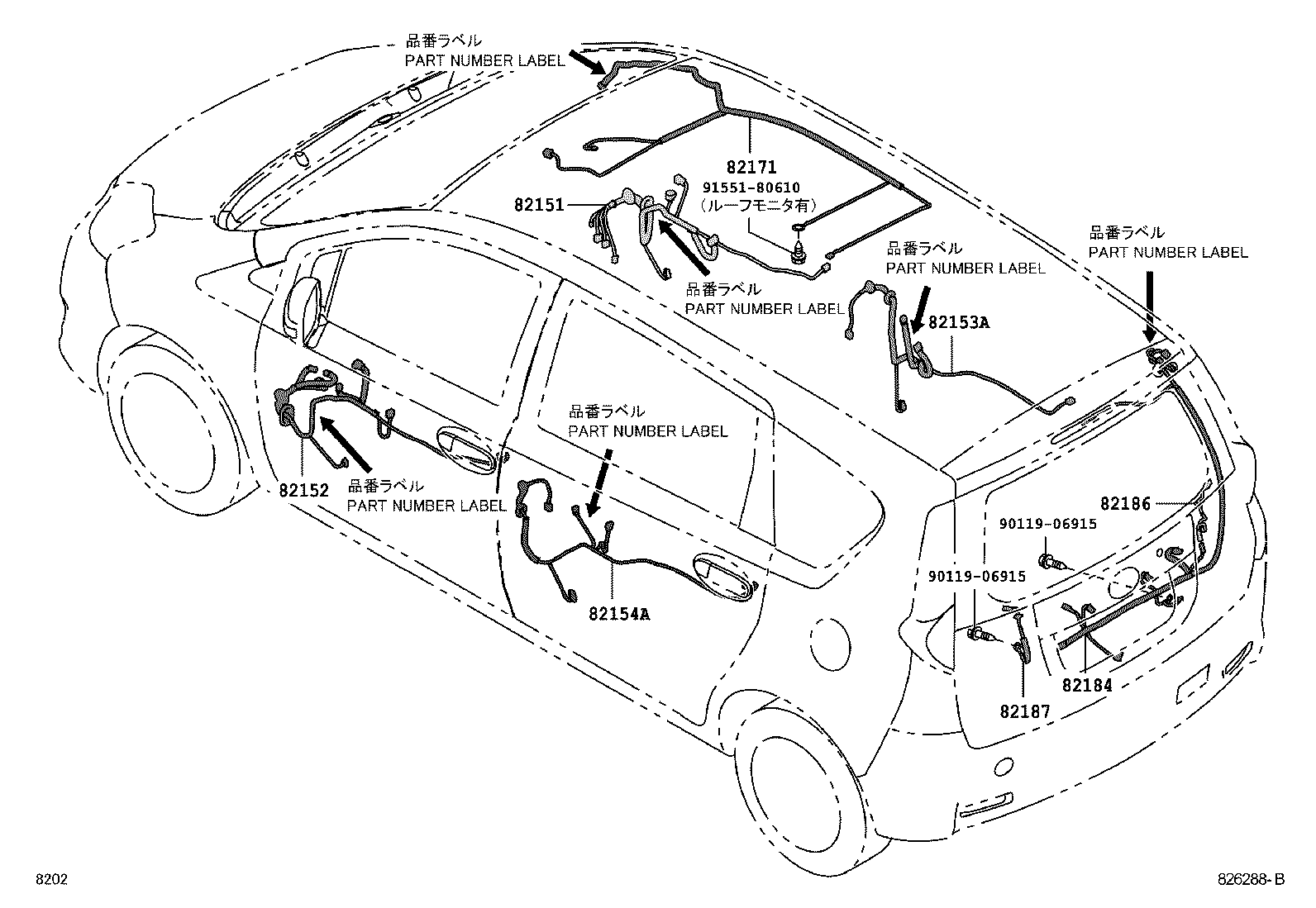

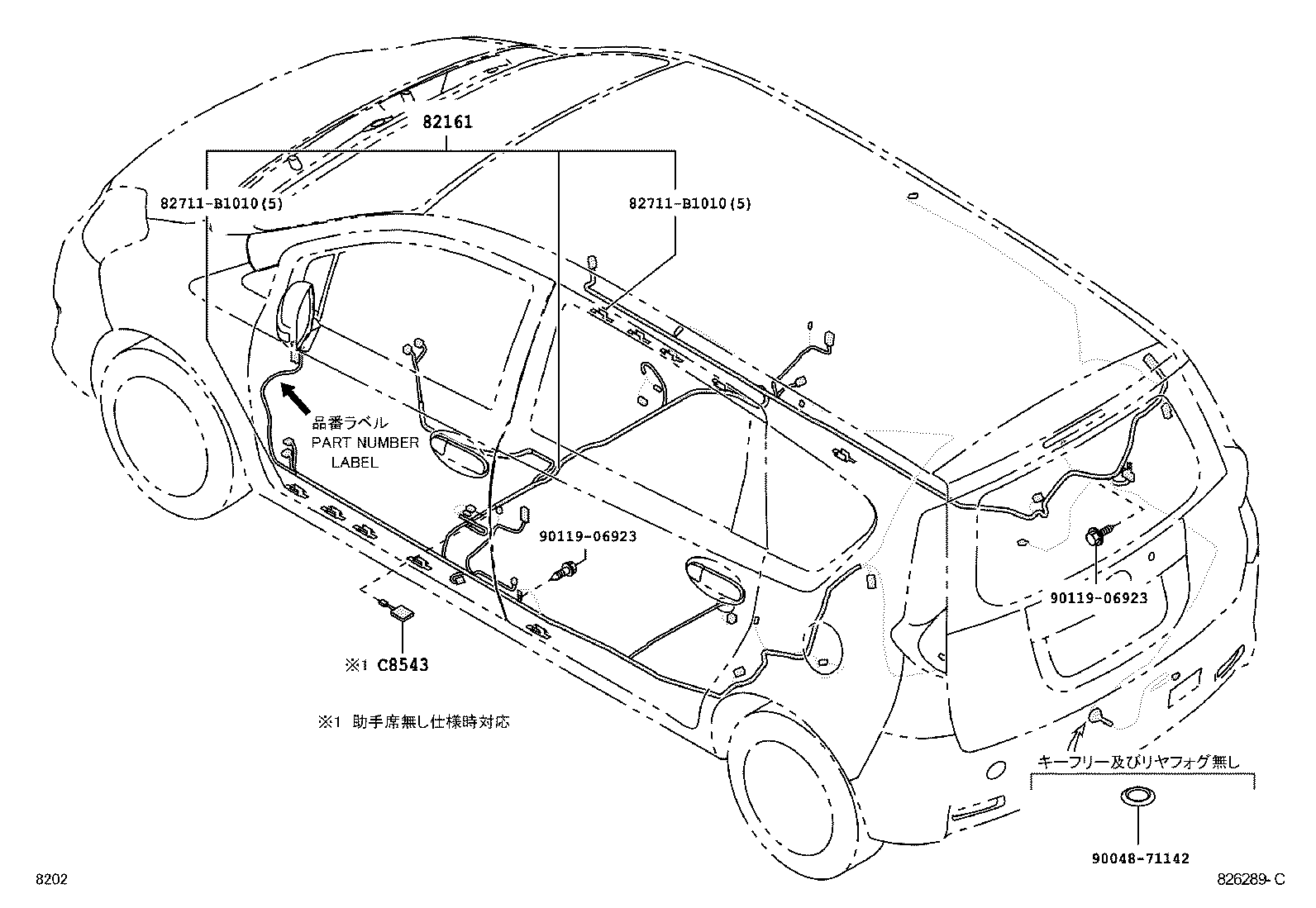

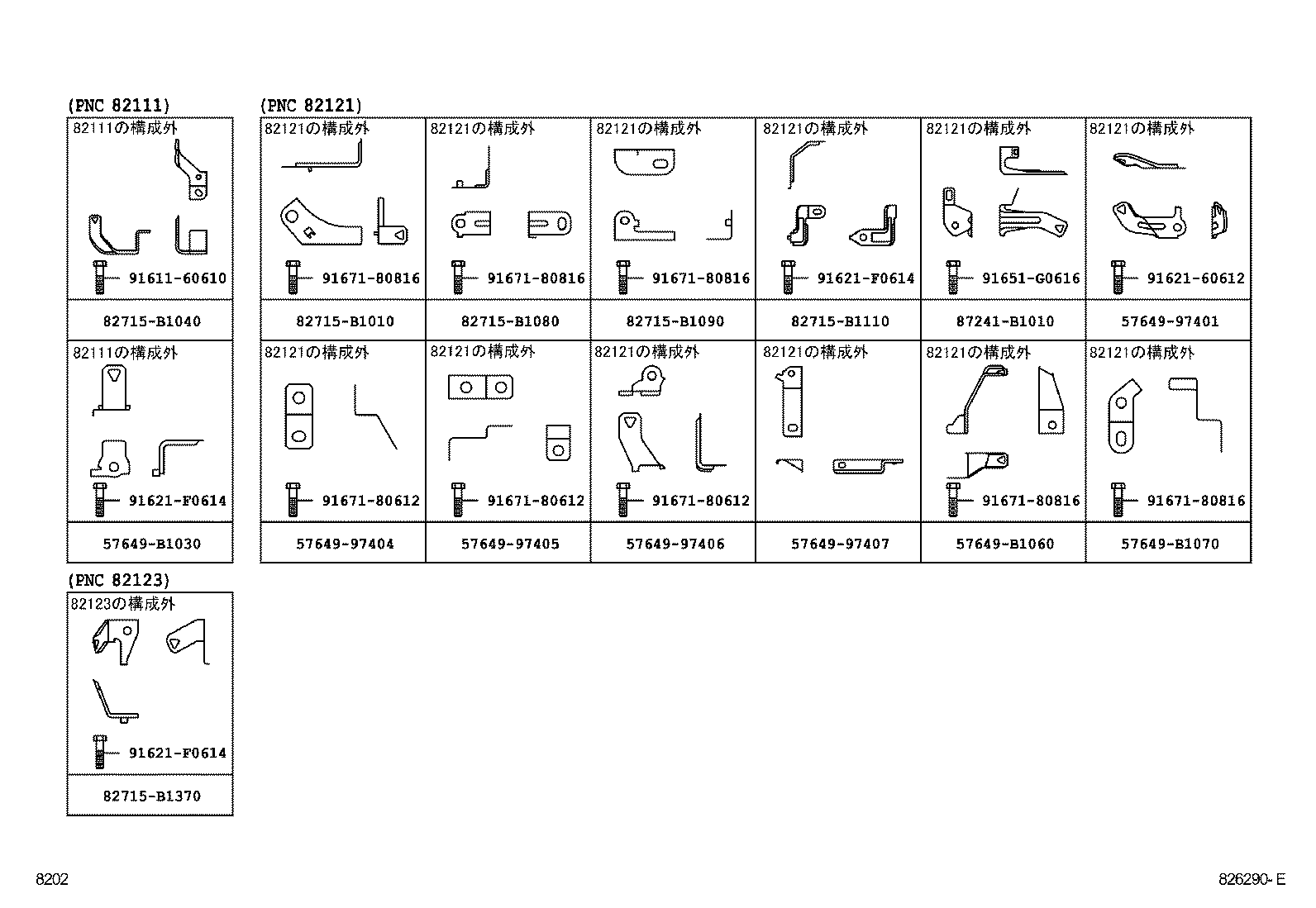

Figure 826285F 826285F 2008-12 → — Figure 826286C 826286C 2008-12 → — Figure 826287E 826287E 2008-12 → — Figure 826288B 826288B 2008-12 → — Figure 826289C 826289C 2008-12 → — Figure 826290E 826290E 2008-12 → — Figure 82E391 82E391 2008-12 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82121 Wire, Engine
82123 Wire, Engine, NO.3
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153A Wire, Rear Door, RH
82154A Wire, Rear Door, LH
82161 Wire, Floor
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82212A Harness, Air Conditioner
82217A Wire, Front Window Defogger
82627A Wire, Fusible Link
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82730B Block Assy, Passenger Side Junction
82821E Cover, Connector
C8543 Resistor, Emergency
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
