Toyota Passo Sette

2008-12 → 2012-03 · chassis M502E,M512E · catalogue 119120 · Japan

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

11 part groups · 2 illustrations

Illustrations

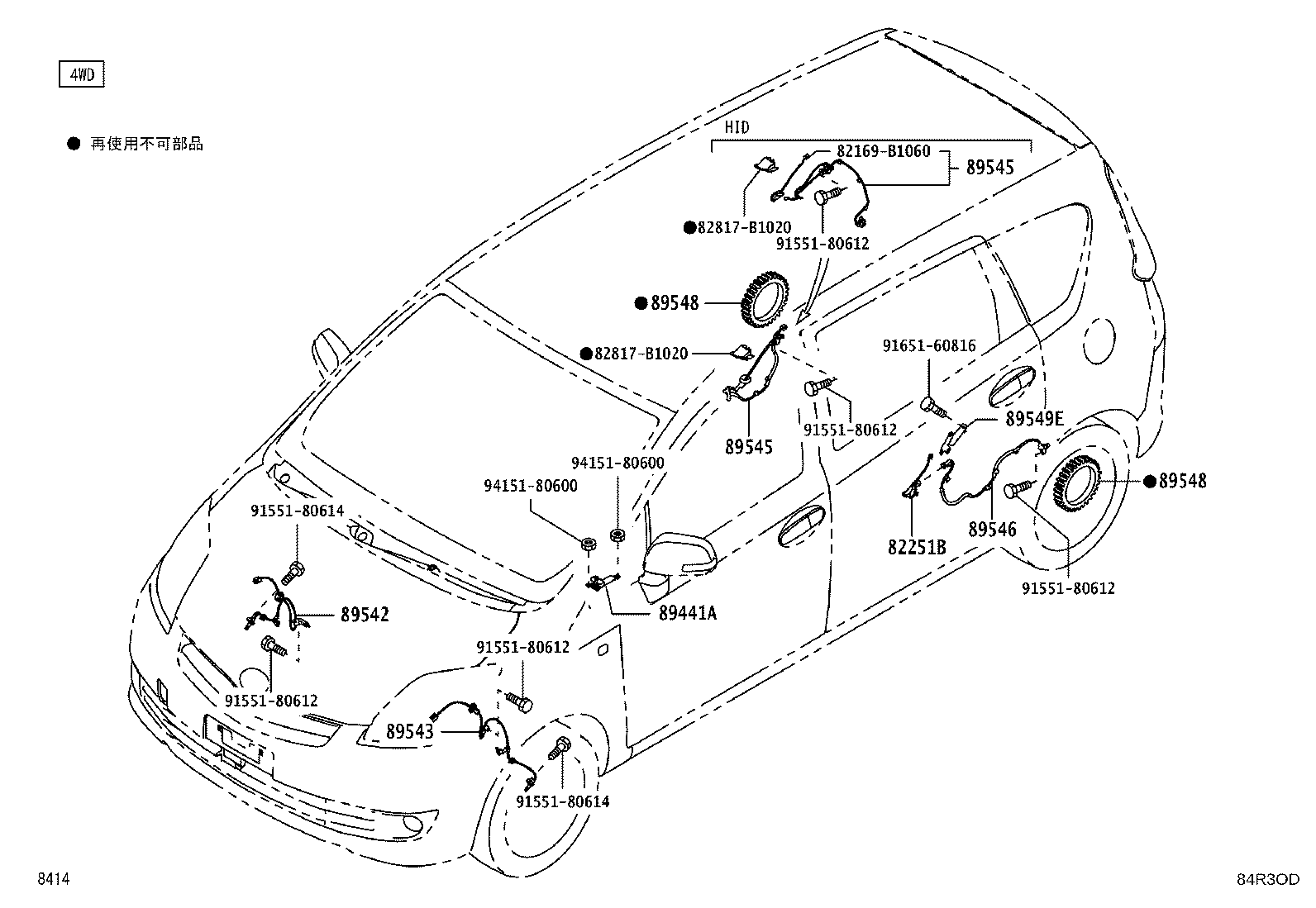

Figure 84R3OC 84R3OC 2008-12 → — Figure 84R3OD 84R3OD 2008-12 → —

Part groups

PNCDescription
82251B Wire, Speed Sensor, Rear
82251D Wire, Speed Sensor, RH
82251E Wire, Speed Sensor, LH
89180 Sensor Assy, Yawrate
89441A Sensor, Deceleration
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
89548 Rotor, Skid Control Sensor
89549E Bracket, Speed Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
